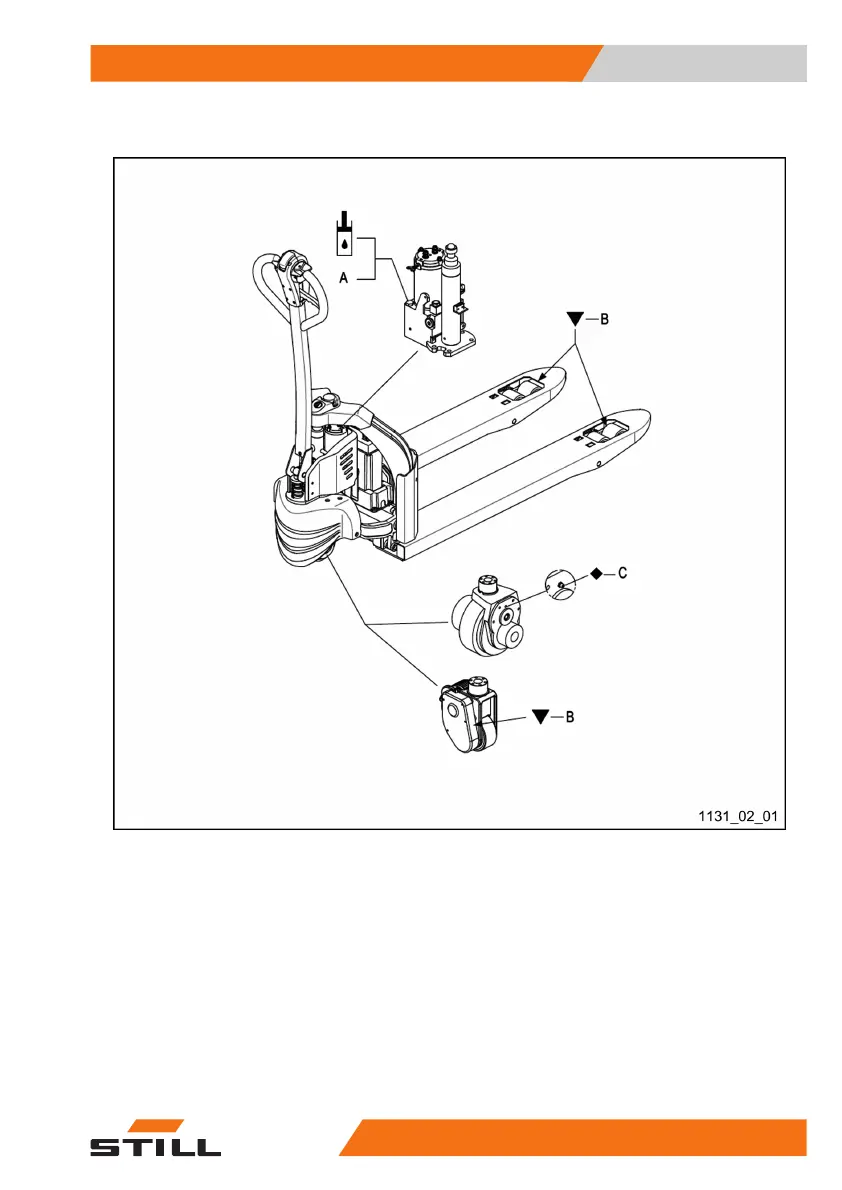

Diagram for lubrication and servicing
Hydraulic oil filler port
Lubrication surface
A
B
Gear oil filler portC
Maintenance
5
Inspection and maintenance
875001 801 1505 EN - 12/2019
