Transporting the truck
CAUTION
When transporting the truck, check that it is properly
supported on wooden blocks and correctly tied with
rope.

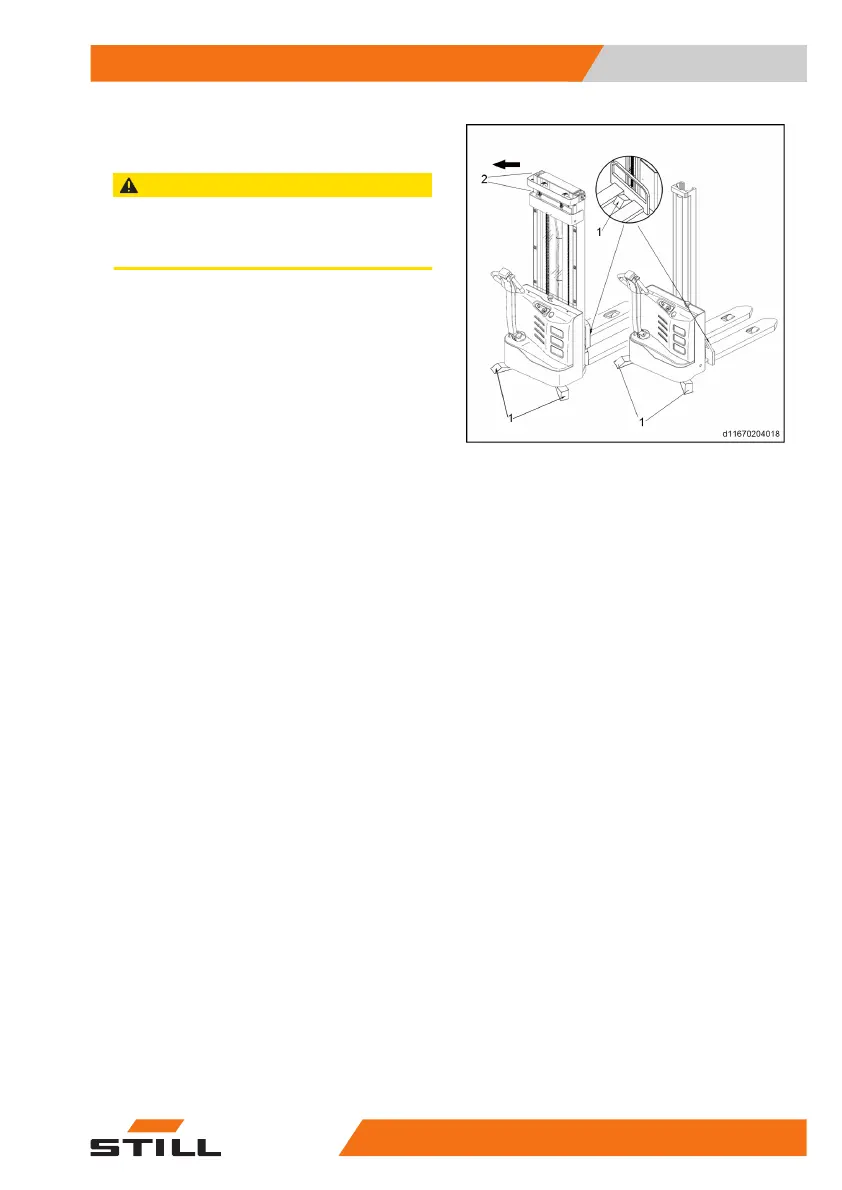

Single-column mast tie points and posi-
tion
– Lower the fork arms to the lowest position.
– Use wooden chocks (1) to secure the front
and rear of the vehicle.
Standard mast tie points and position
– Lower the fork arms to the lowest position.
– Use wooden chocks (1) to secure the front
and rear of the vehicle.
– Pass the tensioner through the inner and
outer masts and secure the masts to the
upper fixing points of the vehicle, as indica-
ted by position (2) in the figure. Tighten by
pulling in the direction of the arrow.
Operation
4
Transporting the truck
6750028011505 EN - 03/2022 - 06
