Still ECV 10 C - Load Wheels - Removal and Installation

2
Fault
Drive wheel
cracking or
degumming
Cause Improper use

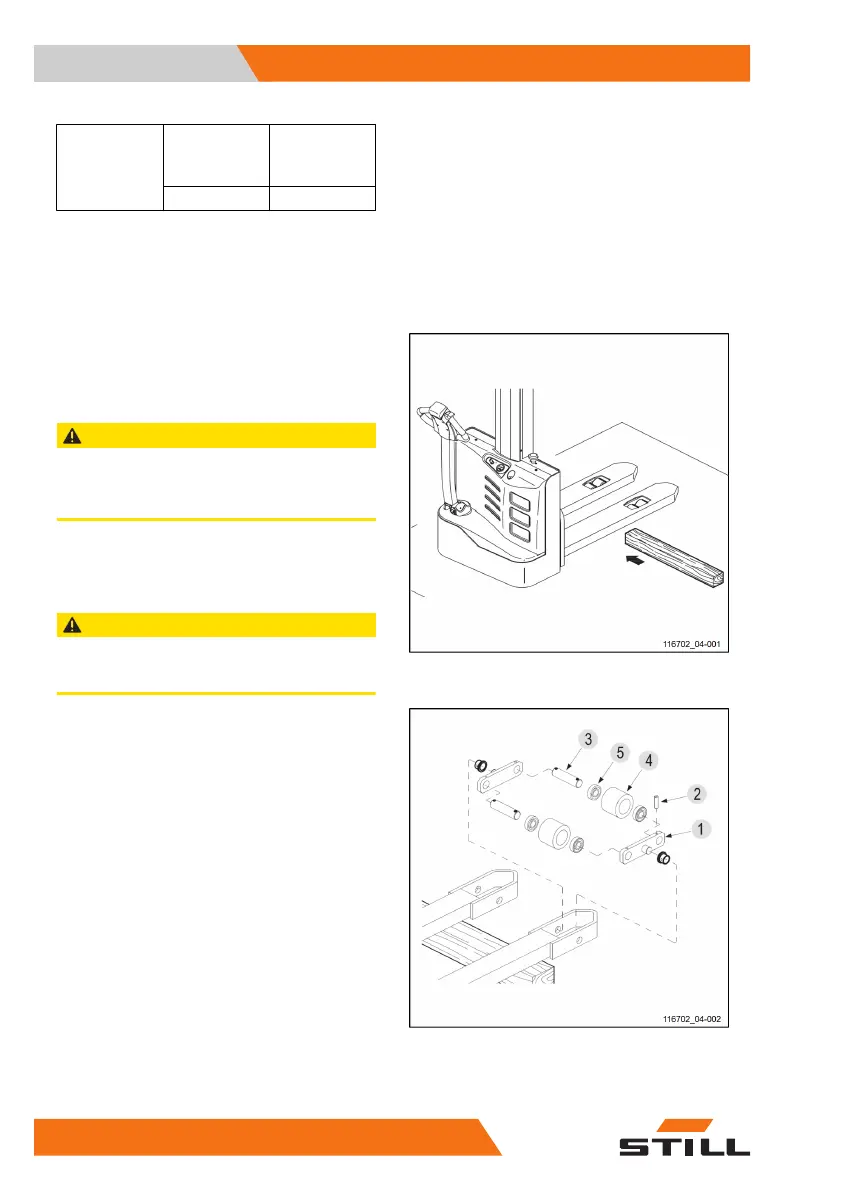

Load Wheels - Removal and In-
stallation
Removal
– Lift the vehicle carefully with lifting equip-
ment through the lifting holes at back;
CAUTION
Make sure the lifting equipment is solid and secure,
and the load capacity should be greater than the total
weight of the vehicle.
– Place a wooden wedge under the chassis
near load wheel, make the load wheel off
the ground;
CAUTION
When replacing wheels, be sure that the truck won't
tilt.
– Remove the coiled elastic cylindrical pin(2)
within the wheel bridge(1) with an ejector
pin of 4mm in diameter;
– Turn the wheel bridge to vertical direction,
knock out the wheel pin shaft(3) from side,
and remove the load wheel and bearing as-
sembly;
– Remove the bearing(5) of load wheel(4)
with hammer and jacking equipment.
Installation and Commissioning
– Install according to the reverse order of re-
moval;
– Run the truck to see if the load wheel is
functioning properly. If there is blocking or
noise, please install again.


Maintenance
5
Tyre operation
82 50028011505 EN - 03/2022 - 06
