Still ECV 10 C - Caster - Removal and Installation

CAUTION
When installing, please apply appropriate amount of
grease on the axle fi rst.
CAUTION
Quality of tyres directly affects the stability and driv-
ing performance of the device. If you need to replace
the factory-fitted tyres, please use original spare
parts provided by the equipment manufacturer to
reach the original design performance of the truck.
Caster - Removal and Installa-
tion
Removal
– Remove the cover;
– Lift the vehicle carefully with lifting equip-
ment through the lifting holes at front and
back;
WARNING
Make sure the lifting equipment is solid and secure,
and the load capacity should be greater than the total
weight of the vehicle. Lifting height of not more than
300mm, to prevent the hazards to the maintenance
personnel working under the vehicle for caster re-
moval and installation.

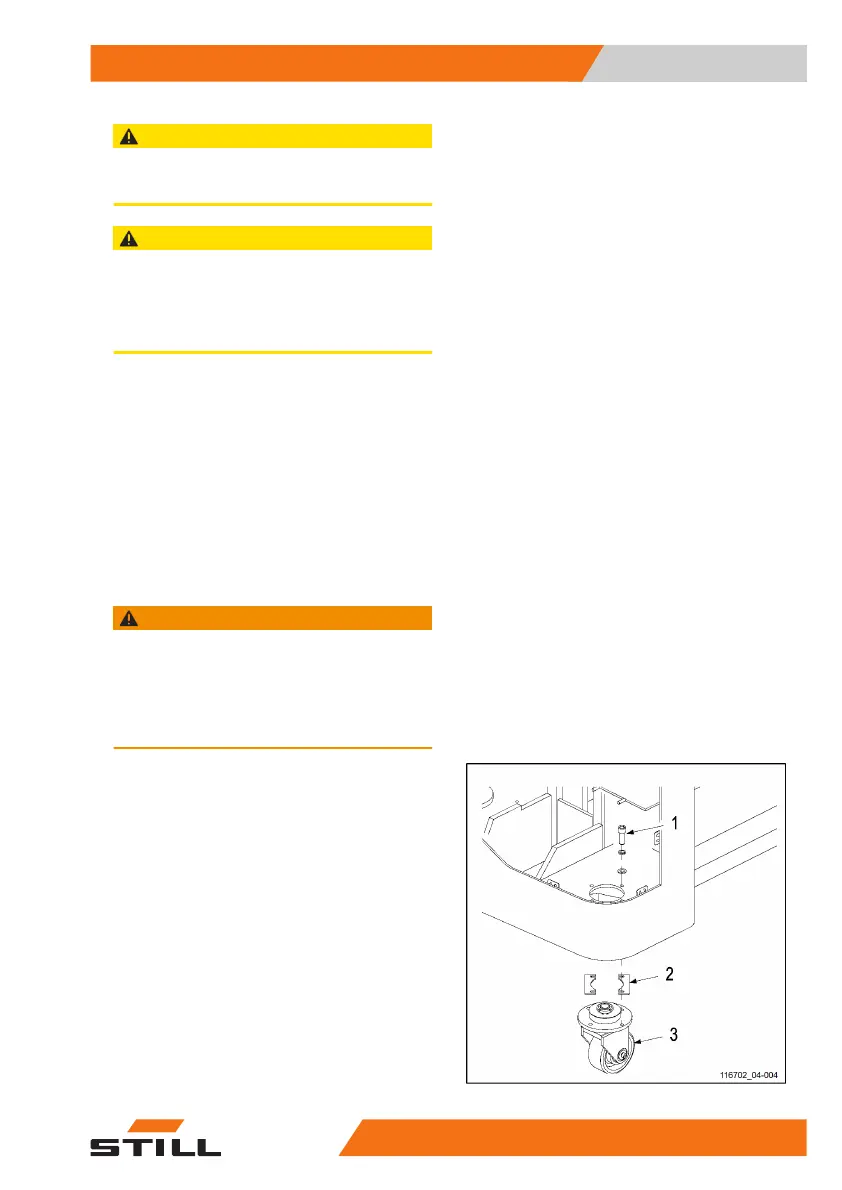

– Unscrew four screws(1), then remove the
caster(3) and adjustment shim(2).
Installation
– Install according to the reverse order of re-
moval.
Adjustment
– Park the truck with replacement completed
on level ground to see if the casters and
drive wheel can both be in contact with the
ground;
– When the truck is running, check if the three
wheels are functioning properly.

Maintenance
5
Tyre operation
8350028011505 EN - 03/2022 - 06
