Stollmann BlueMod+B20 - 9 Startup Timing

BlueMod+B20/BT2.1
User Guide
Release r03 www.stollmann.de Page 32 of 38
/Reset
LED1
/DCD
/DSR
/RI
130ms 416 ms
Firmware Startup
Initializing
Command ready
0 , 55 s
/RTS
9 Startup Timing

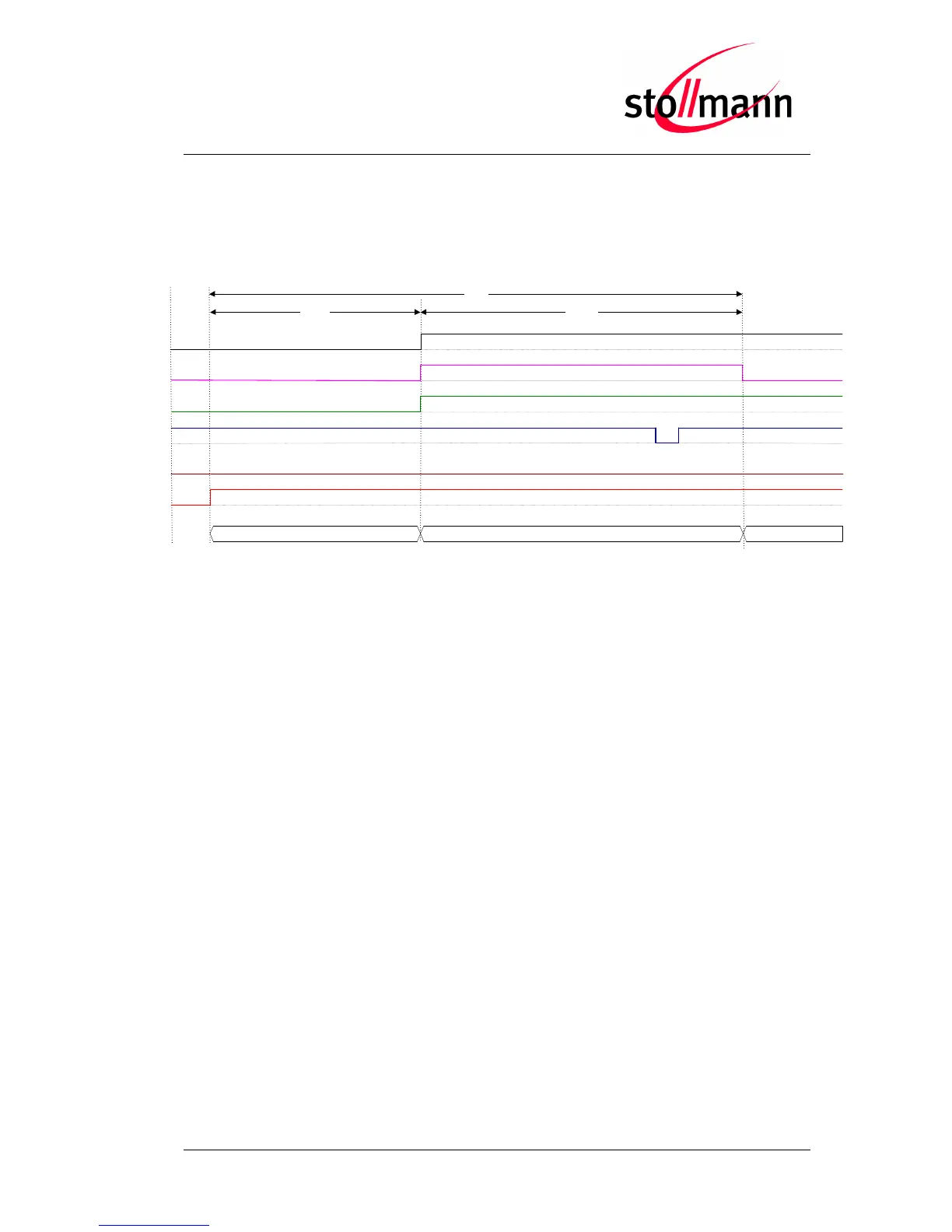

The following diagram shows the startup timing of the BlueMod+B20 based on
firmware version 3.100.
The firmware is command ready 0.55s after the reset has been released.
For further information regarding startup timing of other firmware versions please
contact stollmann.
