Stonex S800 GNSS Receiver - User Manual - Ver.1-Rev.0 18
7.4 Management
In Management, it provides online update, device register, password
modification, device disk formatting, self-test, restore factory settings and
reset as illustrated in Figure 7-4.

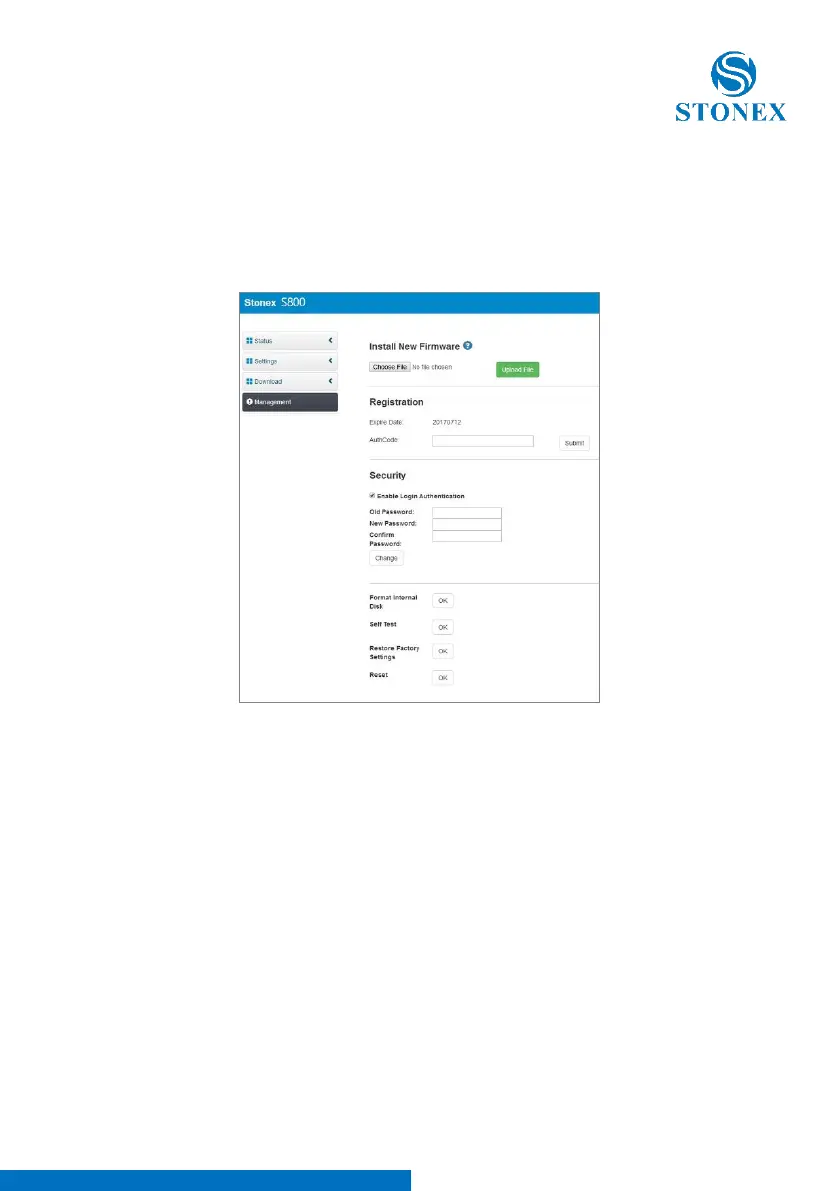

Figure 7-4: Management
7.4.1 Device Register
The register code consists of 32 digits and letters. You can register the device
via WEB UI. The detailed steps are shown as followed:
In management page, you can see “registration”. Input register code and
click submit, and then registration is done. After registration, you can check
the expiration time of current registration in the page.
You can also register device via controller. Open SurPad software on the
handheld and connect the receiver. Click “About” - “Register instrument”,
then input code and registration is done.
