4.1.2 The bottom of Receiver
At the bottom of the receiver is labelled system-unit serial number. The
bottom interfaces are illustrated in Figure 4-2, with covers for dust and water
prevention.

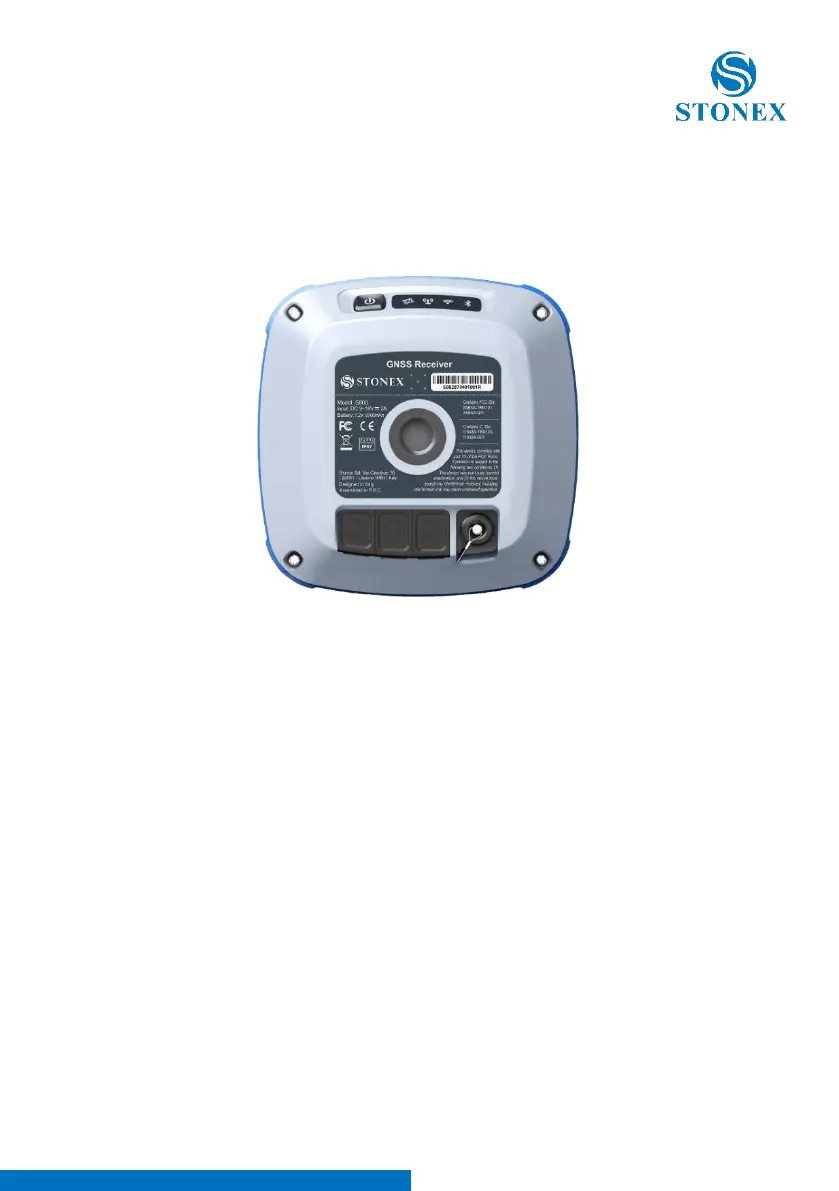

Figure 4-2 Receiver bottom
TNC interface: connect internal radio antenna.
2-pin LEMO port: charge for internal battery, connect adaptor.
5-pin LEMO port: connect external power supply and external radio
7-pin LEMO port: connect PC or handheld, USB+serial port
