23
Issued: 24.02.2005
STRIDER MX

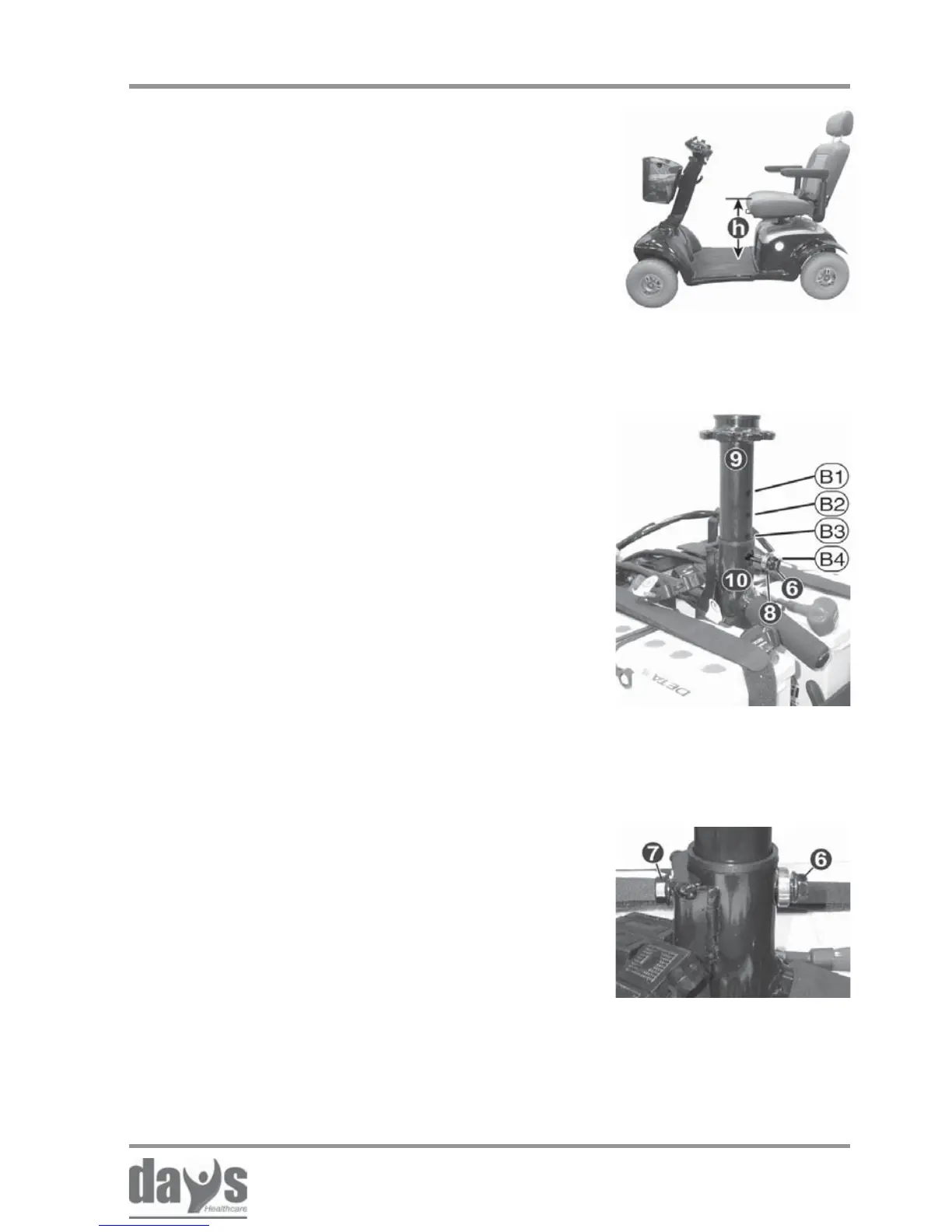

The seat height (h) is adjusted using the
four holes (B1 - B4) in the seat support.
Pull the seat support (9) out as far as
the required height until the correct
hole (B1-B4) appears in the seat tube
hole (10).
Push the clamping bolts (6) with the
form shim (8) into the seat tube from
the front.
➨
➨
Adjusting the seat
support
tighten the clamping
bolt
Adjusting the seat height
Screw the self-locking nut (7) and tighten
it (size 12 mm). While doing this, prevent
the clamping bolt (6) from turning using a
second ring spanner (size 12 mm).
➨
