Stryker 1550 Service Manual
4
of 1
of 1 rating
132 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
11
7
Optional C
−

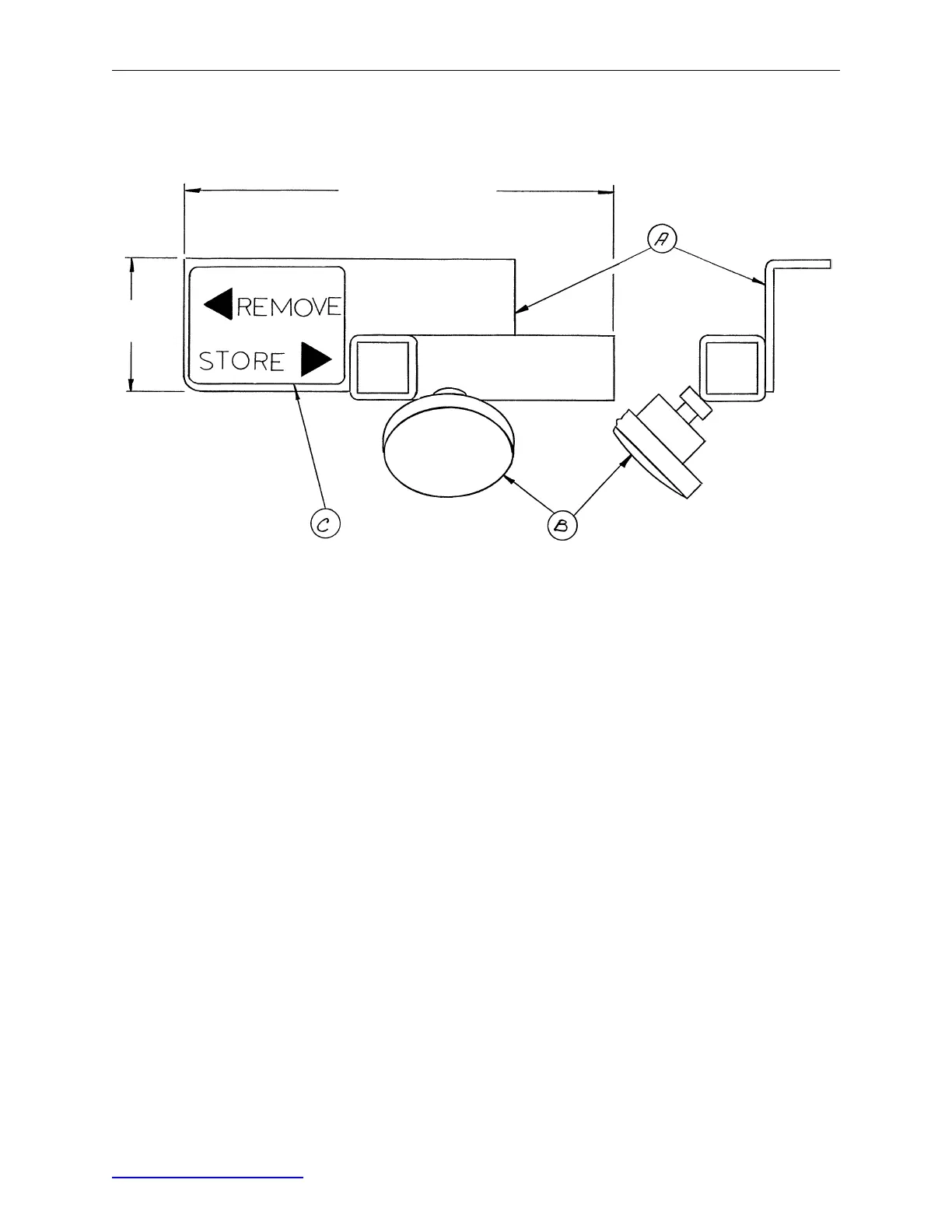

Spine Storage Bracket Assembly
6.5” (Ref.)
2”
(Ref.)
Assembly part number 1010
−
70
−
19 (reference only)
(reference
page 1
1
5)
Item
Part No.
Part
Name
Qty
.
A
1010
−
70
−
20
Storage Bracket Weldment
1
B
1010
−
70
−
45
Knob
1
C
1010
−
70
−
23
Storage Label
1
Return to Table of Contents
118
120
Table of Contents
Table of Contents
3
Introduction
5
Specifications
5
Stretcher Symbols
6
Cleaning
7
Checklist
8
Control Board Diagram
10
Replacement Parts
11
Service Information
13
Static Discharge Precautions
13
Caster Cover Installation and Removal
14
Caster Removal
14
Brake Cam Replacement
15
Brake Ring Replacement
15
Fifth Wheel Replacement
16
Pedal Linkage Adjustment
16
Brake/Steer Gear Replacement
17
Uni−Pedal Replacement
17
Jack Replacement, Non Electric Lift Base
18
Hydraulic Check Valve Replacement − Non Electric Lift Base
19
Jack/Motor Replacement, Electric Lift Base
21
Jack Assembly Torque Specification
22
Checking Hydraulic Fluid Level
22
Jack Descent Rate Adjustment
23
Removal of Excess Air (Vacuum) from the Hydraulic System
23
Hydraulic Pressure Hose Replacement
24
Base Lubrication Points
25
Brake Adjustment
26
Fowler Lift Motor/Actuator Replacement
27
Gatch Lift Motor/Actuator Replacement
29
Fowler and Knee Gatch Motor/Actuator Adjustment
30
Fowler and Knee Gatch Limit Switch Adjustment
30
Logic Circuit Board Replacement
31
Siderail Latch Adjustment
31
Patient Control Lockout Switch Replacement
32
Patient Control Lockout LED Replacement
32
Siderail Patient Control Replacement
33
Electric Lift Base Assembly
47
Power Cord Assembly
63
Jack/Pump Motor Assembly
64
Brake Adjuster Assembly
71
Brake Cam Assembly
72
Pump Pedal Assembly
73
Optional Uni−Lower Pedal Assembly
78
Optional Dual Lowering Pedal Assembly
79
Optional Side Control Base Assembly
80
Base Labeling Assembly
82
Litter Assembly
84
Siderail Assembly
91
Siderail Component Housing Assembly
92
Non−Quick Drop Fowler and Gatch Assembly
93
Crankscrew Assemblies, Non−Quick Drop
94
Quick Drop Assembly, Fowler Only
96
Fowler/Gatch Quick Drop Assembly
98
Push Handle Assembly
100
Removable I.V. Pole Assembly
102
Optional 2−Stage I.V. Pole Assembly
103
Optional I.V. Pole Latch Assembly
105
Optional 3−Stage I.V. Mounting Assembly
106
Optional Upright Oxygen Bottle Holder Assembly
109
Foot Board/Chartholder Assembly
110
Optional Fowler X−Ray Cassette Assembly
111
Optional Defibrillator Tray Assembly
113
Defib Tray/Foot Extender/Foot Board Assembly
114
Serving Tray Assembly
115
Foot Board/Serving Tray Holder
116
Optional C−Spine Cassette Holder Assembly
117
Optional C−Spine Support Pole Assembly
118
Optional O2 Bottle Retainer Assembly
120
Optional Scale System
121
Mattress and Siderail Pads
129
Limited Warranty
130
Supplemental Warranty Coverage
130
Return Authorization
131
Freight Damage Claims
131
