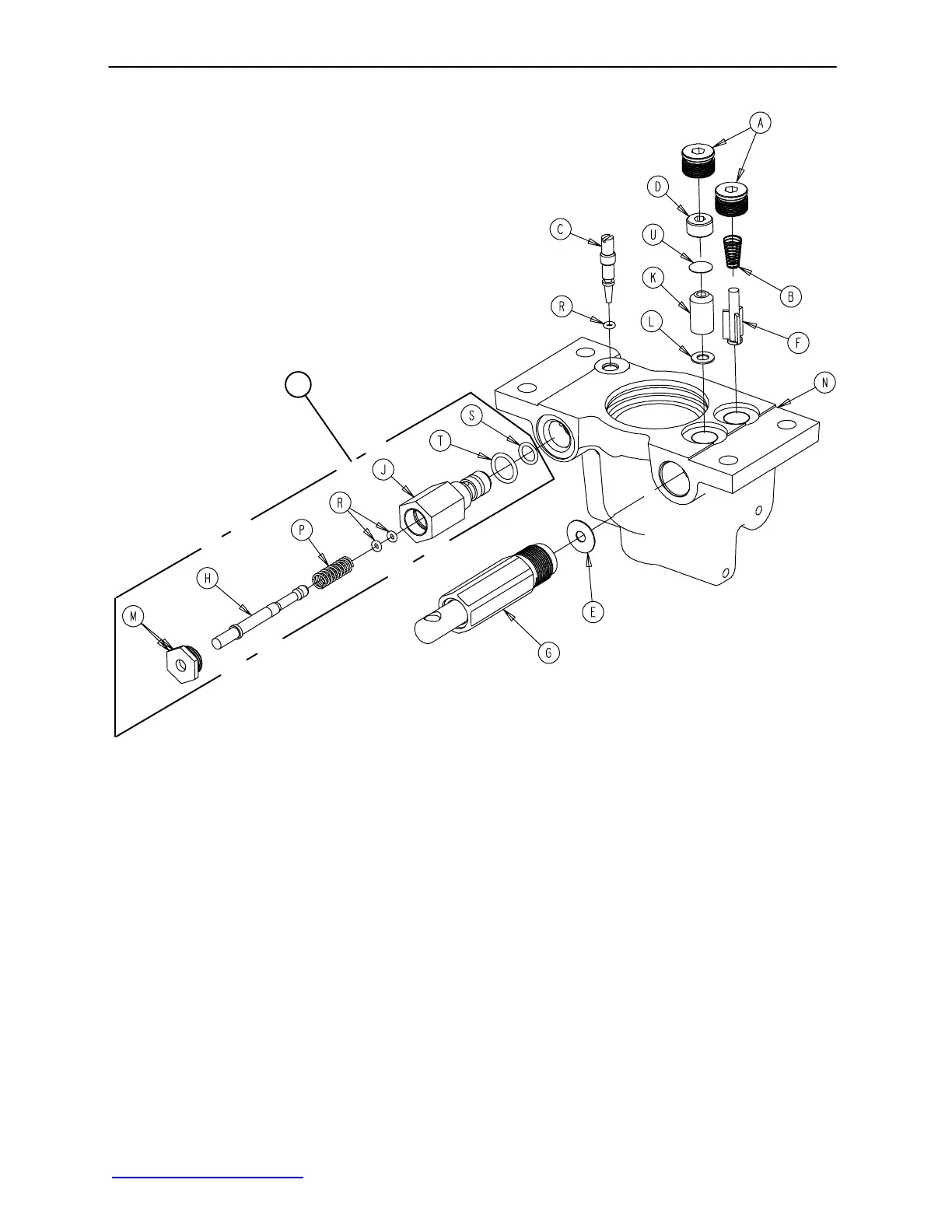

Jack Base Assembly
42
Assembly part number 1231−70−5 (reference only)
W
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A48−147 Base Plug 2 L 926−20−154 Seal 1
B 390−2−134 Conical Comp. Spring 1 M 1210−170−13 Base Plug 1
C 715−1−307 Needle Valve 1 N 1210−270−12 Jack Base 1
D 715−1−309 Valve Plug 1 P 38−311 Compression Spring 1
E 715−1−329 Pump Seal 1 R 45−6O−Ring 3
F 715−1−341 Poppet 1 S 45−966 O−Ring 1
G(page 68) Pump Piston Assembly 1 T 45−967 O−Ring 1
H 715−270−1 Pin 1 U 715−1−321 Check Valve Screen 1
J 715−270−2 Pin Housing 1 W 715−270−100 Relief Valve Assembly 1
K 926−20−153 Check Valve 1
