Stryker 1550 Service Manual

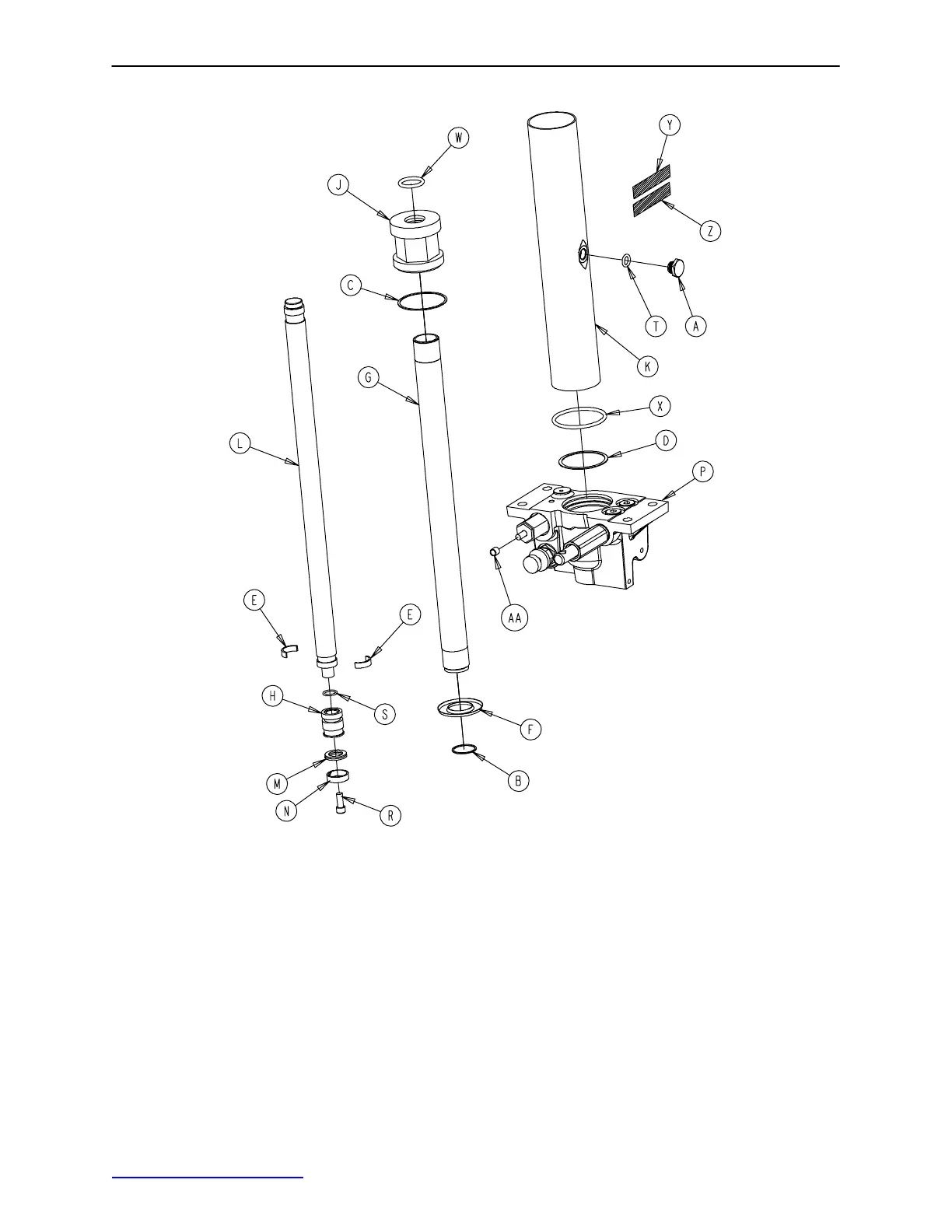

1231−70−210 Constant Descent Jack − Non−Electric Lift Base
43
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 388−100−38 Plug 1 M 926−20−161 Parker Packing 1
B 390−1−238 Actuator Gasket 1 N 926−20−162 Wear Ring 1
C 390−1−243 Gasket 1 P (page 44) Jack Base Ass’y 1
D 390−1−244 Base Gasket 1 R 4−14 Soc. Hd. Cap Screw 1
E 390−2−139 Retaining Ring 2 S 45−14 O−Ring 1
F 715−1−320 Jack Screen 1 T 45−110 O−Ring 1
G 715−1−323 Actuator Cylinder 1 W 45−904 O−Ring 1
H 715−1−331 Piston End 1 X 45−978 O−Ring 1
J 715−1−340 Jack Cap Assembly 1 Y 1231−70−211 Label 1
K 715−1−422 Reservoir 1 Z 921−1−252 Serial Number Label 1
L 715−1−325 Actuator Rod 1 AA 715−1−333 Rel. Rod Stop Sleeve 1
