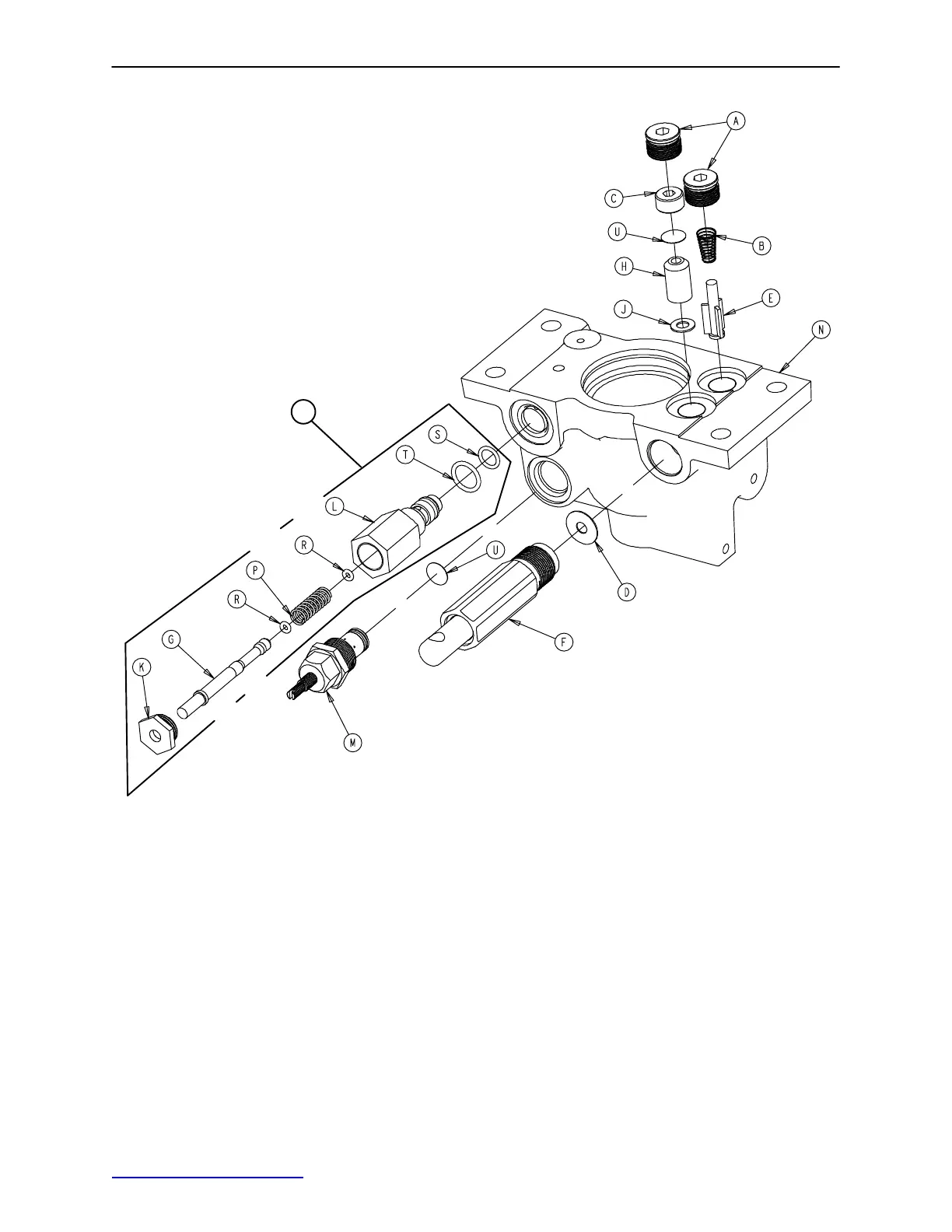

Constant Flow Jack Base Assembly
44
Assembly part number 5050−370−100 (reference only)
W
Item Part No. Part Name Qty. Item Part No, Part Name Qty.
A48−147 Base Plug 2 L 2025−75−87 Pin Housing 1
B 390−2−134 Conical Comp. Spring 1 M 5050−170−50 Adj. P.C. Valve Cartridge 1
C 715−1−309 Valve Plug 1 N 5050−370−110 Jack Base 1
D 715−1−329 Pump Seal 1 P 38−311 Compression Spring 1
E 715−1−341 Poppet 1 R 45−6O−Ring 2
F(page 68) Pump Piston Assembly 1 S 45−966 O−Ring 1
G 715−270−1 Pin 1 T 45−967 O−Ring 1
H 926−20−153 Check Valve 1 U 715−1−321 Check Valve Screen 1
J 926−20−154 Seal 1 W 2025−700−26 Relief Valve Assembly 1
K 1210−170−13 Base Plug 1
