Electric Lift Base Assembly
47
HEAD END

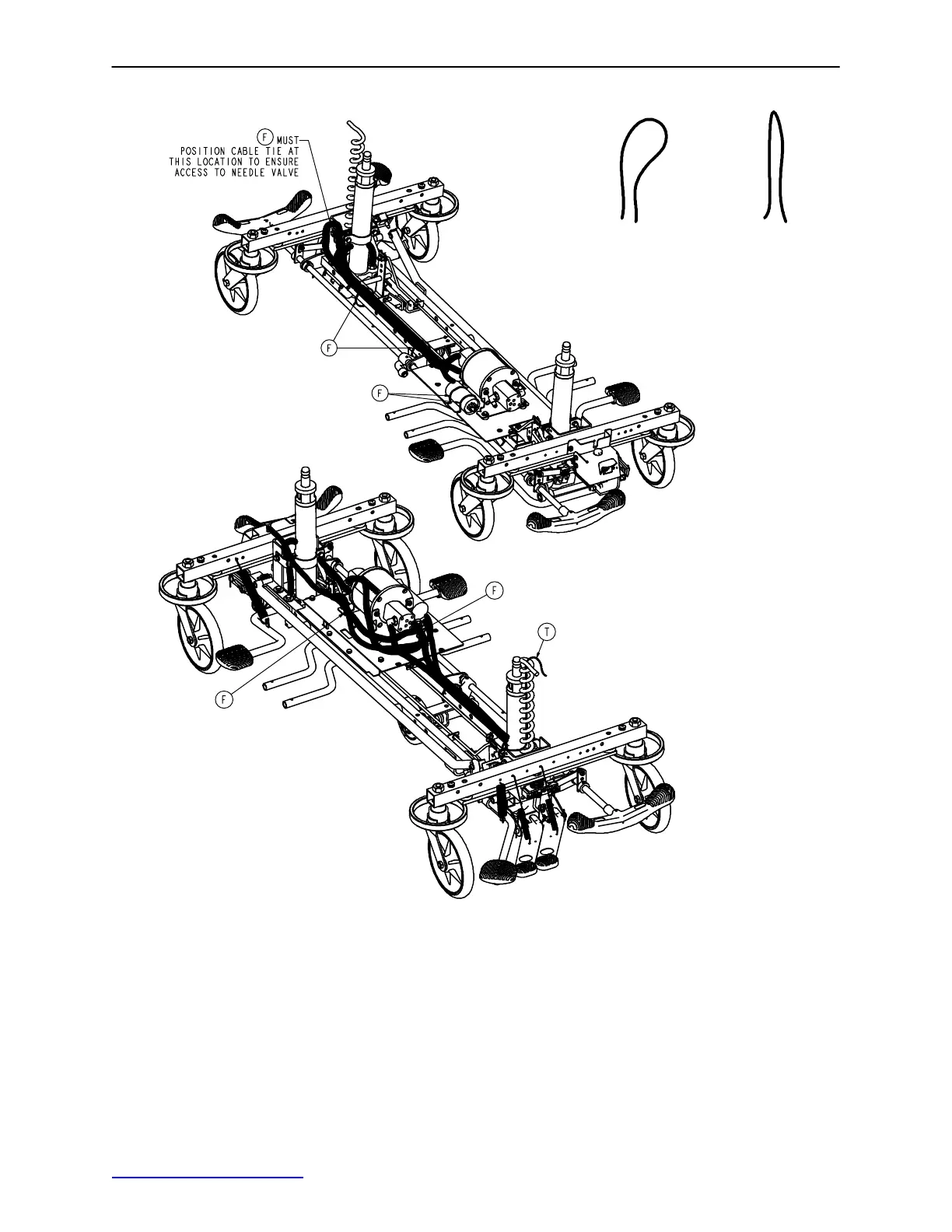

HYDRAULIC HOSE LAYOUT AND CABLE TIE AREAS
ACCEPTABLE
LOOPING
UNACCEPTABLE
LOOPING
OF HOSES
OF HOSES
HEAD END
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A3−221 Hex Washer Hd. Screw 12 K 1550−201−101 Soc. Box Brkt. w/Weld Nuts 1
B4−126 Hex Socket Bolt 2 L 1550−201−102 Socket Box Cover 1
C13−38 External Tooth Lock Washer 6 M 1550−475−89 Pump/Motor Top Cover 1
D16−23 Hex Nut 2 N 1550−385−10 Wire Harness w/Socket 1
E30−27 Strain Relief 1 P (page 48−52) Base Assembly 1
F59−75 Cable Tie 7 R 3000−300−58 Lift Switch 1
G59−140 Capacitor 1 S 3000−300−604 Motor Warning Label 1
H 1550−185−20 Lift Option Umbilical Cord 1 T 1550−85−23 Lift Switch Cable Assembly 1
J 1550−90−13 Electric Shock Label 1
