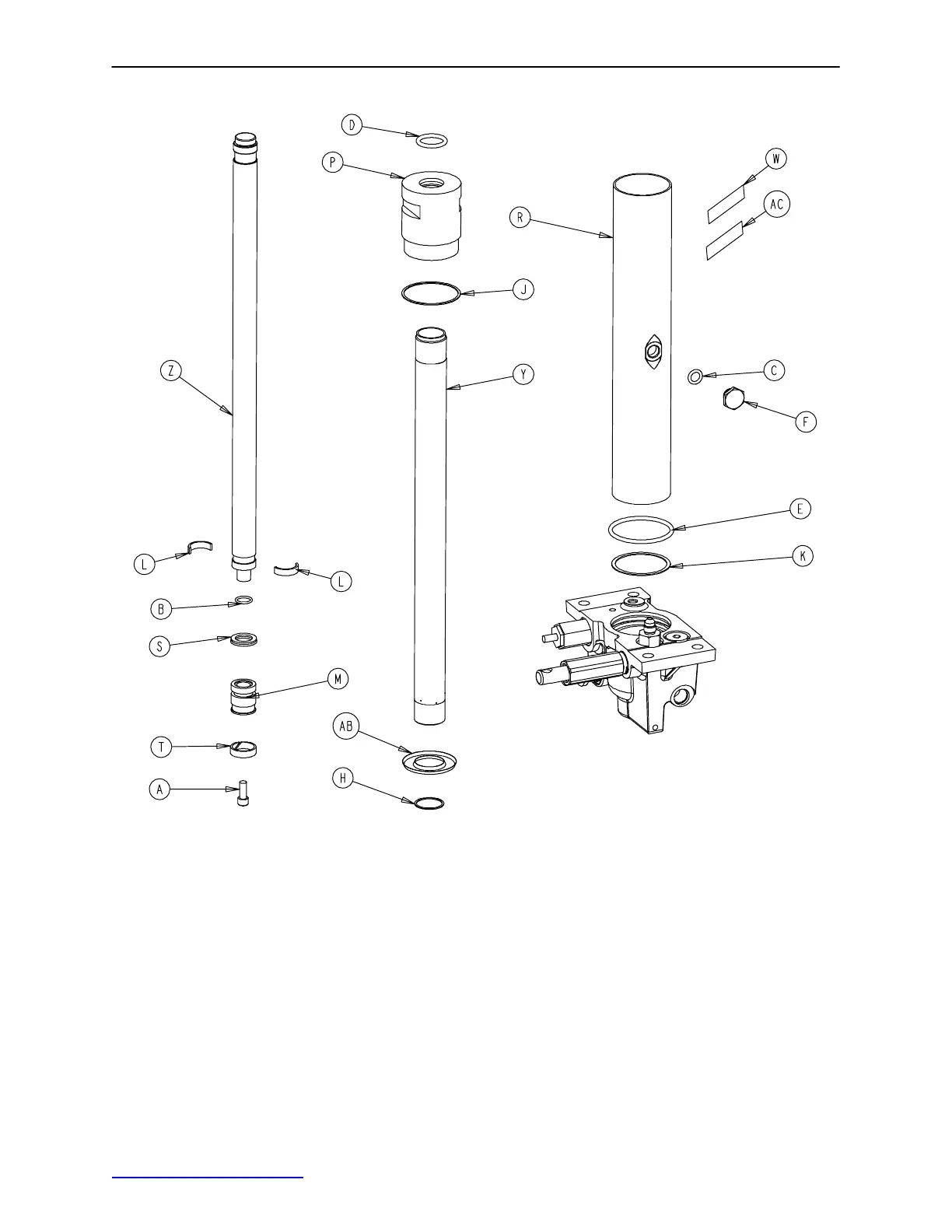

1550−270−210 Constant Flow Jack − Electric Lift Base
66
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A4−14 Soc. Hd. Cap Screw 1 P 1550−70−6 Jack Cap Assembly 1
B45−14 O−Ring 1 R 715−1−422 Reservoir 1
C45−110 O−Ring 1 S 926−20−161 Parker Packing 1
D45−904 O−Ring 1 T 926−20−162 Wear Ring 1
E45−978 O−Ring 1 W 1550−90−111 Label 1
F 388−100−38 Plug 1 Y 1550−70−4 Actuator Cylinder 1
H 390−1−238 Actuator Gasket 1 Z 715−101−325 Actuator 1
J 390−1−243 Gasket 1 AA (page 67) Jack Base Ass’y 1
K 390−1−244 Base Gasket 1 AB 715−1−320 Jack Screen 1
L 390−2−139 Retaining Ring 2 AC 921−1−252 Serial Number Label 1
M 715−1−331 Piston End 1
