Stryker 1550 - Page 67

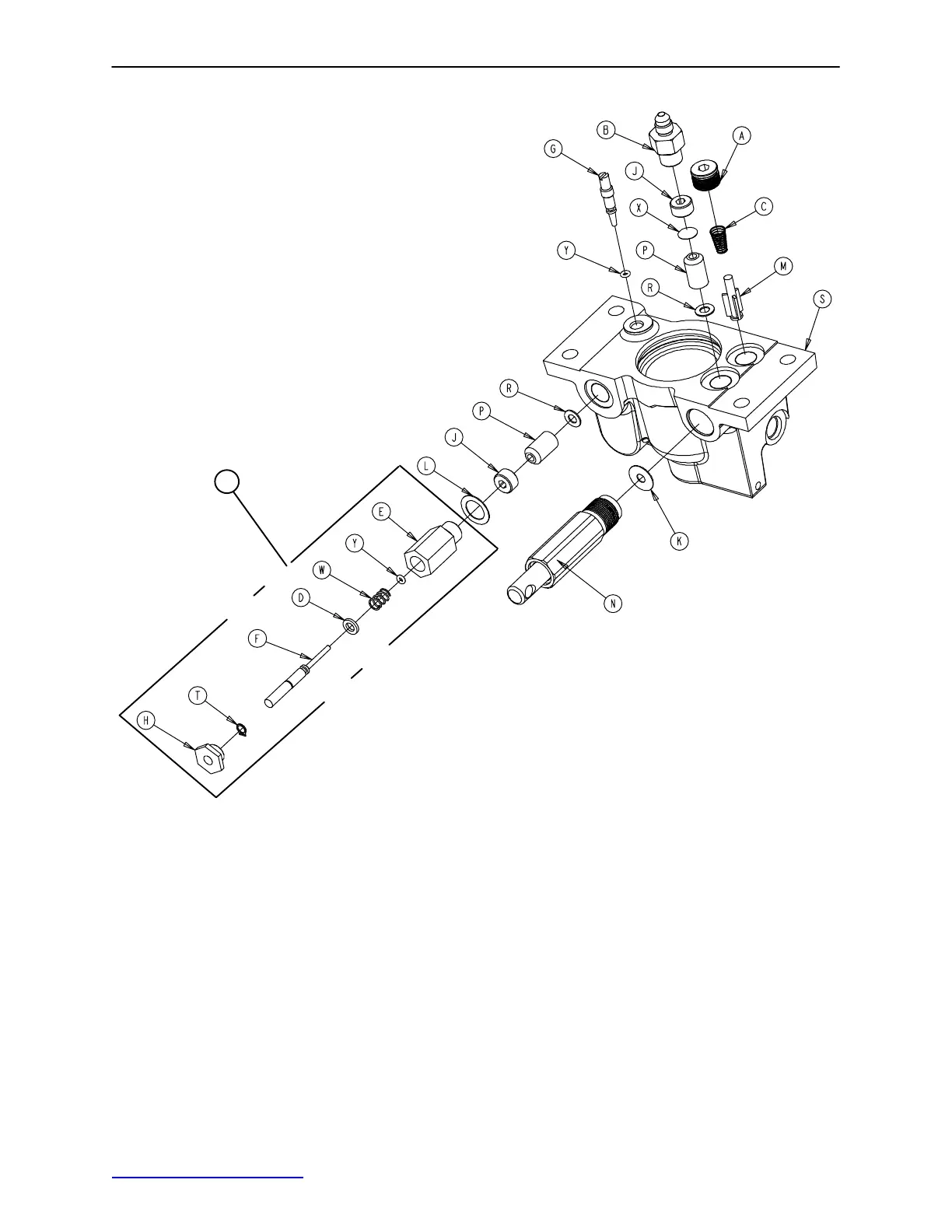

Electric Lift Jack Base Assembly
65
Z
Assembly part number 1550−270−14 (reference only)
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A48−147 Hex Hd. O−Ring Plug 1 M 715−1−341 Poppet 1
B48−150 Check Valve 1 N (page 68) Pump Piston Ass’y 1
C 390−2−134 Compression Spring 1 P 926−20−153 Check Valve 2
D 390−2−176 Washer 1 R 926−20−154 Seal 2
E 715−1−305 Pin Housing 1 S 1550−70−121 Jack Base, Machined 1
F 715−1−306 Pin 1 T 28−8 Snap Ring 1
G 715−1−307 Needle Valve 1 W 38−231 Compression Spring 1
H 715−1−308 Base Plug 1 X 715−1−321 Check Valve Screen 1
J 715−1−309 Valve Plug 2 Y 45−6O−Ring 2
K 715−1−329 Pump Seal 1 Z 0715−100−312Valve Assembly 1
L 715−1−330 Housing Gasket 1
