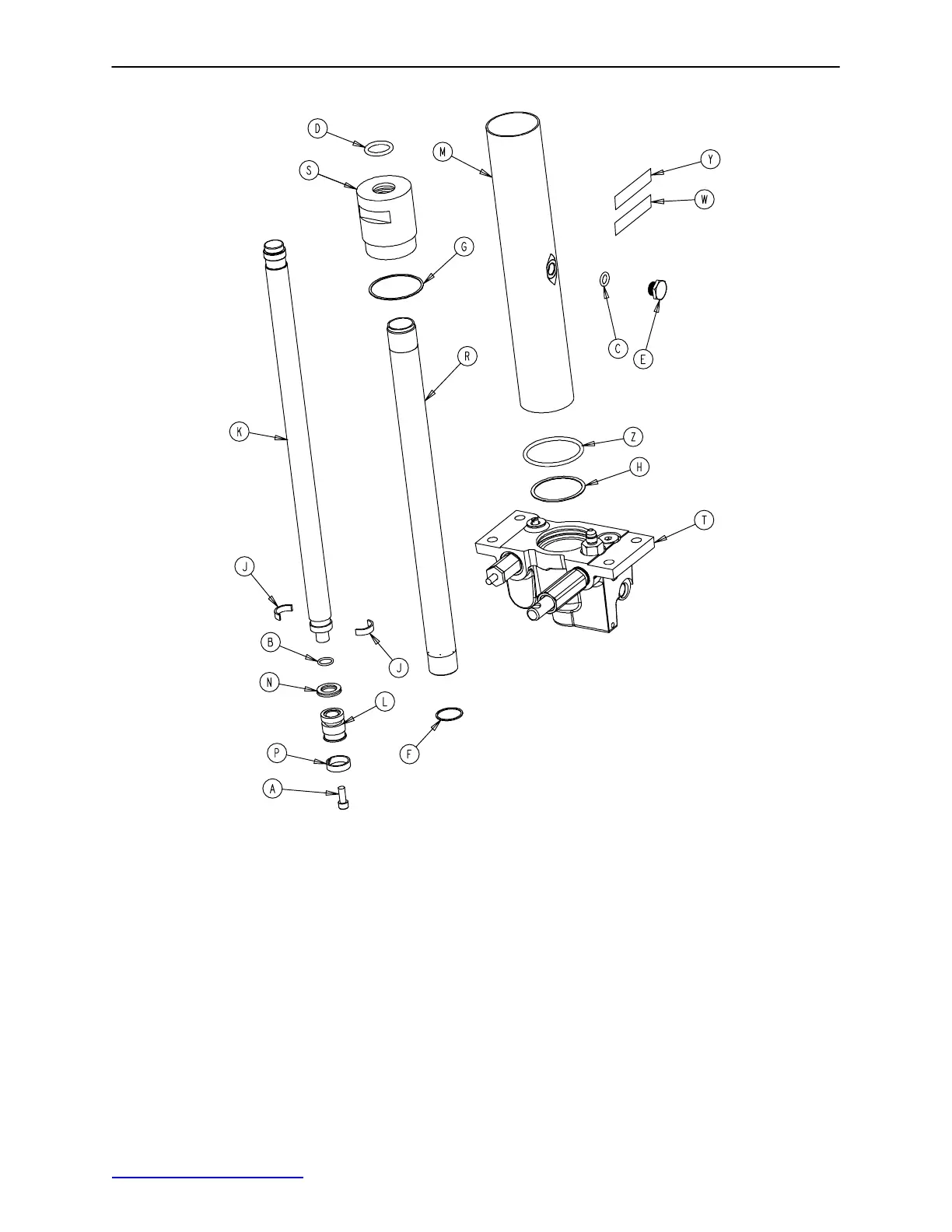

1550−270−15 Jack Assembly, Electric Lift Base
64
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A4−14 Soc. Hd. Cap Screw 1 L 715−1−331 Piston End 1
B45−14 O−Ring 1 M 715−1−422 Reservoir 1
C45−110 O−Ring 1 N 926−20−161 Parker Packing 1
D45−904 Quad Ring 1 P 926−20−162 Wear Ring 1
E 388−100−38 Plug 1 R 1550−70−4 Actuator Cylinder 1
F 390−1−238 Actuator Gasket 1 S 1550−70−6 Cap Assembly 1
G 390−1−243 Gasket 1 T (page 65) Jack Base Assembly 1
H 390−1−244 Gasket 1 U 1550−90−110 Label 1
J 390−2−139 Retaining Collar 2 V 921−1−252 Serial Number Label 1
K 715−101−325 Actuator 1 W 45−978 O−Ring 1
Z 715−100−325 Repl. Pump Piston Ass’y 1
