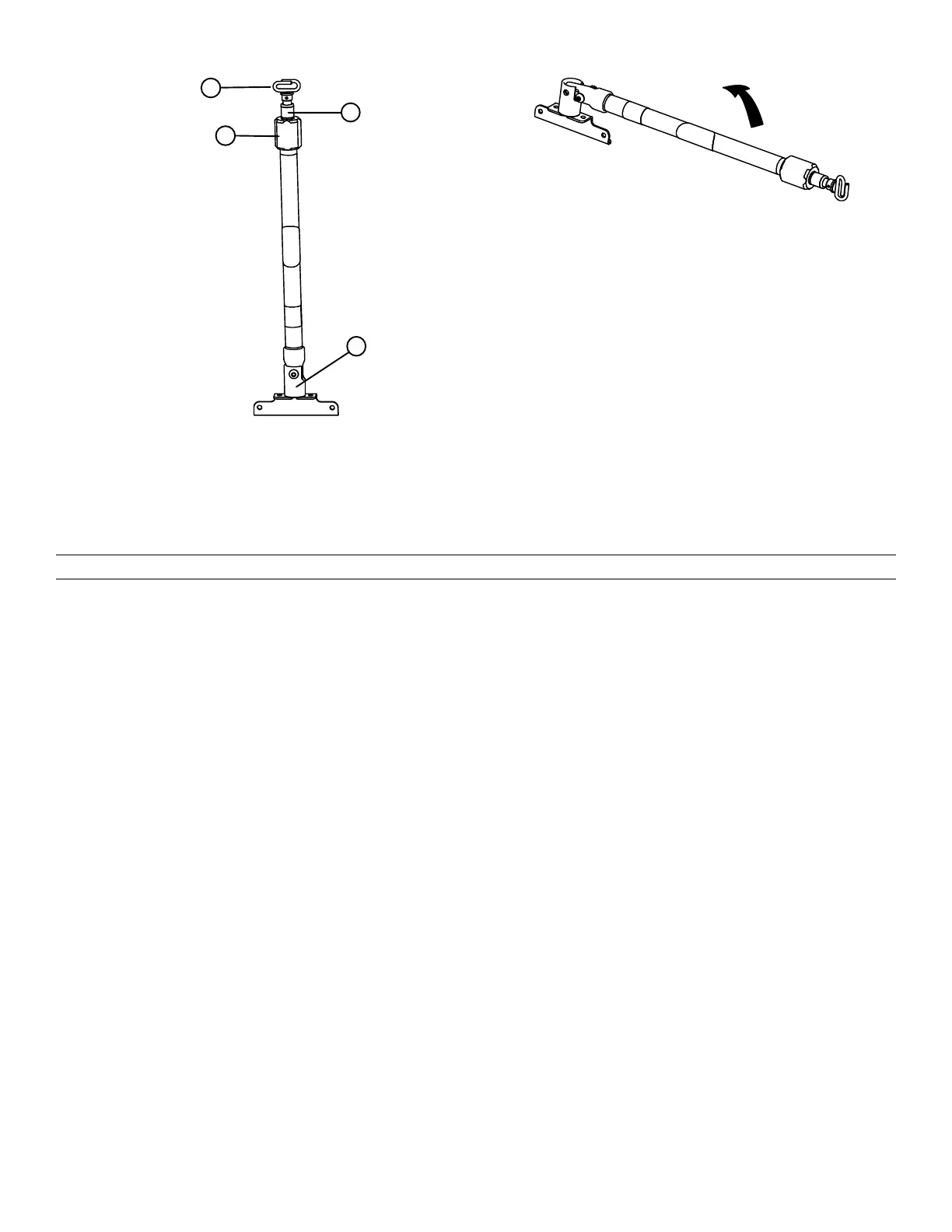

FFiigguurree 2211 –– TTwwoo--ssttaaggee IIVV ppoollee
FFiigguurree 2222 –– TTwwoo--ssttaaggee IIVV ppoollee ssttoorraaggee ppoossiittiioonn
PPoossiittiioonniinngg tthhee tthhrreeee--ssttaaggee IIVV ppoollee ooppttiioonn
CCAAUUTTIIOONN -- Do not load the IV pole above the safe working load of 40 lb (18.1 kg).
To position the IV pole (Figure 23):
1. Lift and pivot the IV pole from the storage position. Push down until the IV pole locks into the receptacle (A).
2. To raise the height of the IV pole, turn the locking collar (B) counterclockwise and pull up on the telescoping section (C).
Raise the IV pole to the desired height.
3. Turn the locking collar (B) clockwise to lock the telescoping section (C) in place.
4. For a higher IV pole, pull up on the slide section (D) until the spring clip (E) connects.
5. Hang IV bags on the IV hook (F).
6. To lower the IV pole, push in on the spring clip (E) and slide section (D) down into the telescoping section (C). Turn the
locking collar (B) counterclockwise and slide the telescoping section (C) into the bottom tube.
7. Turn the locking collar (B) clockwise to tighten.
8. Lift up and pivot the IV pole down into the storage position (Figure 24).
6082-209-001 Rev AA.3 29 EN
