Operative Technique
Alternatively, the K-Wire can be used
prior to drilling with the Solid Drill.
Place a second Recon K-Wire into the
K-Wire Inserter and attach it to the
T-Handle or power tool. The K-Wire
is then advanced through the K-Wire
Sleeve until it reaches the subchondral
bone of the femoral head.
Warning:
CorrectplacementoftheK-Wire
tip in subchondral bone must be
checked with image intensifier in
bothA/PandM/Lviews.
The required length of the Lag Screw
is measured using the Recon Lag
Screw Gauge.
Note:
Before starting to measure, ensure
that the Tissue Protection Sleeve
andK-WireSleeveassemblyis
firmly pressed against the lateral
cortex of the femur (Fig. 32b).
Take the Recon Lag Screw Gauge and
place it directly under the K-Wire
and against the K-Wire Sleeve (Fig.
32c). The correct Lag Screw length
corresponds to the measurement
indicated at the end of the K-Wire on
the Lag Screw Gauge.
After the measurement, remove the
K-Wire and drill the channel with the
Solid Stepdrill according to the Solid
Stepdrill technique described on
page 22.

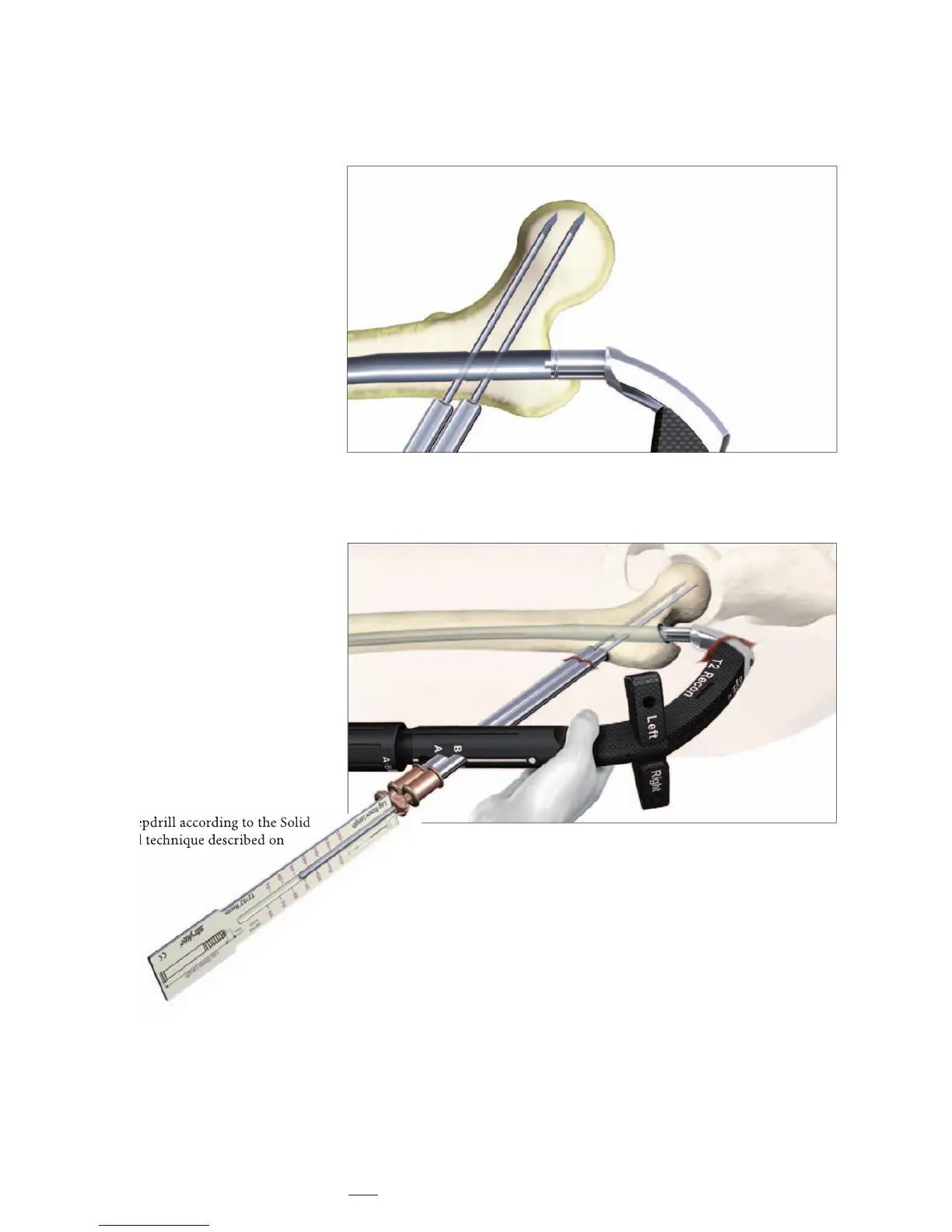

Fig. 32b
Fig. 32c
Solid Stepdrill according to the Solid
Stepdrill technique described on
26
