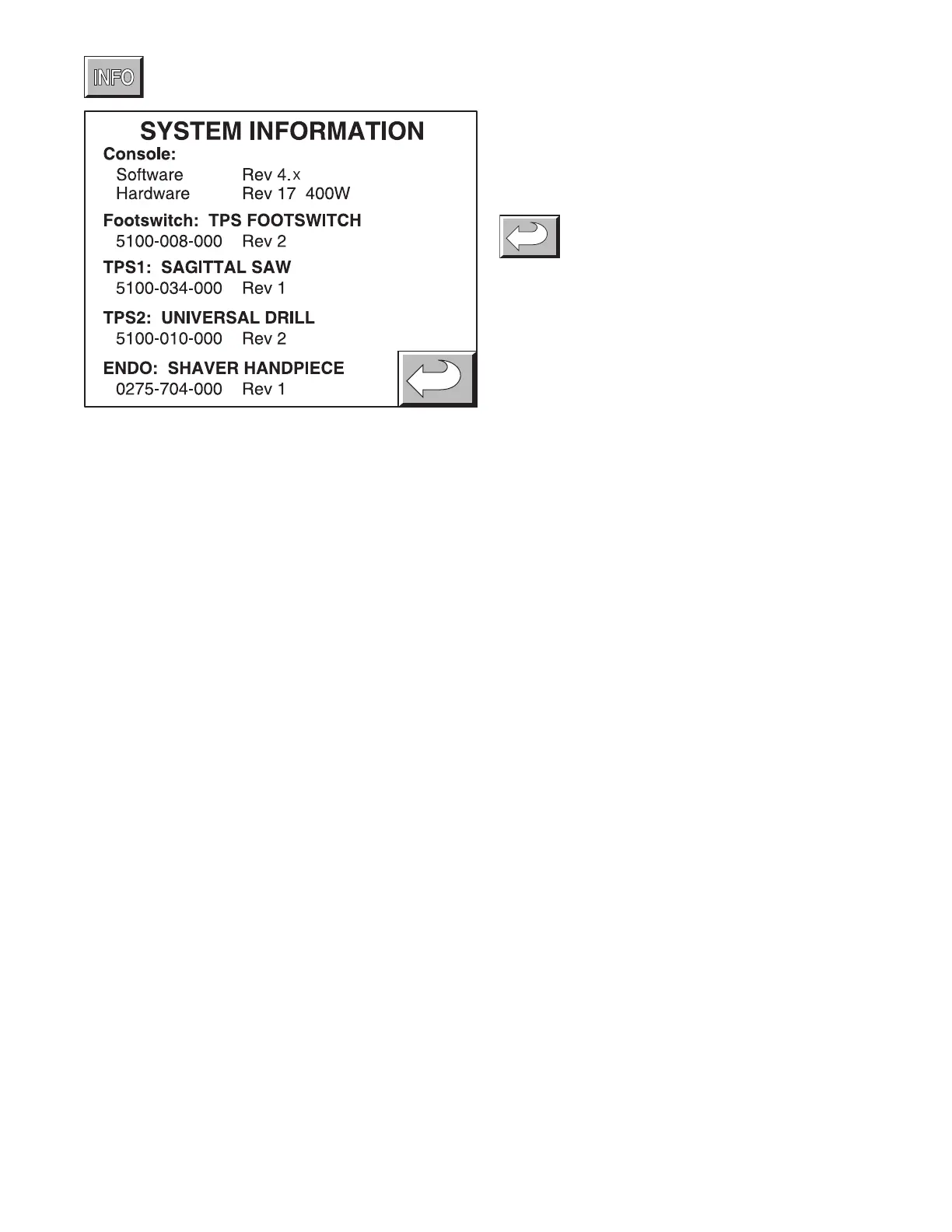

System Information Screen
Selecting the INFO icon from the MAIN OPTION menu
displays the part numbers and revision levels of the
configured system components.
This information is used as a diagnostic aid only.
Return to the MAIN OPTION screen.
