21

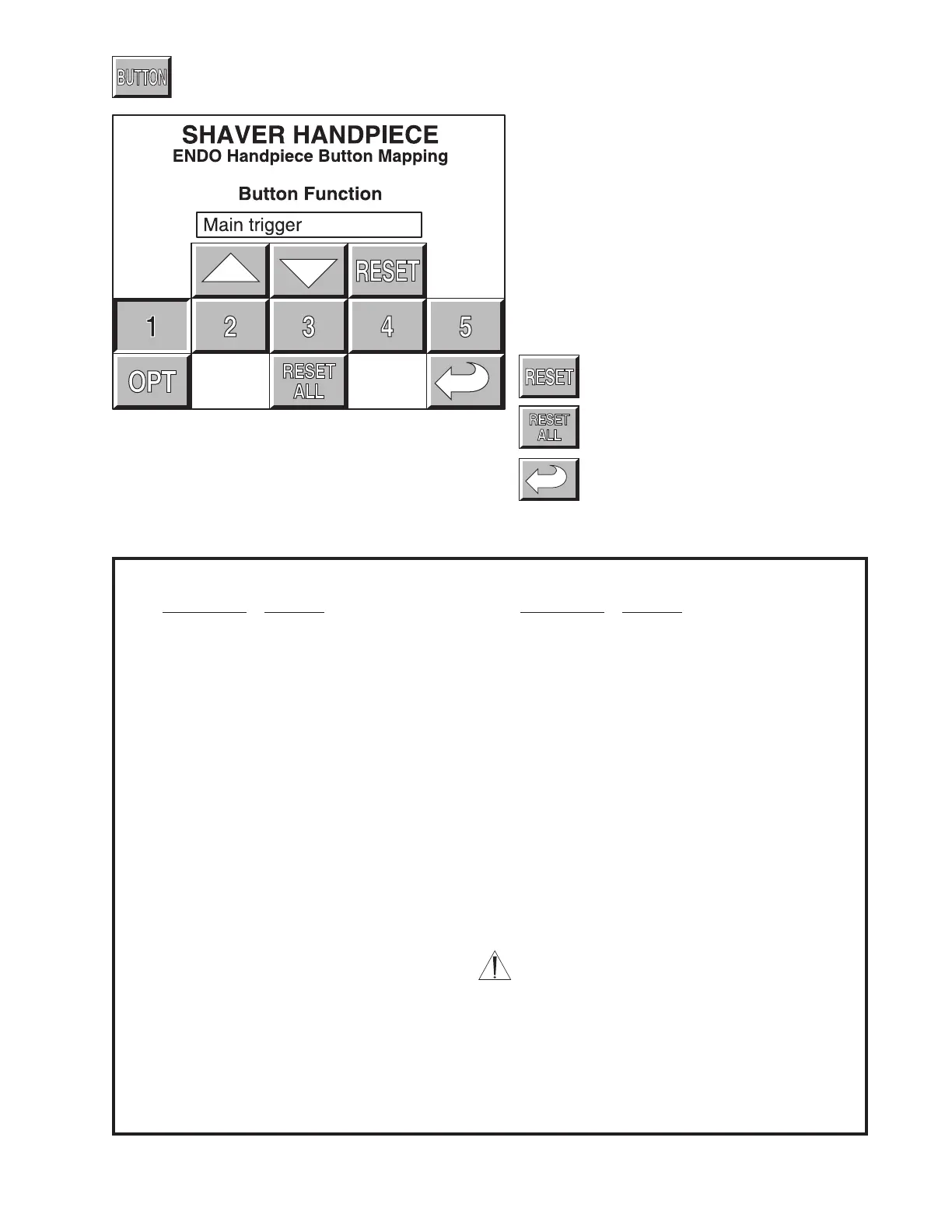

Handpiece Button Mapping Screen
Access this screen from the Handpiece Adjustment screen.
Use it to change handpiece button functions.
Depending on the features of the handpiece, as many as
five buttons can be reprogrammed. Identify corresponding
button numbers by pressing the buttons on the handpiece.
When the handpiece button is selected, the corresponding
function is displayed on the screen. Use the arrow icons
to scroll through the function options. Stop on the desired
option. See the list below for a description of the options.
NOTE: Available options are handpiece specific.
BUTTON FUNCTIONS
Reset: Select to return a single button to its
default function.
Reset all: Select to return all buttons to their
default functions.
Return: Return to previous screen.
Button Function Description
Main trigger Starts handpiece in default direction
and mode.
FWD trigger Starts handpiece in forward direction in
default mode.
REV trigger Starts handpiece in reverse direction in
default mode.
OSC trigger Starts handpiece in oscillate mode.
Speed increment Increments the set point speed.
Speed decrement Decrements the set point speed.
Water increment Increments the pump flow set point.
Water decrement Decrements the pump flow set point.
Water on/off Toggles the pump on/off button. If
pressed and held, the pump can
be turned on without running the
handpiece. Once started, the pump
can be stopped by pressing the button
again or by starting the handpiece.
Button Function Description
Osc <> High/low Toggles the run mode between oscillate and
high or low.
High <> Low Toggles the run mode between high and low.
Forward <> Reverse Toggles the running direction.
Change port Changes the active handpiece port.
Change attachment Scrolls through the attachment list for the
selected handpiece.
Pump flush Turns the pump on at the flush rate. Once
started the pump can be stopped by pressing
the button again or by starting the handpiece.
Make port active Makes the selected handpiece active.
Window jog Slowly rotates the inner cutter for positioning
within the outer cutter's window.
WARNING: Operating a handpiece in the Window Jog
mode may cause the handpiece to overheat. If a
handpiece overheats, the console automatically turns
off the handpiece. (The alarm does not sound in this
event.) Carefully monitor the operating time to prevent the
handpiece from overheating. Failure to comply may cause
injury to the patient and/or the operating room staff.
Button Functions List
