13

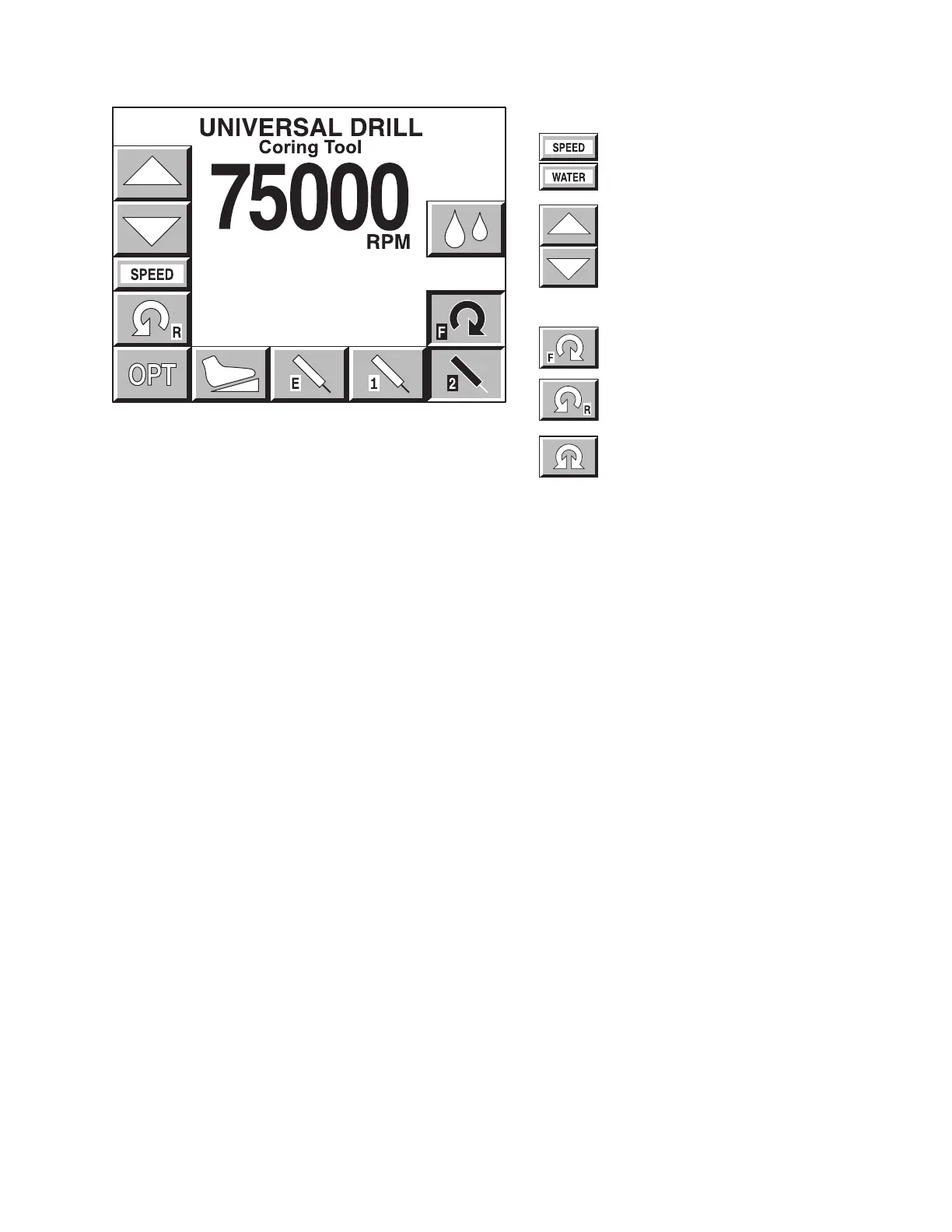

Rotary Handpiece Screen
This screen appears when a TPS rotary handpiece is selected. The TPS Universal Drill is
plugged into the TPS2 port and the speed is set at 75,000 RPM.
ENDO, TPS1 and the footswitch icons indicate that other instruments are plugged into the
console.
SPEED/WATER ADJUSTMENT
The speed icon functions as a toggle switch
for speed and water settings.
Speed and irrigation adjustments are made
using the adjustment arrows.
DIRECTION OPTIONS
FORWARD Clockwise
REVERSE Counterclockwise
OSCILLATE
TPS MicroDriver and Universal Driver
METHOD OF OPERATION
The TPS MicroDriver can be operated with its built-
in trigger and rotary control switch or with the TPS
Footswitch.
NOTE: The handpiece will not run when the rotary switch
is in the SAFE position.
Trigger The built-in speed control trigger(s) runs the
handpiece from start-up to the maximum selected speed.
MicroDriver only: Select cutting direction with the rotary
switch on the handpiece. Direction icon will highlight to
match the rotary switch position.
Universal Driver only: Select cutting direction by
depressing either the forward trigger or the reverse
trigger. Squeezing both triggers simultaneously runs the
handpiece in the oscillate mode. The oscillate icon will
become highlighted.
Footswitch Handpiece runs from start-up to the
maximum selected speed.
The direction icon on the screen changes when the
corresponding footswitch pedal is depressed.
Footswitch operation overrides handpiece settings.
Example: If the footswitch reverse pedal is depressed
while the handpiece rotary switch is set in forward,
the handpiece operates in the reverse direction and
the reverse icon highlights. However, after the pedal is
released, the direction icon will revert to the direction set
on the rotary switch.
TPS Universal and Micro Drills
METHOD OF OPERATION
The Universal Drill can be operated with the TPS Universal
Handswitch or TPS Footswitch.
Handswitch Handpiece selection can be made by depressing the
handswitch once. The handpiece select icon changes to indicate
the active handpiece. Depress the handswitch again to run the
handpiece.
Handpiece runs from start-up to the maximum selected speed.
Speed and cutting direction corresponds to what is selected on the
screen.
Footswitch Handpiece runs from start-up to the maximum
selected speed.
Handpiece direction is controlled by selecting the forward or
reverse pedals. The direction icon on the screen changes when
the corresponding footswitch pedal is depressed.
