20

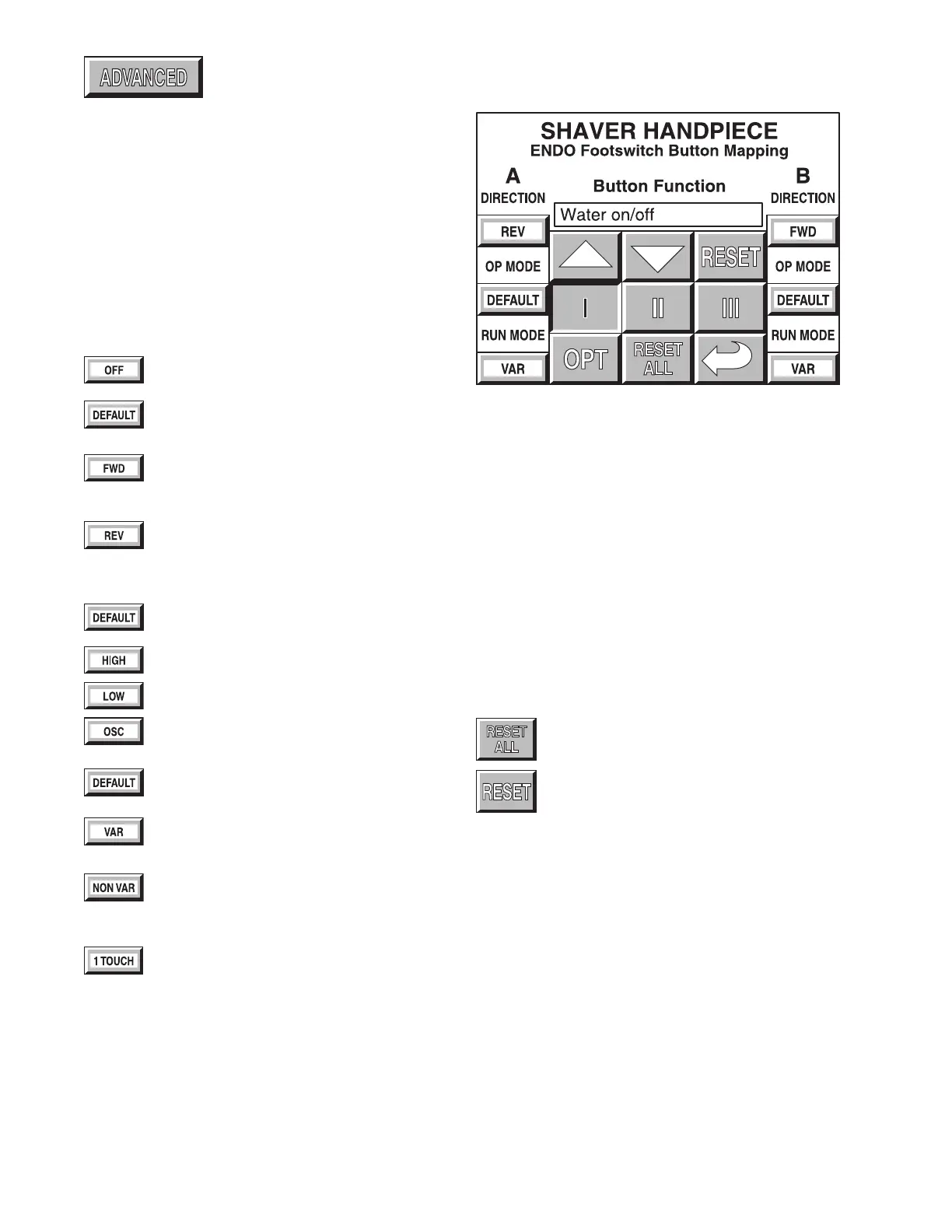

Footswitch Button Mapping Screen
Access this screen by selecting the ADVANCED icon on the
FOOTSWITCH ADJUSTMENTS screen. The default functions
of each footswitch pedal and button can be reprogrammed to
accommodate the surgeon's preferences.
Depending on the type of handpiece displayed at the top of the
screen, one or more of the following options will be available on
this screen.
The DIRECTION, OP MODE, and RUN MODE icons
correspond respectively to the two largest footswitch pedals.
Press each icon to scroll through the following function
options. And stop on the desired function setting.
DIRECTION
Pedal is turned off.
Footswitch defaults to the settings selected on the
handpiece screen.
Forward: Pedal setting default is overridden. Pedal
will provide handpiece rotation in the forward
(clockwise) direction.
Reverse: Pedal setting default is overridden. Pedal
will provide handpiece rotation in the reverse
(counterclockwise) direction.
OP MODE
Footswitch defaults to the settings selected on the
handpiece screen.
Handpiece operates in the high speed range.
Handpiece operates in the low speed range.
Handpiece operates in oscillate mode.
RUN MODE
Footswitch defaults to the settings selected on the
handpiece adjust screen.
Variable: Variable speed control. Speed responds
to varying degrees of pressure on the footswitch.
Nonvariable: Handpiece operates at a constant
speed level determined by the maximum speed
selected from the handpiece screen.
One touch: The one touch function is similar to an
on/off toggle. Tap the footswitch to operate the
handpiece at the maximum speed selected from
the handpiece screen. Tap any trigger device
again to stop operation.
BUTTON FUNCTION
The I, II, and III icons correspond to the three small pads across
the top of the footswitch.
Button Function displays the active function of the
corresponding button.
Use the arrow icons to scroll through the functions and stop on
the desired setting.
See Button Functions listed on next page.
Reset all: Press to return all pedals and buttons
back to their default setting.
Reset: Press to return the selected footswitch
button back to its default setting.
