Stryker TPS 5100-1 - System Overview; Symbol Definition

6
Power ON
Power OFF
Connection Detail

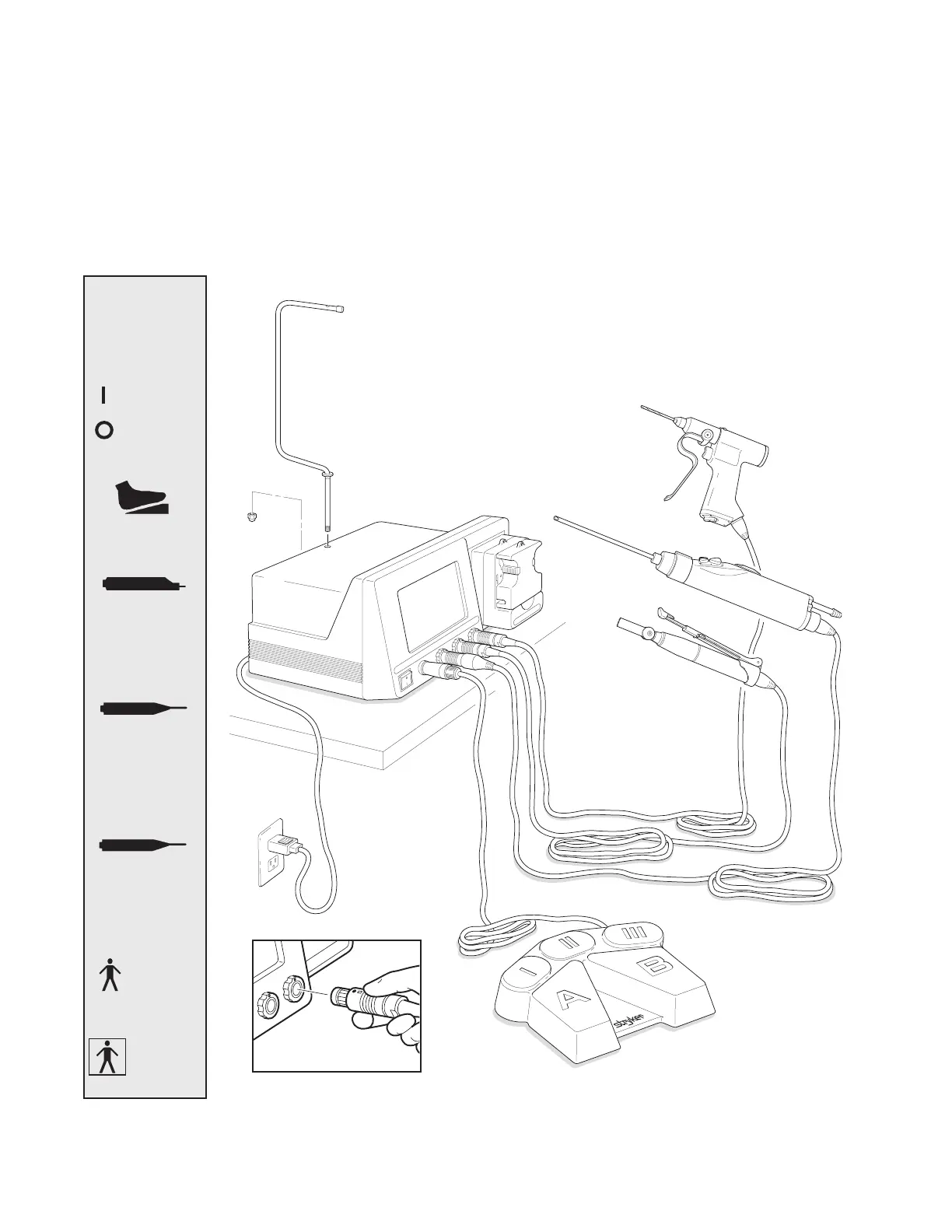

System Overview
TPS Footswitch
TPS Handpiece
TPS Irrigation Console
Stryker Endoscopy
Handpiece
TPS Handpiece
with Universal
Handswitch
Handpiece
Cords
Type B
Applied
Part
Type BF
Applied
Part
ENDO
Endoscopy
Handpiece Port
TPS2
TPS Handpiece
Port 2
TPS1
TPS Handpiece
Port 1
Symbol
Definition
Footswitch
Connector
The Stryker Total Performance System is intended for use in the cutting, drilling, decorticating, and smoothing of bone and other
bone related tissue in a variety of surgical procedures. It is also used for the placement or cutting of screws, wires, pins, and other
fixation devices as it can be used to cut metal.
TPS console powers multiple handpieces while allowing the user to program a number of customized settings.
