Stryker X8000 Service Manual

25
3.0 Ballast
S
e
q
.
T
a
s
k
D
e
s
c
r
i
p
t
i
o
n
F
i
g
u
r
e
T
o
o
l
s
N
e
e
d
e
d
P
a
r
t
s
200

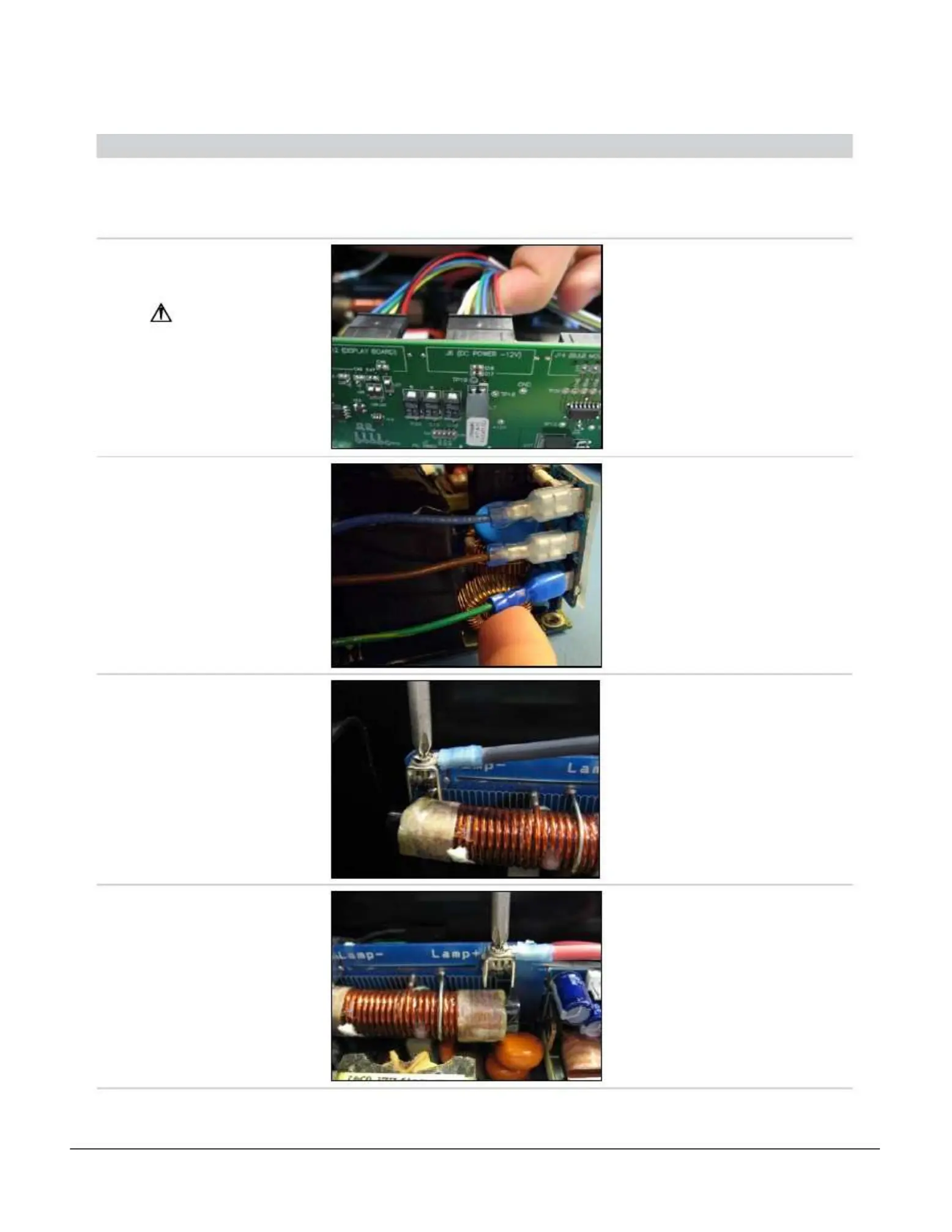

Remove Chassis Cover
from Chassis (procedure
1.0).
210
Disconnect all cables on the
Control Board side.
Do not bend Control
Board!
•
X8000
Control
Board (873)
220
Remove green Ground
Post
A/C Inlet Board/Ballast
Cable from bottom Ballast
connector GND J103.
• Needlenose
Pliers
•
Ground
Post
AC Inlet
Board/Ballast
Cable (587)
•
X8000
Ballast
(413)
230
Unscrew black Ballast/
Bulb Cathode Cable from
Ballast.
• Power
Screwdriver
(Phillips)
• Ballast/Bulb
Anode Cable
Assembly
(568)
•
X8000
Ballast
(413)
240
Unscrew red Ballast/Bulb
Anode Cable from Ballast.
• Power
Screwdriver
(Phillips)
• Ballast/Bulb
Anode Cable
Assembly
(569)
•
X8000
Ballast
(413)
