Sub-Zero 736TC-3 User Manual

Integrated
Integrated
(700-
(700-
3
3
T
T
ALL)
ALL)
Series
Series
Electronic Control System
3-19
#3758412 - Revision B - December, 2006
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
SERVICE
WARMERCOLDER

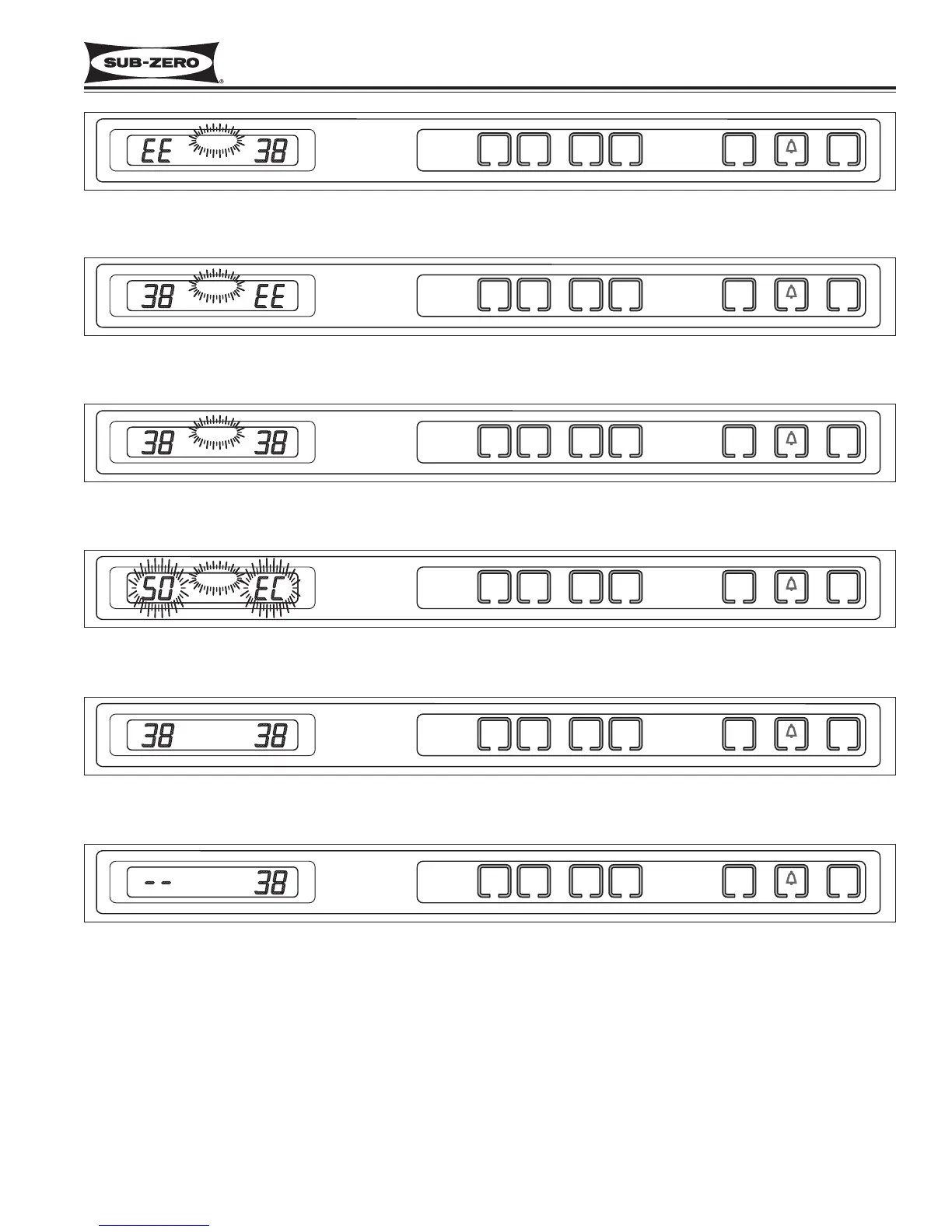

Figure 3-38. 700TR-3 & 736TR-3
“EE” at Right and “SERVICE” Flashing = Upper Compartment Thermistor (or its Wiring) Fault
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
SERVICE
WARMERCOLDER
Figure 3-39. 700TR-3 & 736TR-3
“SERVICE” Alone Flashing = Refrig. Evap. Thermistor (or its Wiring) Fault
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
SERVICE
WARMERCOLDER
Figure 3-37. 700TR-3 & 736TR-3
“EE” at Left and “SERVICE” Flashing = Lower Compartment Thermistor (or its Wiring) Fault
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
WARMERCOLDER
SERVICE
Figure 3-40. 700TR-3 & 736TR-3
“50”, “SERVICE” and “EC” Flashing = Excessive Compressor Run
Figure 3-41. 700TR-3 & 736TR-3
“SERVICE” Steady, not Flashing = Error Codes Observed in Diagnostic Mode, but not Cleared
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
SERVICE
WARMERCOLDER
Figure 3-42. 700TR & 736TR-3
“ - - ” (Double Dashes) Displayed = Compartment Manually Disabled
UNIT
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ON/OFF
WARMERCOLDER
FREEZER
WARMERCOLDER
