Component Access/Removal
7-9
#3758412 - Revision B - December, 2006
Upper Evaporator Cover / Air Duct Removal
(All Models)
The bottom of the upper evaporator cover sets into a
channel at the bottom of the upper compartment. At
the top, screws hold the evaporator cover to the evapo-
rator fan shroud.
To access and remove the evaporator cover, the light
diffuser must first be removed, then (See Figure 7-16):
1. Extract screws at top of evaporator cover.
2. Tilt cover forward and lift out of unit.
Upper Evaporator Fan Shroud Assembly Removal
(All Models)
The evaporator fan shroud assembly, which holds the
upper compartment lighting components, is secured to
the ceiling with screws.
To access and remove the evaporator fan shroud
assembly, first remove the light diffuser and evaporator
cover, then (See Figure 7-17):
1. Extract the mounting screws which secure fan
shroud assembly to ceiling of compartment.
2. Lower the assembly and disconnect wire harness.

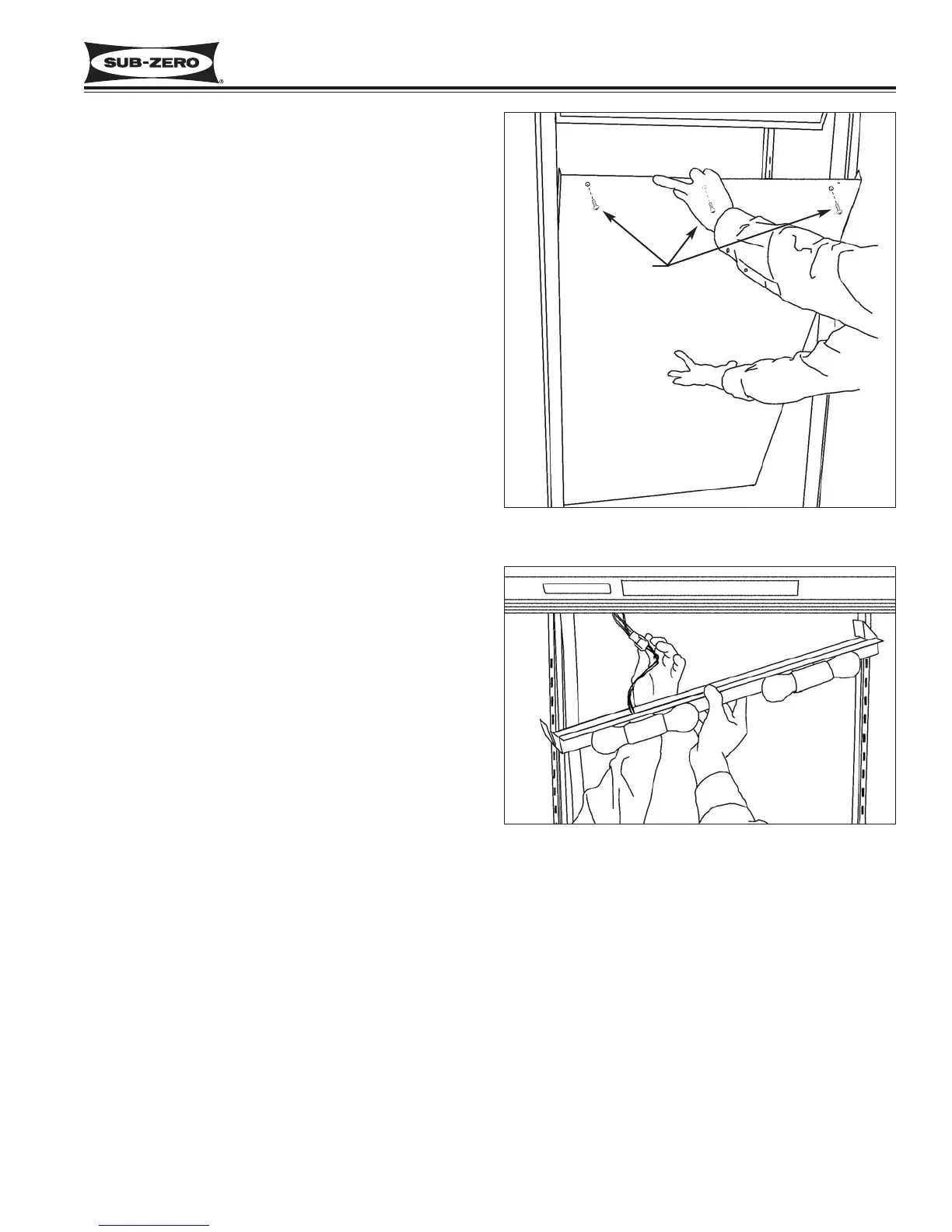

Figure 7-16. Upper Evaporator Cover Removal
Figure 7-17. Upper Evaporator Fan Shroud Assy
Disconnect Wiring
Screws
