Component Access/Removal
Integrated
Integrated
(700-
(700-
3
3
T
T
ALL)
ALL)
Series
Series
7-4
#3758412 - Revision B - December, 2006
Drawer Assembly Removal (All Models)
There are inverted channels on both sides of the draw-
er tubs which rest on telescoping drawer slide assem-
blies. A pin at the front of each drawer slide fits into a
hole in the inverted channel of each drawer tub, holding
the drawer assembly in place.
To remove a drawer assembly (See Figure 7-4):
1. Pull drawer open. Lift front of drawer up and off of
pins at front end of drawer slides.
2. Pull drawer assembly forward and off of drawer
slides.
3. Push telescoping drawer slide assemblies back in.
Door & Drawer Gasket Removal (All Models)
The door and drawer gaskets are pressed into retaining
channels that are molded into door and drawer liners.
NOTE: Drawer assemblies must be removed from the
unit in order to remove and/or install their gaskets.
To remove a door or drawer gasket, simply pull the gas-
ket from the retaining channel. (See Figure 7-5)

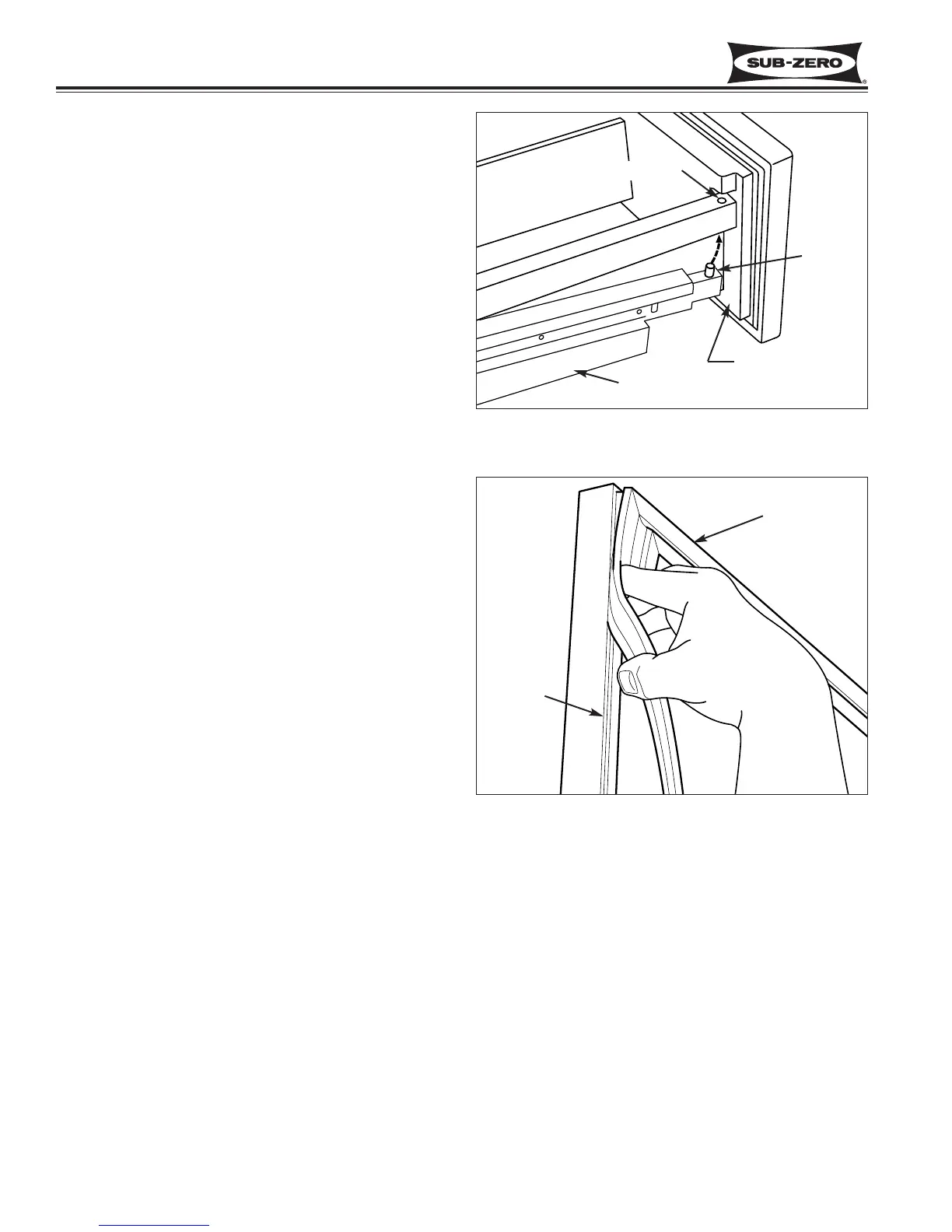

Figure 7-4. Drawer Assembly Removal
Hole in Channel
Pin
Drawer Slide
Drawer Assembly
Figure 7-5. Gasket Removal
Door Gasket
Channel
