Component Access/Removal
7-7
#3758412 - Revision B - December, 2006
Upper Light Diffuser Removal (All Models)
The side frames of the upper light diffuser have four
inverted “T” shaped slots (two each side) which fit over
pegs protruding from the side walls of the upper com-
partment. Retaining clips at the rear slots secure the
diffuser to the rear pegs.
To remove the light diffuser (See Figure 7-10):
1. Slide a finger over the top of each retainer clip
flange and rotate the retainer clip down and back.
2. With clips open, lift the diffuser up and slide it
towards the rear of unit until center of the “T” slots
line up with the pegs.
3. Lower diffuser down and pull forward from the unit.
(See Figure 7-11)
Light Bulb Removal (All Models)
To access the upper light bulbs, the light diffuser must
be removed first. With the diffuser removed, screw the
bulb counterclockwise to remove it and clockwise to
install it. (See Figure 7-12)
The light bulbs in the drawer area are not covered by
light diffusers. Screw the bulb counterclockwise to
remove and clockwise to install. (See Figure 7-12)

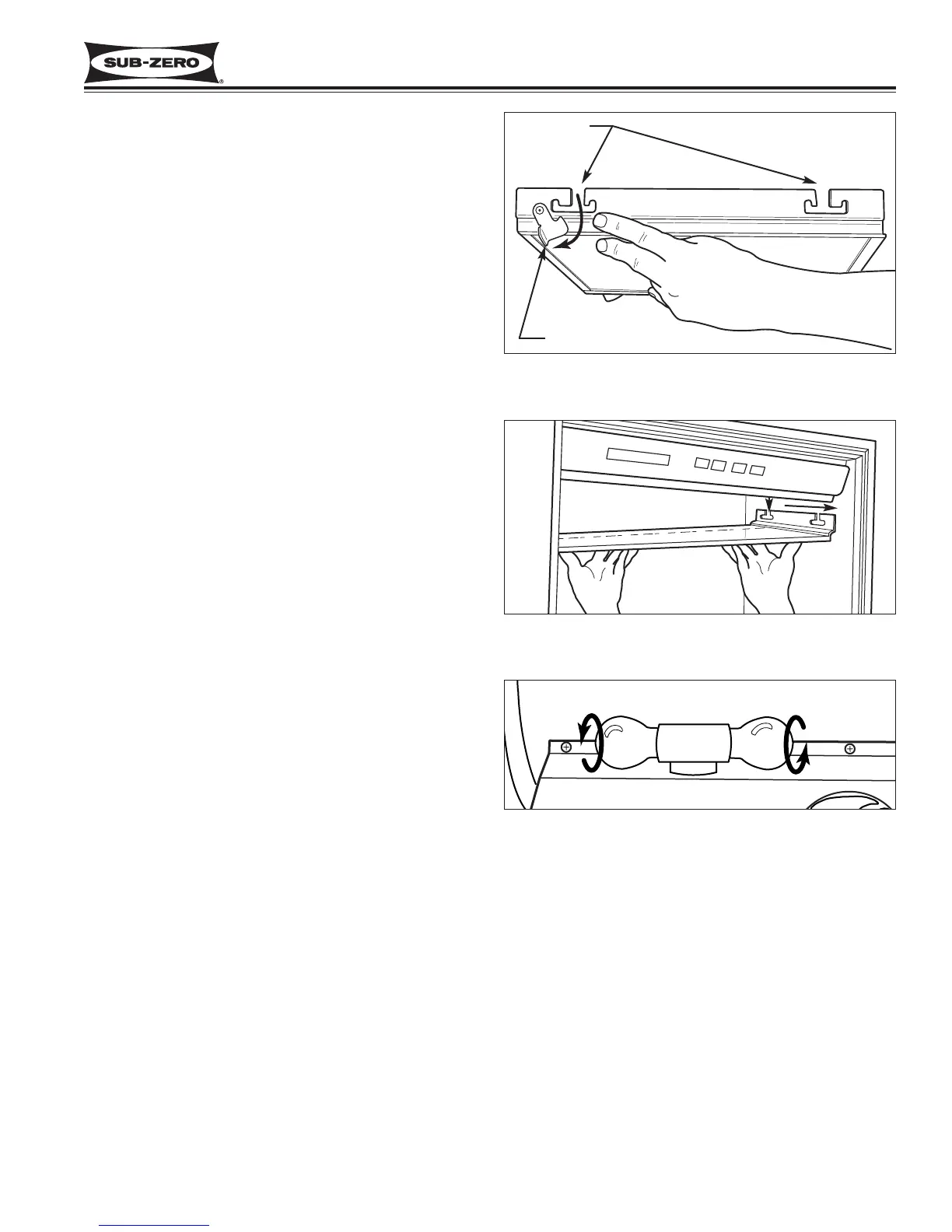

Figure 7-10. Upper Light Diffuser Removal
Figure 7-11. Upper Light Diffuser Removal
Retaining Clip
“T” Slots
Figure 7-12. Light Bulb Removal
counterclockwise to remove
Line-up Slots with Pegs
