Airflow & Fan Blade Spacing
Integrated
Integrated
(700-
(700-
3
3
T
T
ALL)
ALL)
Series
Series
5-2
#3758412 - Revision B - December
, 2006
Blade
Bracket
Clamp
Away From
Motor
Blade
Bracket
Clamp
Away From
Motor
UPPER F
AN MOTOR
LOWER F
AN MOTOR

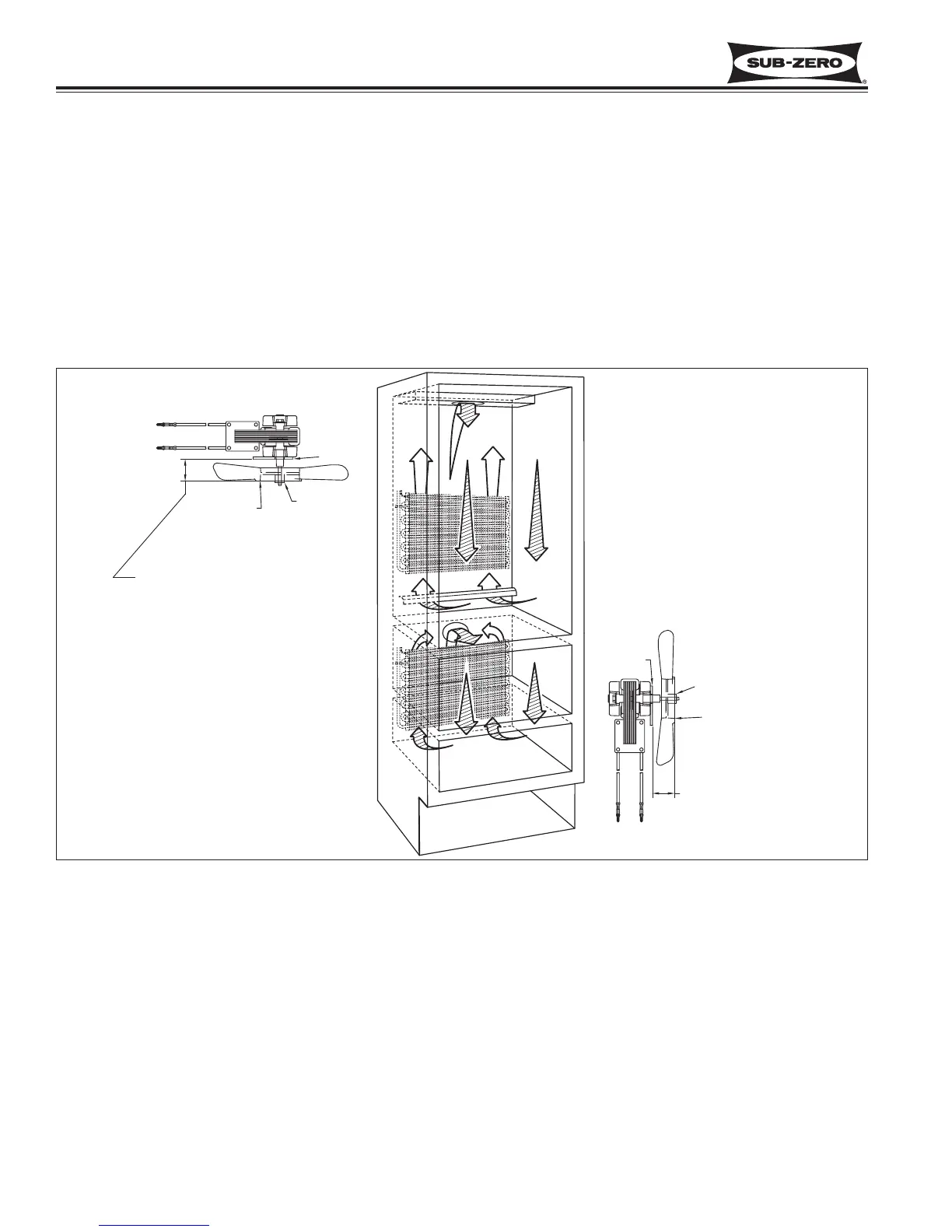

Figure 5-1. 700TC/I-3 and 736TC/I-3
Air Flow and Fan Blade Sp
acing
700TC/I-3:
736TC/I-3:
1” ± 3/32”
(25.4 mm ± 0.8 mm)
7/8” ± 1/16”
(22.2 mm ± 1.6 mm)
7/8” ± 1/16”
(22.2 mm ± 1.6 mm)
51
53
Table of Contents
General Information
5
Section 1 - General Information
3
Introduction
4
Important Safety Information
4
Technical Assistance
4
Table of Contents
5
Warranty Information
7
General Information
7
Model Description
8
Section 2 - Installation Information
11
Installation Considerations
12
Unit Leveling
12
Door & Drawer Adjustment
13
Door Stop Adjustment
13
Dual Unit Installation
14
Section 3 - Electronic Control System Information
15
Terminology & Component Descriptions
16
Basic Electronic Control System
17
Control Board Layout & Summary Table
18
Basic Electronic Control Input Operations
19
Unit ON/OFF
19
Adjusting Set-Point (Temp. Adjustment)
20
Icemaker System ON/OFF
20
Door Ajar Alarm Feature ON/OFF
20
Control Panel Layout
19
Unique Electronic Control Input Operations
21
Temperature Units Selection Mode
21
Sabbath Mode
22
Showroom Mode
22
Manual Zone Disable Mode
23
Manual Freezer Evaporator Defrost
23
Functions of the Electronic Control System
24
Supply Power to the Lighting System
24
Control Condenser Fan Run
27
Refrigerator "Fan-Assisted Off-Cycle Defrost
28
Freezer "Adaptive Defrost
29
Possible Error Indicators
32
700Tc/I-3 & 736Tc/I-3
32
700Tr-3 & 736Tr-3
33
Tf/I-3
35
Diagnostic Mode Indicators
36
Error Code Table
37
Clearing Error Codes
37
Manual Component Activation Mode
38
Temperature Log Recall Mode
39
Possible Event Indicators
41
Temperature Log Index Chart
42
Troubleshooting Input Operations
35
Diagnostic Mode
35
Section 4 - Sealed System Information
43
HFC-134A Refrigerant Service Information
44
General Rules for Working with 134A Refrigerant
44
Sealed System Repair Procedures
45
Sealed System Operation
46
Sealed System Refrigerant Flow Diagrams
48
Model 700TF/I-3
49
Section 5 - Air Flow & Fan Blade Spacing
51
Section 6 - Icemaker Information
55
Modular Icemaker
56
Modular Icemaker Operation
57
Modular Icemaker Test Procedures
58
Voltage Tests
58
Continuity Tests & Thermostat Inspection
58
Icemaker Disassembly
59
Module/Motor Assembly
59
Mold/Heater Assembly
59
Ejector Blades And/Or Ice Stripper
59
Icemaker Thermostat
59
Water Fill Adjustment
59
Section 7 - Component Access and Removal
69
Component Access and Removal
70
Exterior Cosmetic and Mechanical Components
71
Kickplate/Grille
71
Side Molding Strip
71
Upper Compartment Light Switch and Fan Switch
71
Drawer Assembly
72
Door & Drawer Gasket
72
Door Assembly
73
Upper and Lower Hinge Assembly
73
Interior Cosmetic, Mechanical and Electrical Components
74
Door Shelf and Dairy Compartment
74
Compartment Shelf
74
Upper Light Diffuser
75
Light Bulb
75
Control Board
76
Control Panel Assembly
76
Upper Evaporator Cover / Air Duct
77
Upper Evaporator Fan Shroud Assy
77
Upper Compartment Thermistor
78
Drawer Closer Assembly
79
Drawer Slide Assembly
79
Heat Exchanger Cover
80
(700Tc/I-3, 700Tf/I-3, 736Tc/I-3)
82
Drain Trough Heater (700TC/I-3, 700TF/I-3, 736TC/I-3)
82
Lower Evaporator Fan Shroud
82
Defrost Terminator (700TC/I-3, 700TF/I-3, 736TC/I-3)
83
Defrost Heater (700TC/I-3, 700TF/I-3, 736TC/I-3)
83
Switch Enclosure Assembly
84
Lower Evaporator Thermistor
84
Lower Compartment Thermistor
85
Fill Tube Heater (700TC/I-3, 700TF/I-3, 736TC/I-3)
85
Lower Compartment Light / Fan / Icemaker Switch
85
Compressor Area Electrical & Mechanical Components
86
Condenser Fan Assembly
87
Sealed System Components
88
Lower Compartment Evaporator
88
High-Side Filter-Drier
89
Compressor
90
Condenser
91
Upper Compartment Heat Exchanger
92
Lower Compartment Heat Exchanger
93
Section 8 - Troubleshooting Guides
95
How to Use Error Code Troubleshooting Guide
96
Error Code Table
96
Error Code Troubleshooting Guide
97
How to Use the General Troubleshooting Guide
99
Troubleshooting Guides
100
Default Chapter
100
General Troubleshooting Guide Table of Contents
100
Troubleshooting Guides
101
EE" Displayed in Place of Freezer Temperature with "SERVICE" Flashing
101
EE" Displayed in Place of Refrigerator Temperature with "SERVICE" Flashing
101
Erratic Temperatures with or Without "SERVICE" Flashing
101
Warm or Normal Temperatures Displayed with Non-Flashing "SERVICE" Displayed
101
No Ice, "ICE" Displayed on LCD, but Not Flashing
110
Icemaker Produces Hollow Cubes
111
Icemaker Produces Small Cubes
111
Water in Ice Bucket / Clump of Ice in Ice Bucket
111
Membrane Switch on Control Board Malfunctioning
112
Door or Drawers Not Able to Close Completely
113
Door or Drawers Uneven
113
Sealed System Troubleshooting / Diagnostic Tables
114
Normal Operating Pressures
114
Pressure Indications
115
Evaporator Temperature / Sealed System Low-Side Pressure Correltion
115
Control Panel Membrane Switch / Ribbon Cable Test
116
Door Hinge Operation Test Procedures and Corrections
117
Technical Data
119
Model 700TC/I-3
120
Model 700TR-3
121
Model 700TF/I-3
122
Wiring Diagrams
125
Model 736TC/I-3
132
Model 736TR-3
135
Section 10 - Wiring Diagrams
135
