Icemaker Information

Integrated

(700-

ALL)

Series

6-8

#3758412 - Revision B - December, 2006

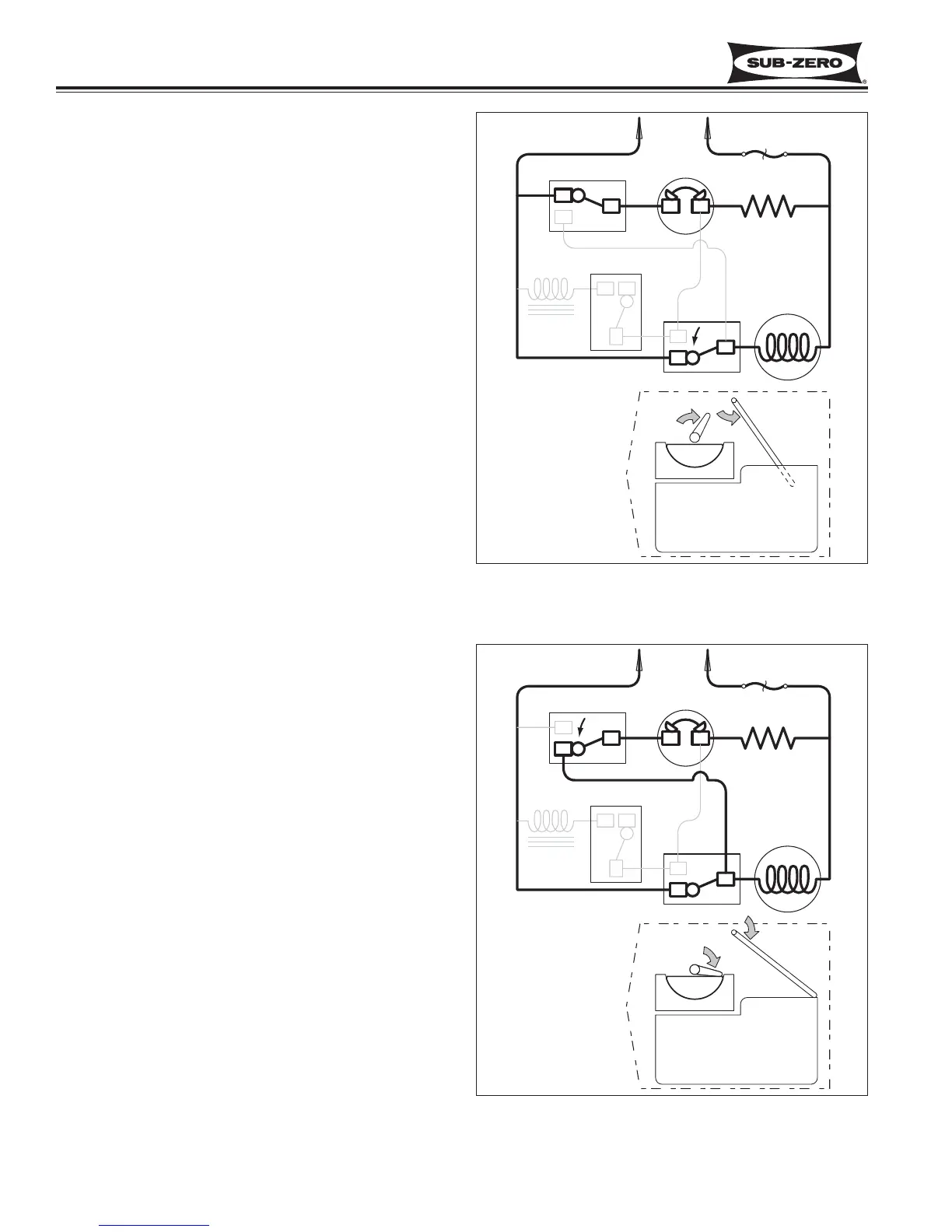

Figure 6-10. First Revolution Continued

APPROXIMATE POSITION

OF ICE EJECTOR AND

ICE LEVEL ARM

DURING OPERATION

115 VOLTS

60 CYCLES

SHUT-OFF SWITCH

THERMOSTAT

MOLD HEATER

WATER

SOLENOID

SOLENOID SWITCH

MOTOR

HOLDING SWITCH

TCO

ICE MOLD

ICE BUCKET

ICE

First Revolution Continued (See Figure 6-10)

• The holding switch is tripped by the timing cam to

“normally open” thus holding power to the motor.

• The mold heater remains energized through the

thermostat.

• The shut-off arm begins to rise.

First Revolution Continued (See Figure 6-11)

• The ice ejector reach the ice in the mold.

• The ice releases from the mold as the ejector

blades begin to rotate the cubes out.

• The drive motor remains energized through the

holding switch.

• The mold heater remains energized through the

thermostat.

• As the shut-off arm rises, the shut off switch is

tripped to “normally closed”, and then the shut-off

arm begins to lower.

Figure 6-11. First Revolution Continued
