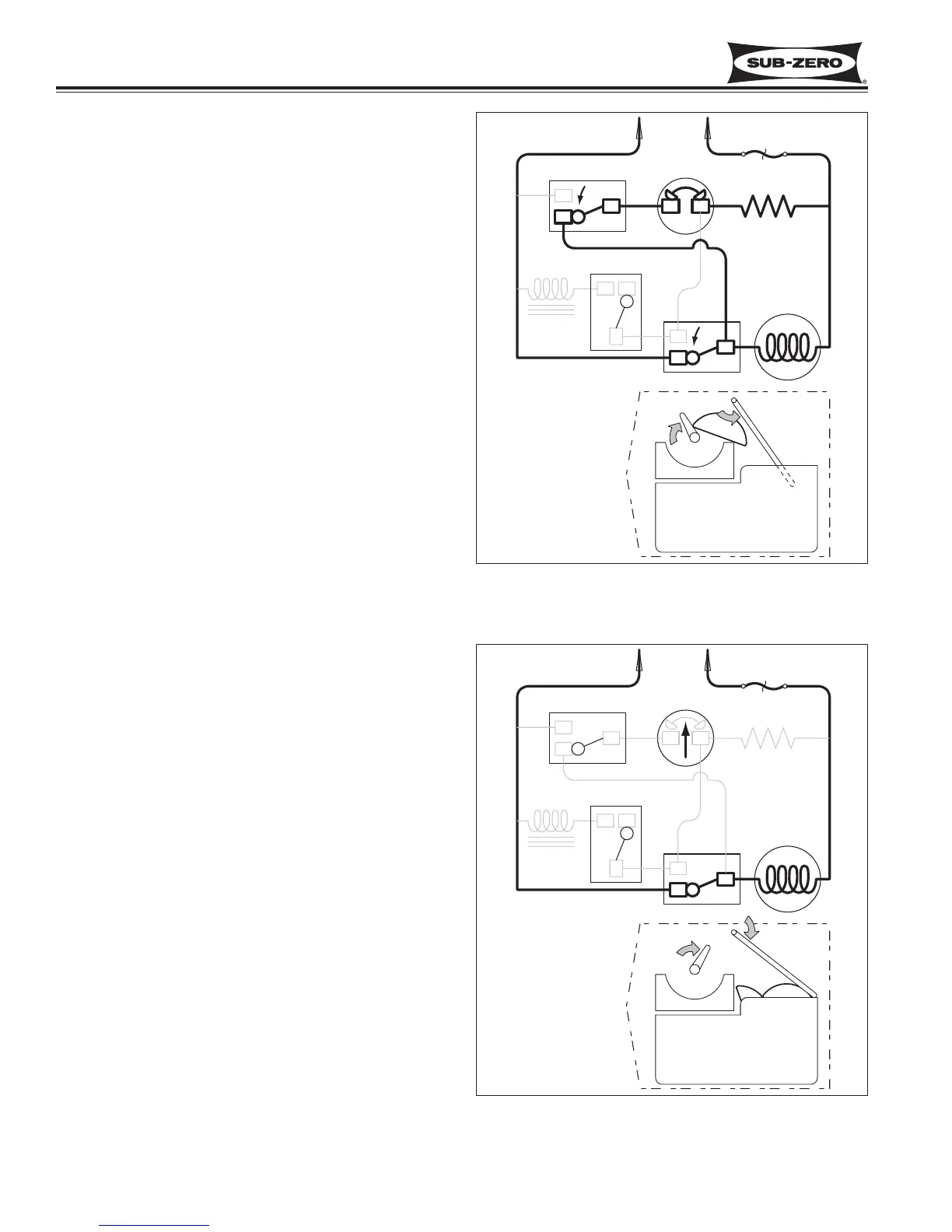

Figure 6-14. Start of Second Revolution

APPROXIMATE POSITION

OF ICE EJECTOR AND

ICE LEVEL ARM

DURING OPERATION

115 VOLTS

60 CYCLES

SHUT-OFF SWITCH

THERMOSTAT

MOLD HEATER

WATER

SOLENOID

SOLENOID SWITCH

MOTOR

HOLDING SWITCH

ICE MOLD

ICE BUCKET

ICE

TCO

Start of Second Revolution (See Figure 6-14)

• The water valve solenoid switch is tripped by the

timing cam back to “normally open.”

• The timing cam trips the holding switch to “normally

close,” which ends the first revolution, but the ther-

mostat is still closed, so the motor is again started.

• The mold heater remains energized through the

thermostat.

Second Revolution Continued (See Figure 6-15)

• The mold heater has warmed the thermostat, so the

thermostat opens, and the mold heater is de-ener-

gized.

• If the shut-off arm comes to rest on top of the ice in

the storage bin (as illustrated), so the shut-off

switch will remain in the “normally closed” position.

• The motor remains energized through the holding

switch.

Figure 6-15. Second Revolution Continued
