Sub-Zero ICBIW-18 User Manual

2 | English
Product Information
Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located on the underside of the control panel,
on the left. Refer to the illustration below.
If service is necessary, contact Sub-Zero factory certied
service with the model and serial number.
WINE STORAGE
Contents
2 Wine Storage
2 Opening Dimensions
3 Electrical
3 Preparation
3 Anti-Tip Bracket
4 Placement
4 Alignment
5 Custom Panels
6 Panel Installation
7 Completion
Features and specications are subject to change at any
time without notice.
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.
Tools and Materials
• Screwdrivers—standard, Phillips and Torx.
• Power drill.
• Drill bits (masonry bits required for concrete installation).
• Standard socket and wrench set.
• .6 m and 1.2 m levels.
• Material to protect home, ooring and cabinetry during
installation.

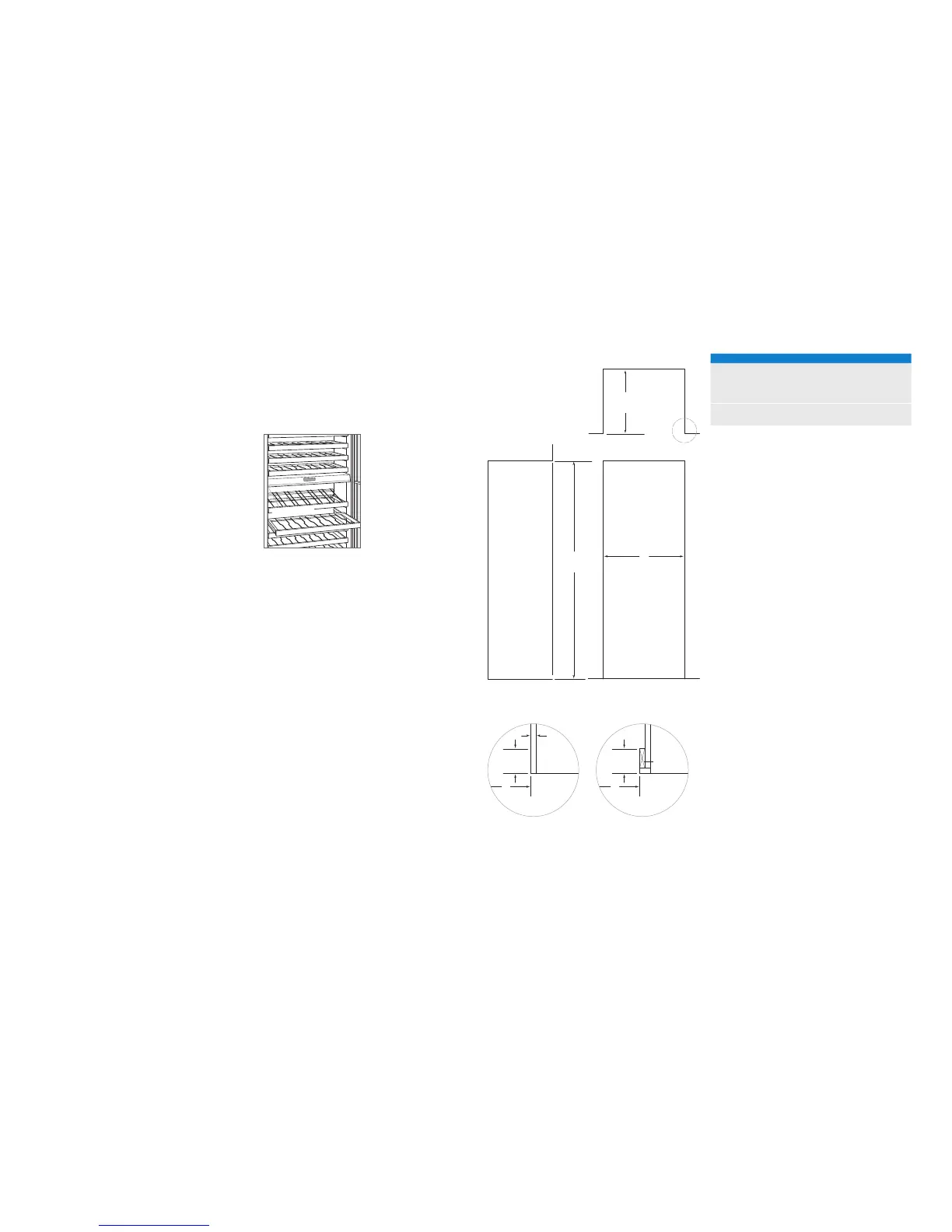

Rating plate location.
RATING PLATE
SITE PREPARATION
Opening Dimensions
WINE STORAGE
OPENING DIMENSIONS
COLUMN W H
ICBIW-18 457 mm 2134 mm
ICBIW-24 610 mm 2134 mm
ICBIW-30 762 mm 2134 mm
TALL W H
ICBIW-30R 762 mm 2134 mm
The depth of each wine storage model is 610 mm. Allow for
panel thickness when planning the nished opening depth.
A minimum 89 mm nished return is required on all sides of
the opening. Framed cabinets will require additional nished
ller material behind the face frame for a proper installation.
Refer to the illustration.
DUAL INSTALLATION
When installing two units side by side in a dual installa-
tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this instal-
lation. If a dual installation kit is not specied, a minimum
51 mm ller strip is required between units.
Dual installation kits are available through an authorized
Sub-Zero dealer.
635 mm
OPENING
DEPTH
W
OPENING WIDTH
H
OPENING
HEIGHT
NOTE: 89 mm finished returns will be visible and should be finished to match cabinetry.
SIDE
VIEW
TOP VIEW
FRONT VIEW
89 mm
FINISHED
RETURN
FRAMELESS CABINETRY
19
mm
TYPICAL
89 mm
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W
