subzero.com
|
7

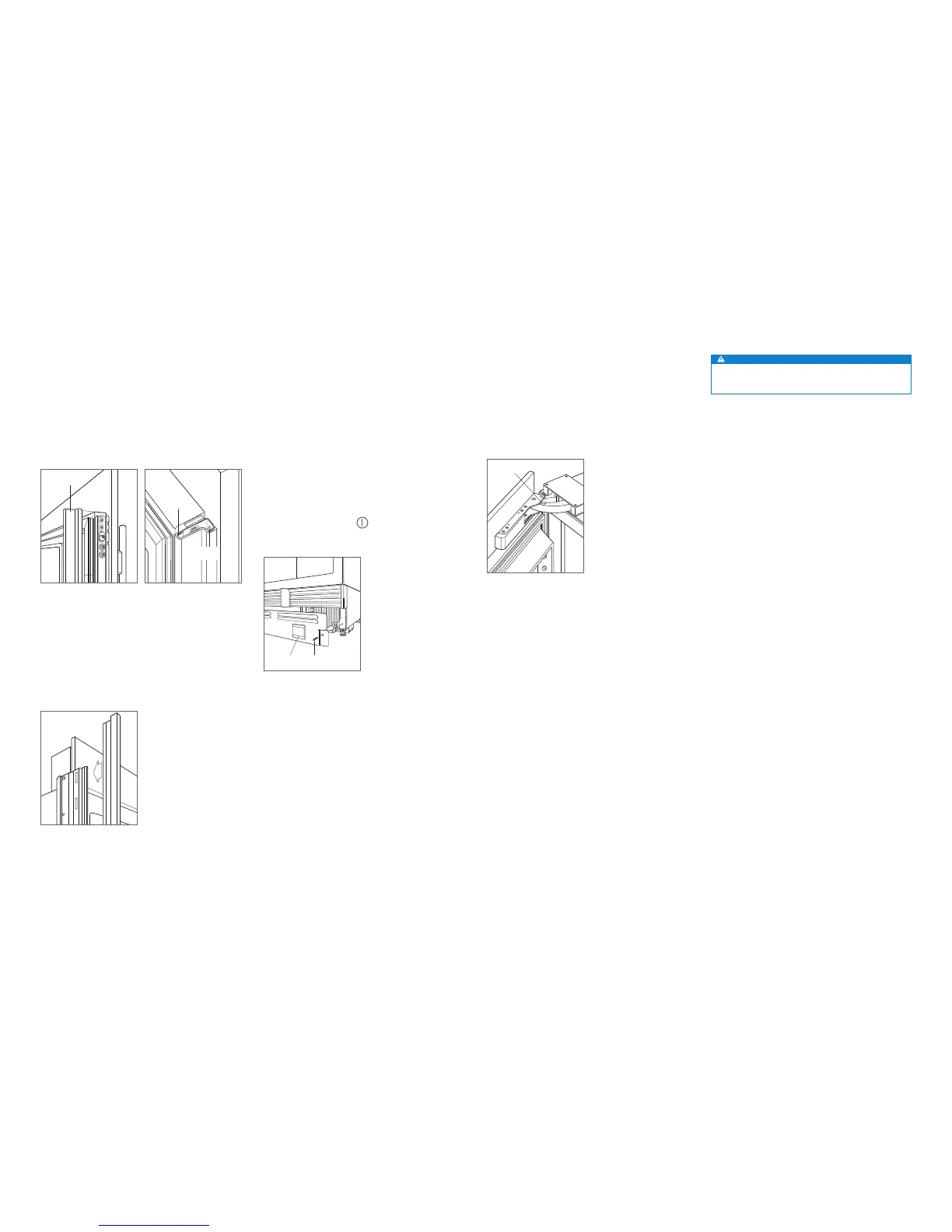

KICKPLATE INSTALLATION
Position the kickplate and install using the two mounting
screws. Refer to the illustration below. The kickplate must
be removable for service. The oor cannot interfere with
removal.
A maximum 152 mm decorative kickplate can be attached
to the factory-installed kickplate. The two rows of vented
louvers can be covered if door panel is a minimum 102 mm
from nished oor.
To install a decorative kickplate, remove paper backing from
the magnets and attach decorative kickplate to magnets.
Magnets may also be tacked into position to increase adhe-
sion. Magnets will allow decorative kickplate to be removed,
if necessary.
Turn power on by touching
on the control panel.
INSTALLATION
SCREWMAGNET
Kickplate installation.
Completion
DOOR TRIM INSTALLATION
After panels have been adjusted, install the decorative side
trim to the door/drawers. To install, start at the top and
align the trim with the front and rear anges on the bracket,
then snap into place by pushing the trim toward the back
of the panel. Once the top is secure, continue the installa-
tion downward until the remaining trim is completely secure.
Refer to the illustrations below.
DOOR TRIM
FRONT
FLANGE
REAR
FLANGE
Door trim.
Bracket anges.
SIDE TRIM INSTALLATION
Install the decorative trim strip to the handle side of tall
and column models. The side trim snaps over the bracket
attached to the handle side of the unit. Refer to the illustra-
tion below.
Side trim.
90° DOOR STOP
A 105° door stop is built into the hinges. To limit the door
to 90°, open the door slightly less than 90°, then use a
standard screwdriver blade to remove the existing clips from
each hinge. Locate the 90° clips from inside the plastic bag
containing product literature, then insert the 90° clips onto
each hinge. Refer to the illustration below.
CLIP
90° door stop.
WARNING
Follow all city and state laws when storing, recycling or
discarding unused refrigerators and freezers.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service
marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. All
other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
