4-4 Climate control

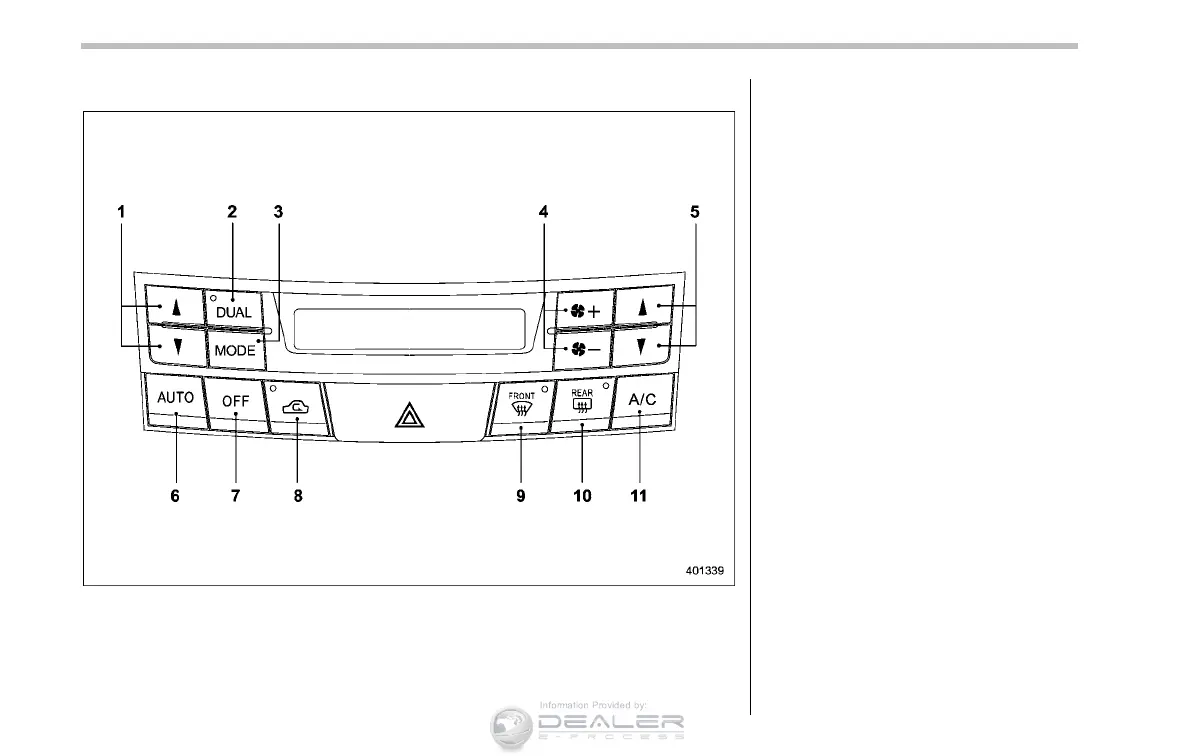

& Type B
1) Temperature control button (driver’s side)
(Refer to “Temperature control” F4-7.)
2) Dual mode button (Refer to “Automatic
climate control system (type B)” F 4-5
and “Temperature control” F4-7.)
3) Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)
4) Fan speed control button (Refer to “Fan
speed control” F4-8.)
5) Temperature control button (front pas-
senger’s side) (Refer to “Temperature
control” F4-7.)
6) AUTO button (Refer to “Automatic cli-
mate control system (type B)” F4-5.)
7) OFF button (Refer to “Automatic climate
control system (type B)” F4-5.)
8) Air inlet selection button (Refer to “Air
inlet selection” F4-8.)
9) Defroster button (Refer to “Airflow mode
selection” F4-6 and “Defrosting” F4-8.)
10) Rear window defogger button (Refer to
“Defogger and deicer” F3-49.)
11) A ir conditioner button (Refer to “Air
conditioner control” F4-8.)
