Starting and operating/Reverse Automatic Braking System
Guideline of detecting range
Alarm pattern Range of detected object* Distance indicator Warning sounds
Long proximity warn-
ing (Obstacle detect
warning)
35 inches (90 cm) or more Green No warning sound
Medium proximity
warning (First braking
and warning - yellow)
28 to 35 inches (70 to 90
cm)
Yellow + Green Short beeps
Short proximity warn-
ing (First braking and
warning - orange)
20 to 28 inches (50 to 70
cm)
Orange + Yellow +
Green
Rapid short beeps
Closest proximity
warning (Second
braking and warning)
20 inches (50 cm) or less
Red + Orange +
Yellow + Green
Continuous beep
*: Range of detection may vary depending on the environmental condition.

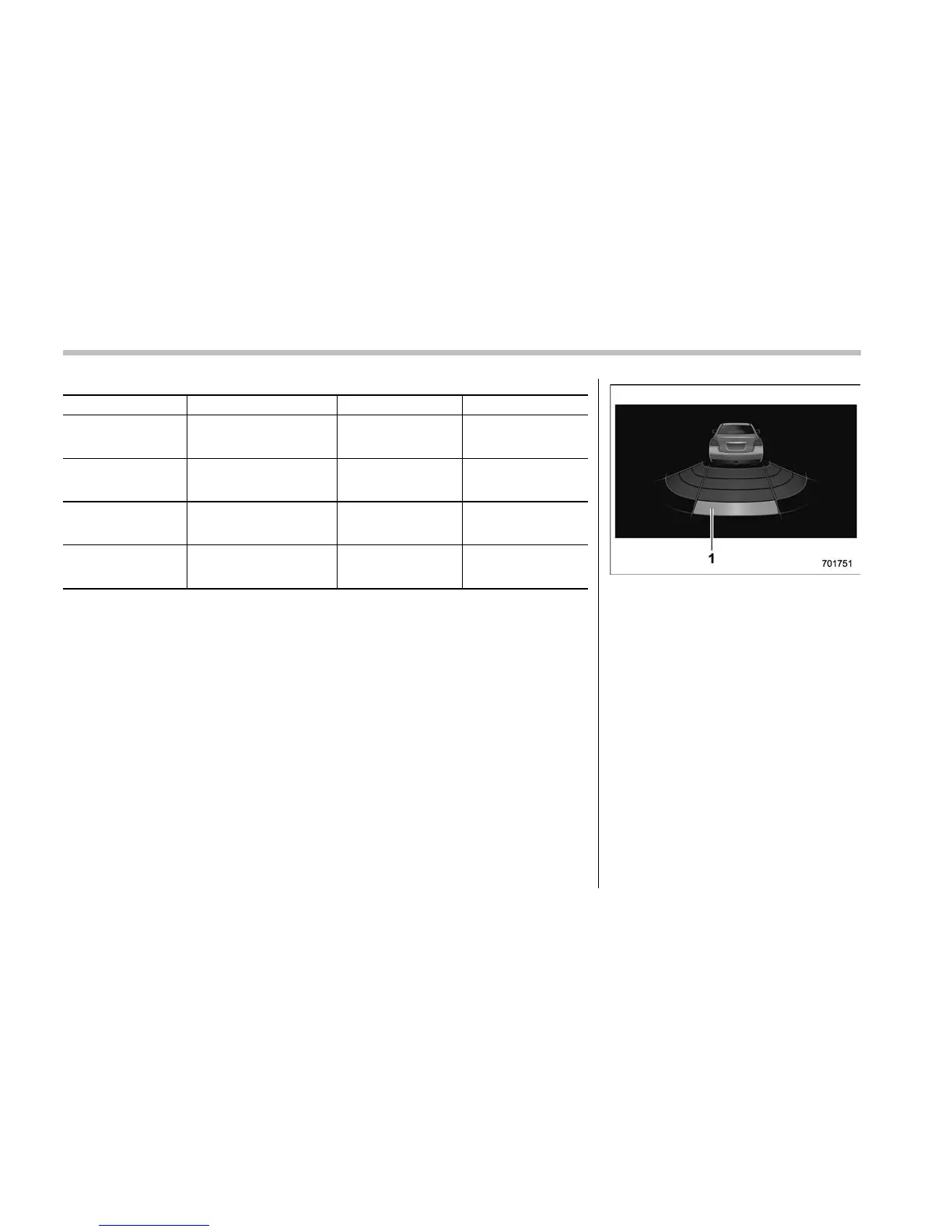

Range of detected object
1) Green: 35 inches (90 cm) or more
1) Obstacle detect warning:
When an object is detected in the rever-
sing direction, the range of detected object
will be indicated on the multi function
display.
