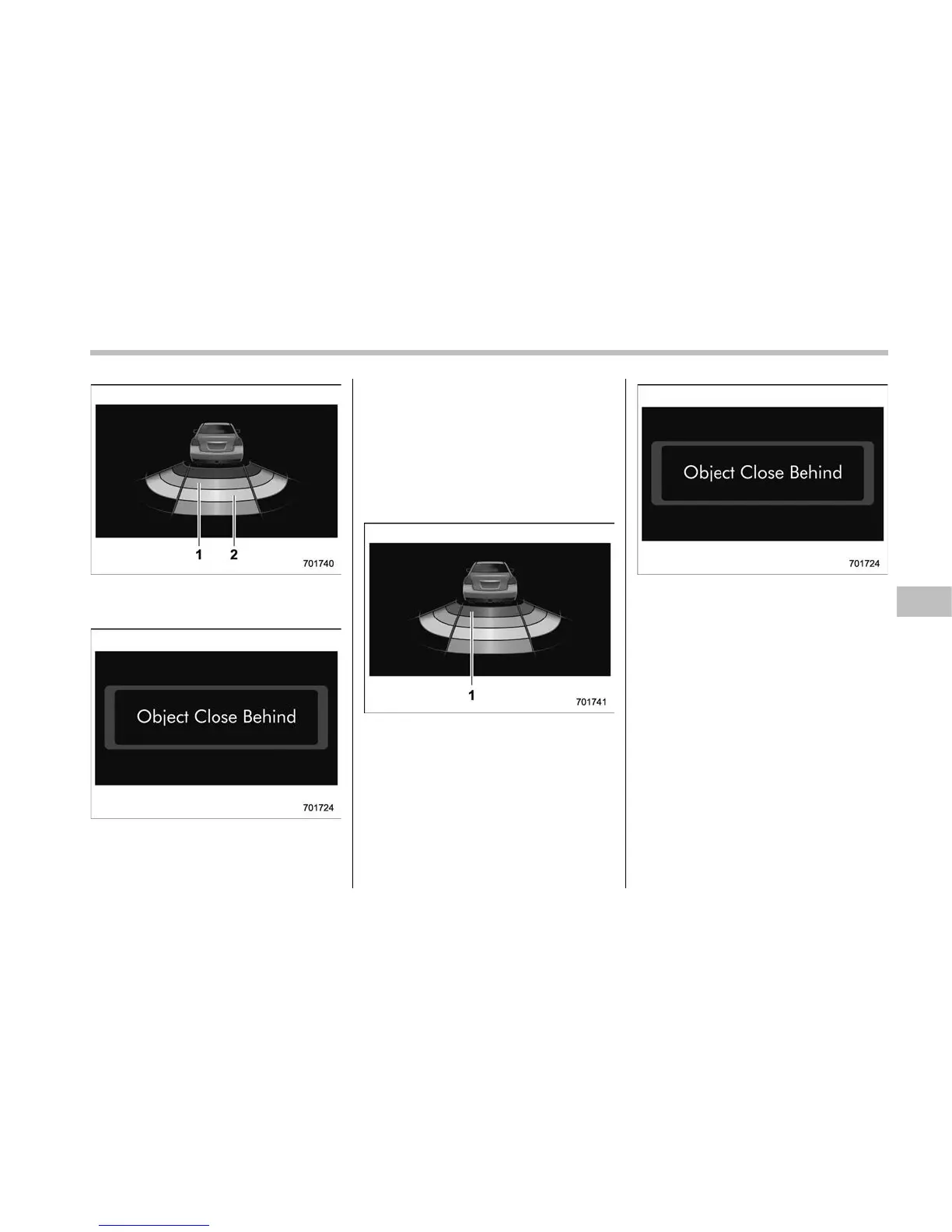

Range of detected object
1) Orange: 20 to 28 inches (50 to 70 cm)
2) Yellow: 28 to 35 inches (70 to 90 cm)
Warning message
2) First braking and warning:
When the system detects an object, if the
vehicle keeps reversing, the system de-
termines a collision with an object may
occur. In this case, short warning beeps
will sound and automatic deceleration will
be activated. Also, a warning message
and the range of detected object will be
indicated on the multi function display.
Range of detected object
1) Red: 20 inches (50 cm) or less
Warning message
3) Second braking and warning:
When the system has detected an object,
if the vehicle is further reversed and the
system determines that a collision is
highly likely to occur, a continuous warn-
ing beep will sound and automatic hard
braking will be applied.
Starting and operating/Reverse Automatic Braking System
– CONTINUED –
7-69
