Suffolk C-type - Page 30

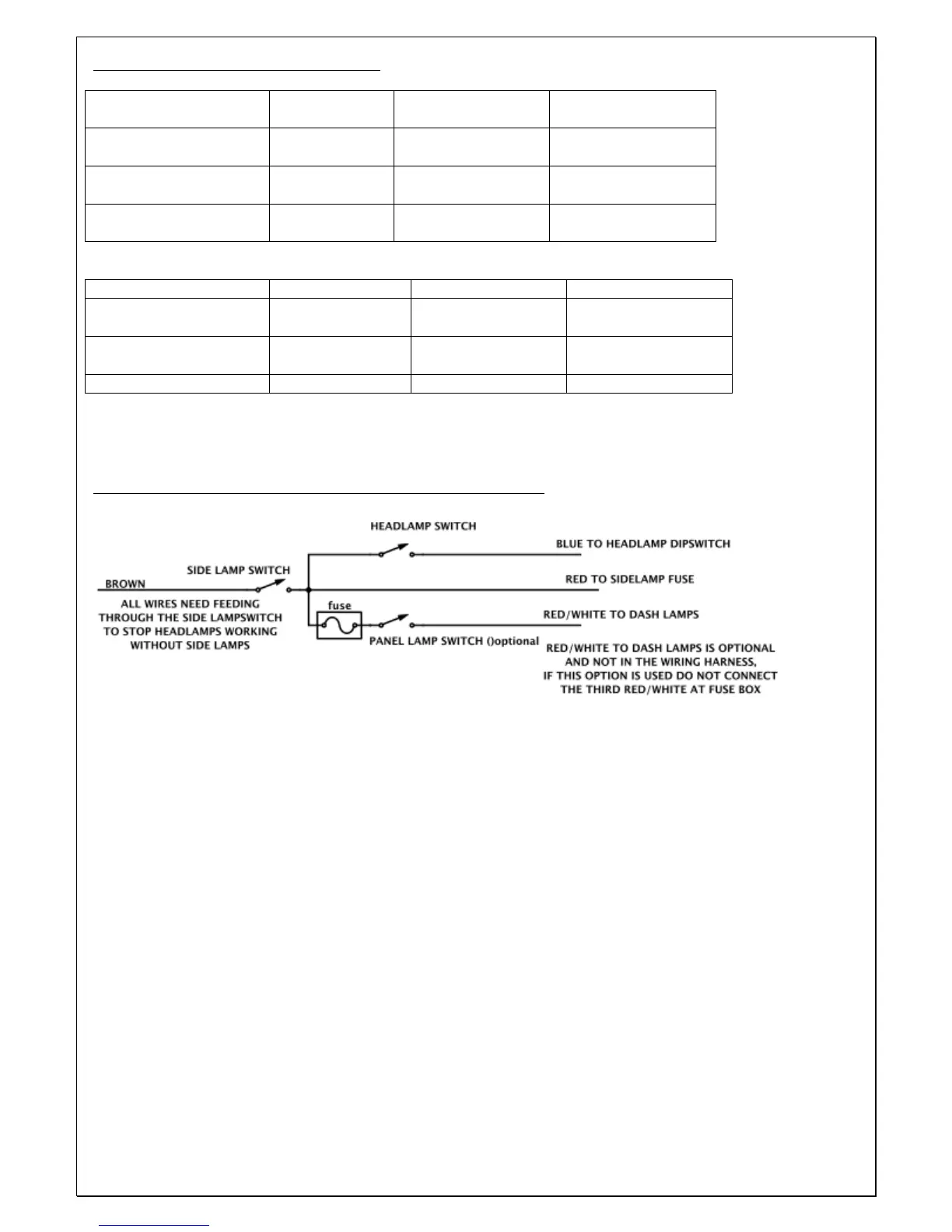

FUSE SIZES AND EXAMPLE LAYOUT
RIGHT MARKER
LAMPS
2x
RED/WHITE
5 AMP
RED
LEFT MARKER
LAMPS
2x
RED/BLACK
5 AMP
LINK TO ABOVE
FUSE
MAIN BEAM LAMPS
3x
BLUE/WHITE
15 AMP
BLUE/BLACK
DIPPED BEAM
LAMPS
2x BLUE/RED
10 AMP
BLUE/ORANGE
IGNITION FEEDS
4x GREEN
10 AMP
WHITE
FUEL PUMP
WHITE/PURPLE
10 AMP
LINK TO ABOVE
FUSE
OVERDRIVE
YELLOW
7.5 AMP
LINK TO ABOVE
FUSE
HORN/MAP LAMP
PURPLE
10 AMP
BROWN
Supplementary head/side/panel lamp switch wiring diagram
