Sumitomo Cyclo BBB4 - Y2 Oil Fill & Drain Procedures; Oil Fill Process

Cyclo® BBB4
36 Operation & Maintenance Manual
Cyclo® BBB4
1

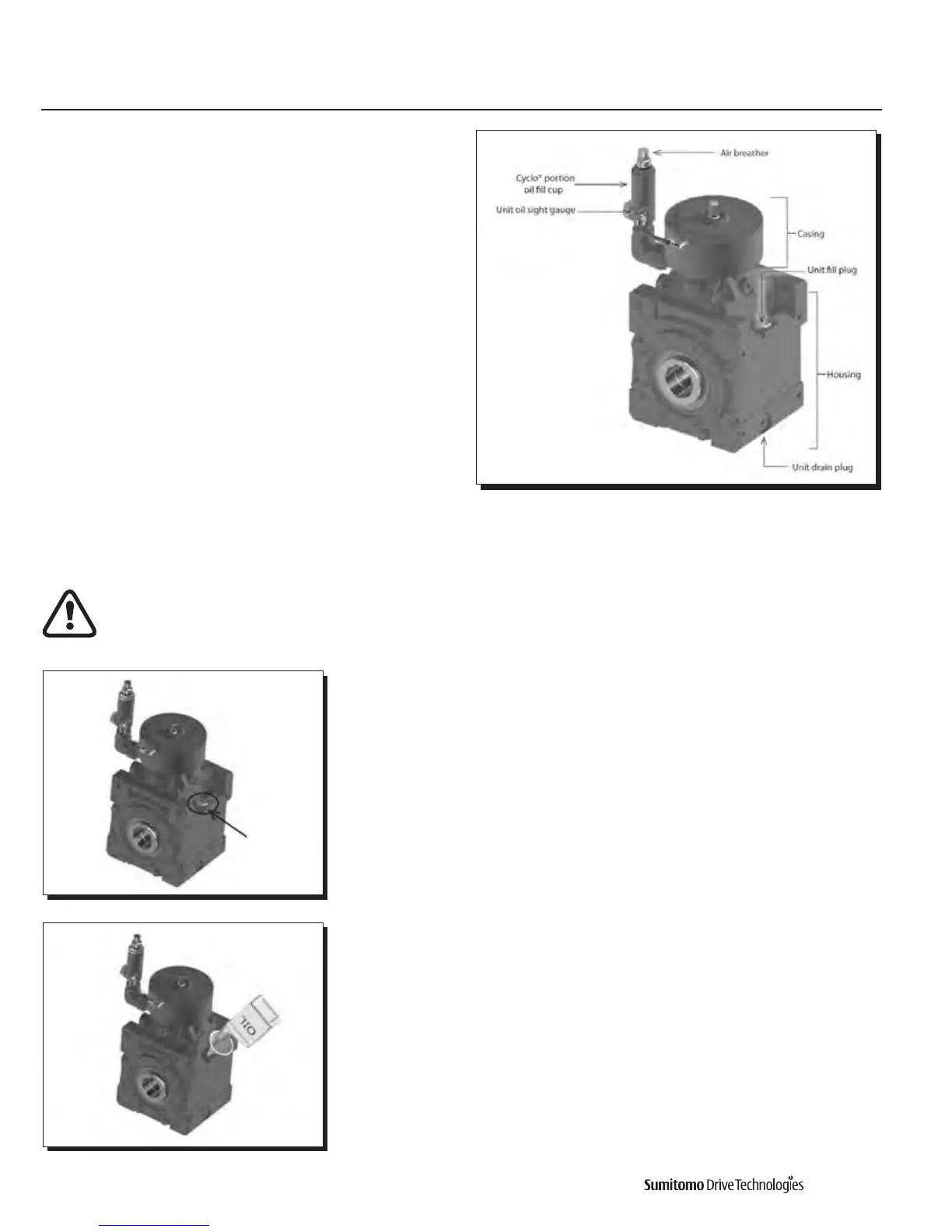

Identify the bevel portion oil fill plug on the bevel gear housing. Carefully remove
the plug and put aside for reinsertion after oil fill is complete.
2
Fill the bevel portion with the appropriate type and grade of oil.
The bevel portion is considered full when the oil level reaches the oil fill port.
Once fill is complete, re-install and tighten the oil plug into the fill port
Y2 Oil Fill & Drain Procedures
Oil Fill Process
Affected Unit Sizes
This document is intended for all Cyclo® Bevel Buddybox® (BBB)
4 series units built in the Y2 mounting (motor up) configuration.
Images contained within the document show a single reduction
input stage, however the process remains the same for double and
triplereductionproductoerings.
Oil Fill Process
CAUTIONARY NOTE:
•UseonlythoselubricatingoilsapprovedbySumitomoDriveTechnologiesforuseintheCyclo®BevelBuddybox®.
•Usetheappropriategradeoflubricatingoilbasedonambientoperatingconditionsoftheapplication.
•RefertotheSumitomoproductcatalogand/orOperating&MaintenancemanualforalistofSumitomoapprovedlubricatingoils.
•Priortobeginningthellprocess,ensuretheUnitDrainPlugisinplaceandadequatelytightened.
Air breather
Cyclo® portion
ll cup
Unit oil sight gauge
ll plug
Unit drain plug
Bevel Portion Fill Plug
Casing
Housing
Fill
Cup
Air
Breather
Air breather
Cyclo® portion
ll cup
Unit oil sight gauge
ll plug
Unit drain plug
Bevel Portion Fill Plug
Casing
Housing
Fill
Cup
Air
Breather
Air breather
Cyclo® portion
ll cup
Unit oil sight gauge
ll plug
Unit drain plug
Bevel Portion Fill Plug
Casing
Housing
Fill
Cup
Air
Breather
