Cyclo® Planetary Reduction Component Parts
Table44.Cyclo®PlanetaryReductionComponentPartNumbers(Ratios11-18:1)
Note: [1] Consult Factory [2] 18:1 ONLY
RingGear(x1)
Sun Gear
(x1)
Washer(x6)
Needles
Input Carrier
Planet Gear
(x3)
Spacer
(x3)
Cyclo®PlanetaryReductionComponentParts(Cyclo®Ratios11-18:1)

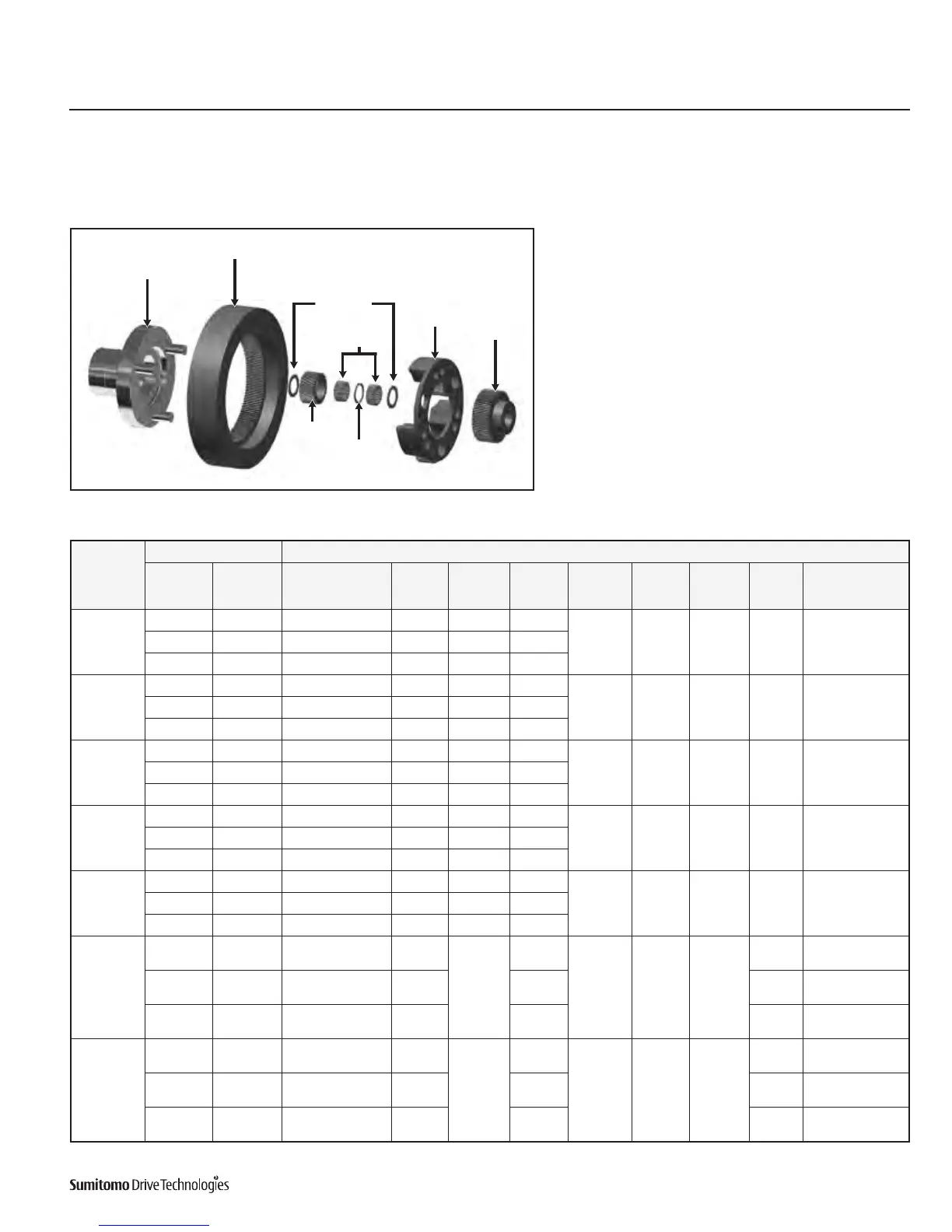

Figure 32. Cyclo® Planetary Reduction Component
Bevel Shaft Pin
Carrier(x1)
Unit Size
ReductionRatio(nominal) Cyclo® Planetary Reduction Part Numbers
Overall
Cyclo®
Planetary
Reduction
Block Set
(gearsandbearings)
Planet
Gear
Ring Gear Sun Gear Needles Spacer Washer
Input
Carrier
Bevel Shaft
Pin Carrier
4A100
4A105
11 3:1 931SD610-003G AN8911G AN8303G AN8910G
- AW5434G - - BL515LG13,14 4:1 931SD610-004G AN8870G AN8871G AN8869G
16,18 5:1 931SD610-005G AN8305G AN8306G AN8304G
4A120, 4A125
4B120, 4B125
11 3:1 931BB612-003G AP8712G CJ584LG AP8711G
AX2806G-3 AX2543G AX2761G CJ244LG
CJ701LG (for 4A)
CJ703LG (for 4B)
13,14 4:1 931BB612-004G AP8706G CJ554LG AP8705G
16,18 5:1 931BB612-005G AP8714G CJ585LG AP8713G
4A140, 4A145
4B140, 4B145
4C140, 4C145
11 3:1 931BB614-003G AP8717G CJ586LG AP8716G
AX2807G-3 AX2763G AX2544G CJ588LG
CJ702LG (for 4A)
CJ704LG (for 4B)
CJ706LG (for 4C)
13,14 4:1 931BB614-004G AP8708G CJ555LG AP8707G
16,18 5:1 931BB614-005G AP8719G CJ587LG AP8718G
4B160, 4B165
4C160, 4C165
11 3:1 931BB616-003G AP8721G CJ589LG AP8720G
AX2808G-3 AX2555G AX2554G CJ591LG
CJ705LG (for 4B)
CJ707LG (for 4C)
13,14 4:1 931BB616-004G AP8710G CJ556LG AP8709G
16,18 5:1 931BB616-005G AP8726G CJ590LG AP8722G
4C170, 4C175
4D170, 4D175
4E170, 4E175
11 3:1 931BB617-003G
AP9278G CJ993LG AP9277G
AX3077G-3 AX3061G AX3060G CJ996LG
CJ938LG (for 4C)
CK009LG (for 4D, 4E)
13,14 4:1 931BB617-004G AP9280G CJ994LG AP9279G
16,18 5:1 931BB617-005G AP9282G CJ995LG AP9281G
4D180, 4D185
4E180, 4E185
4F180, 4F185
11 3:1 931BB618-003G AP9285G
CJ997LG
AP9284G
AX3077G-3 AX3061G AX3060G
CK001LG
CJ961LG (for 4D, 4E)
CJ965LG (for 4F)
13,14 4:1 931BB618-004G AP9287G AP9286G CK002LG
CJ960LG (for 4D, 4E)
CJ966LG (for 4F)
16,18 5:1 931BB618-005G AP9289G AP9288G CK003LG
CJ959LG (for 4D, 4E)
CJ967LG (for 4F)
4E190, 4E195
4F190, 4F195
11 3:1 931BB619-003G AP9292G
CK004LG
AP9291G
AX3077G-3 AX3061G AX3060G
CK007LG
CJ962LG (for 4E)
CJ968LG (for 4F)
13,14 4:1 931BB619-004G AP9294G AP9293G CK006LG
CJ963LG (for 4E)
CJ969LG (for 4F)
16,18 5:1 931BB619-005G AP9296G AP9295G CK008LG
CJ964LG (for 4E)
CJ970LG (for 4F)
