Sumitomo Cyclo BBB4 - U.S. Standard and CSA Approved Motor Brake Wiring

Operation & Maintenance Manual 43
Cyclo® BBB4
Cyclo® BBB4
Motor Wiring, continued
U.S. Standard and CSA Approved Motor Brake Wiring
U.S. Standard and CSA Approved Motor Brake Wiring
The brake portion (if supplied) of the motor may be wired using one of the following these methods:
Models FB-01A through FB-15B/FB-15E

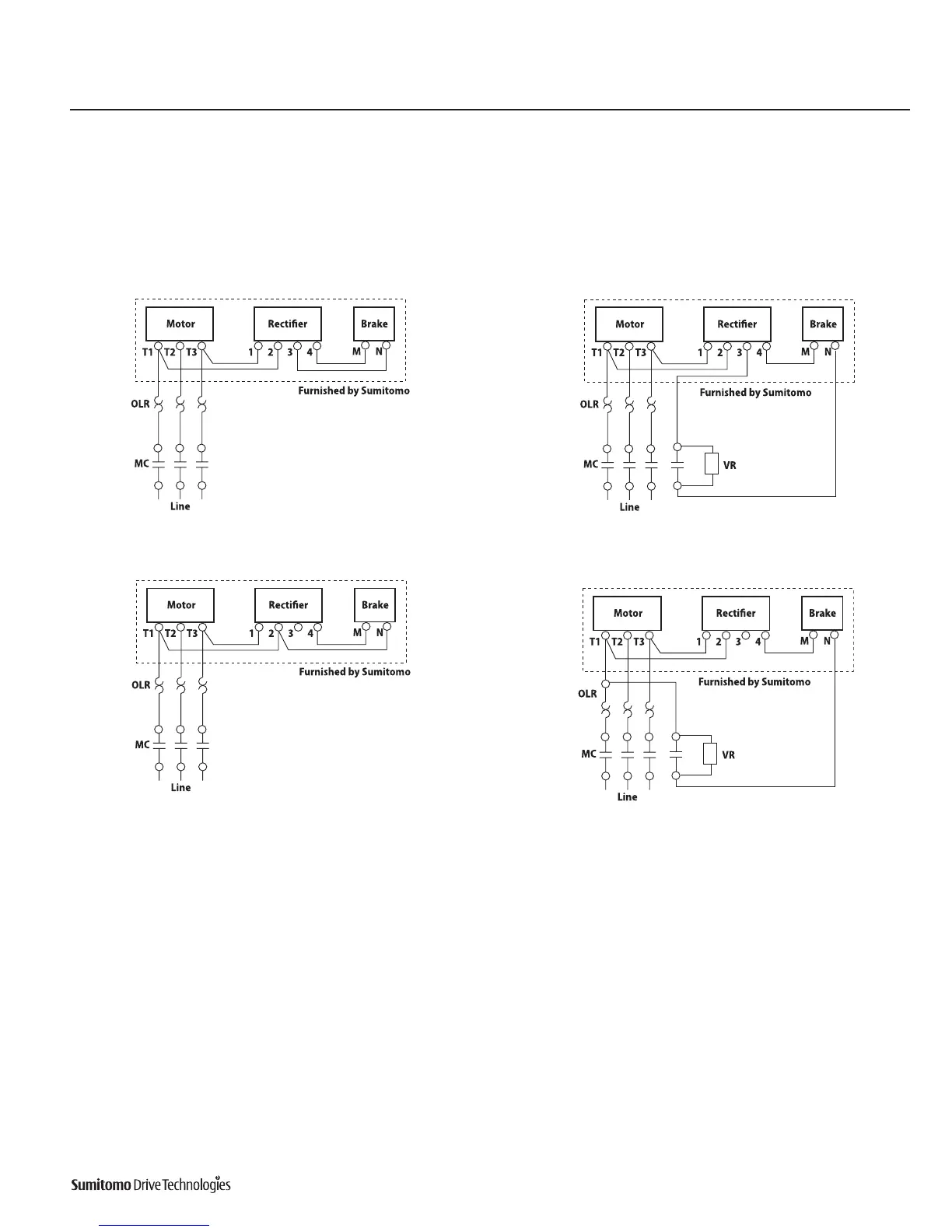

Figure 10. Normal Brake Action, 230V, 575V
Figure 12. Normal Brake Action, 460V
Figure 11. Fast Brake Action, 230V
Figure 13. Fast Brake Action 460V, 575V
MC: Electromagnetic Relay
MCB: Magnetic Circuit Breaker
OLR: Overload or Thermal Relay
VR: Varistor (protective device)
[1]
Note: [1] Refer to Varistor Specifications Table
