OPERATION
1
2/3
4

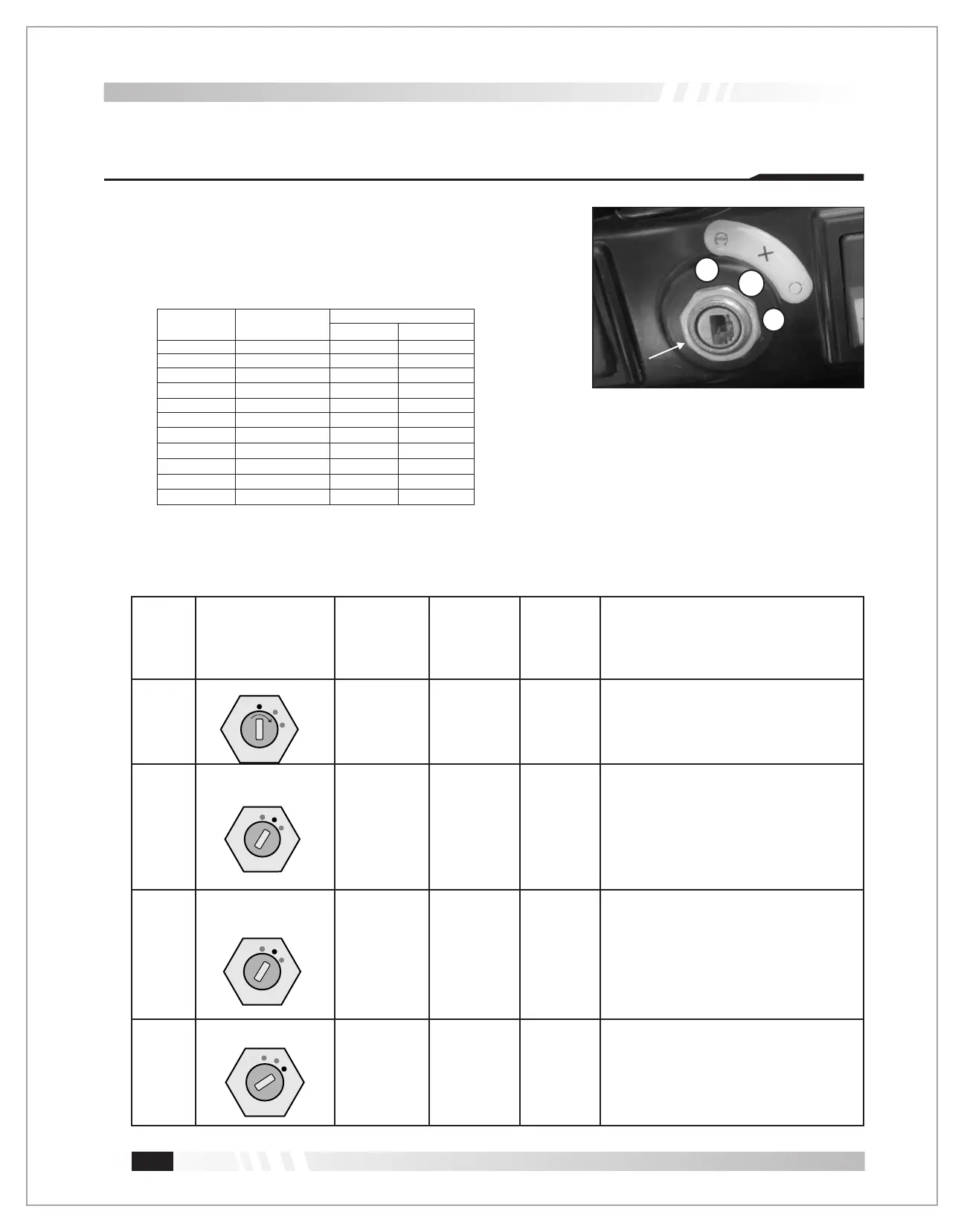

•Glow Plug
•The tractor is equipped with glow plugs. The preheating time
would be determined according to the ambient temp. For
details, see the table below,
32 0 9 12
14 -10 13.5 18
158 70 1.5 3.5
176 80 1.5 3.5
-4 -20 21 27
104 40 2.5 4.5
140 60 2 4
77 25 4 6
•Ambient Temp Ambient Temp Pre-Glow time (In Seconds)
(Deg F) (Deg C) Min Max
50 10 6 9
86 30 3 5
122 50 2 4
•The glow plug indicator would stay on as per above temperature conditions and will go off after the maximum time
(as per above table).
•The glow plug pre-heating and functions works as per below table.
Sr. No.
Starter Switch
position
Glow Plug
Glow plug
Lamp on
cluster
Engine
Remarks
1
OFF
OFF
OFF
2
ON
ON
OFF
Pre Glow time:
This is the time to heat up the cylinder
chamber for easy crank the engine. Glow
plugs working depends upon the ambient
temperature condition. Refer below
mentioned pre glow time
3
ON
OFF
OFF
Safety switch off time:
If the engine is not cranked during the end
of pre glow time, glow controller unit will
allow glow plugs to on further for 12 sec to
keep the combustion chamber in hot
condition until the tractor is cranked.
4
OFF
OFF
ON
Glow plugs and cluster indicator will be
turn off once engine will start
1st position OFF
OFF
ON+HEATER
2nd position ON+HEATER
ON+HEATER
2nd position ON+HEA
TER
3rd position START
40-2
START
