Air Cleaner Maintenance

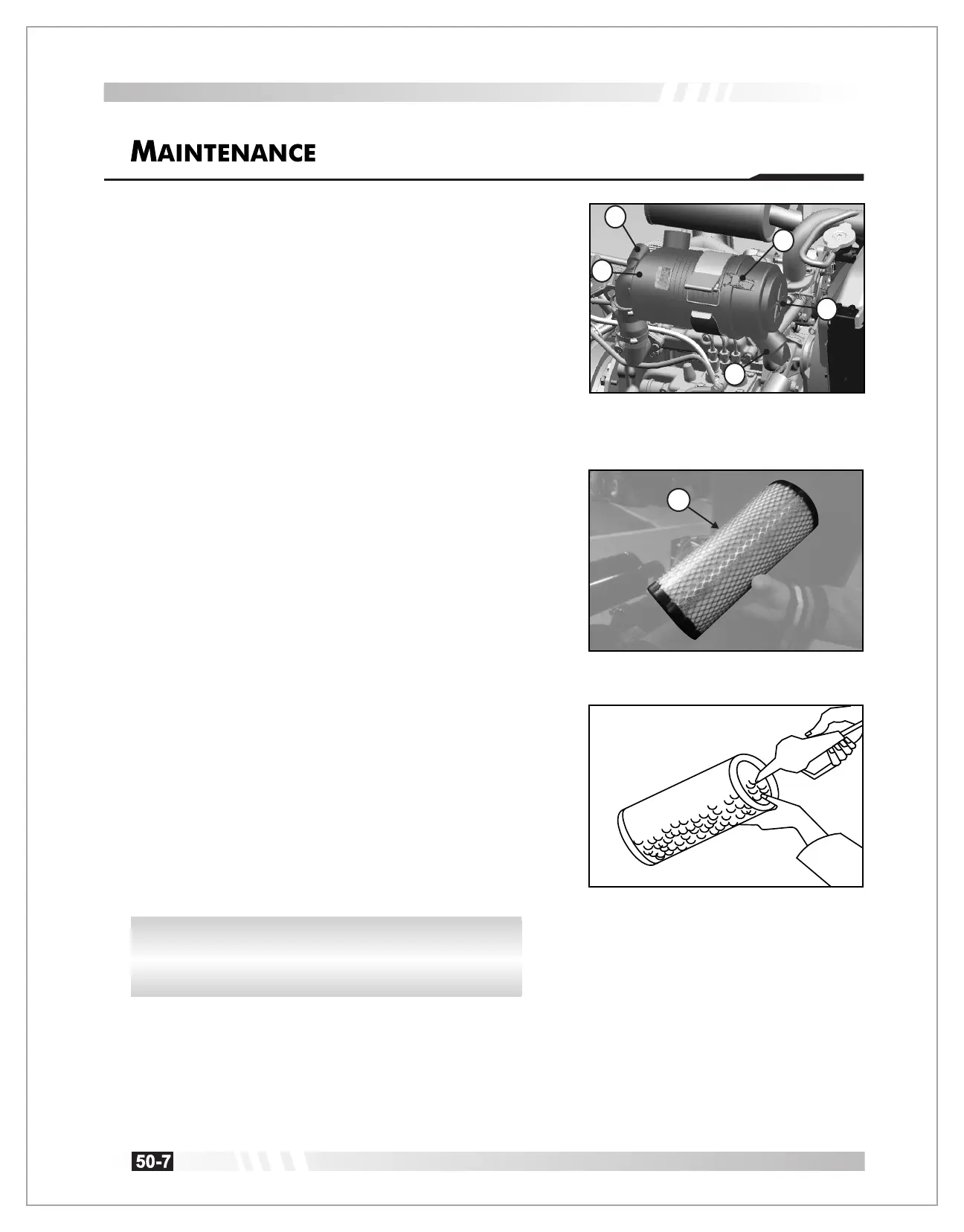

Air Cleaner Components
Discharge the dust deposits and sediments daily by
pressing the rubber valve (4) on the air filter housing (1).
•
After replacing new filter element ensure matching of (◄)
mark on cover with the mark (►) on air filter housing.
•
Clean filter element by blowing air from inside. Maximum
pressure should not exceed 23 P.S.I(1.6 bar).
•
Use clean cloth to wipe sealing areas of element.
•
Ensure proper seating of all rubber rings. Replace the
damaged ones.
•
Ensure proper seating of filter into housing before latching
the cover. Do not use latches on the cover to force the filter
into air cleaner that could cause damage to housing and
will avoid the warranty.
•
Clean the air cleaner element at first 50 hrs & then after
every 250 hrs of operation or whenever the clogged filter
indicator light on the dashboard is illuminated.
Replace air cleaner element after three cleaning
operations or at every 750 hours, whichever is earlier.
(6) Clogging Sensor
(1) Air Filter Housing
(2) Clamp
(3) Cover
(4) Rubber Valve
(5) Air Cleaner Element
Important Instructions :
5
IMPORTANT: NEVER attempt to clean the filter
element with exhaust gas from the engine. NEVER ever
use oil on dry filter. NEVER ever use oil, diesel fuel,
paraffin or solvents to clean the filter element.
1
4
2
3
6
