OPERATION
Information about using implements with power take-off
drive shafts
1. Shut off engine and disengage PTO before attaching
PTO-driven equipment.
3. Rotate PTO shield upward for clearance. With engine off,
turn shaft slightly by hand if necessary to line up splines.
Connect drive line to PTO shaft. Pull out on shaft to be sure
drive line is locked to PTO shaft. Place PTO shield in
downward position.
Before attempting to clean, adjust or lubricate a PTO-
driven machine, three-point linkage, always make sure
the PTO is switched off and stopped, the tractor engine
is shut off and the ignition key is removed.
Turn key off to stop engine.
4. Be sure all shields are in place and in good condition. Never
operate PTO unless master shield is properly installed. With
engine stopped, check integral shields on drive line by
making sure they rotate freely on shaft. Lubricate or repair as
necessary.
5. Check carefully for any interference, make sure three-point
linkage is locked in the upward position if it is not used.
2. Attach implement to tractor before connecting PTO drive
line. Lock three-point linkage in upward position if it is not to
be used.
High-inertia implements do not come to a stand still the
moment the PTO control lever is shifted to the
disengaged position. Do NOT approach the implement
while it is ”coasting down”. Do not work on the
implement until it has stopped.

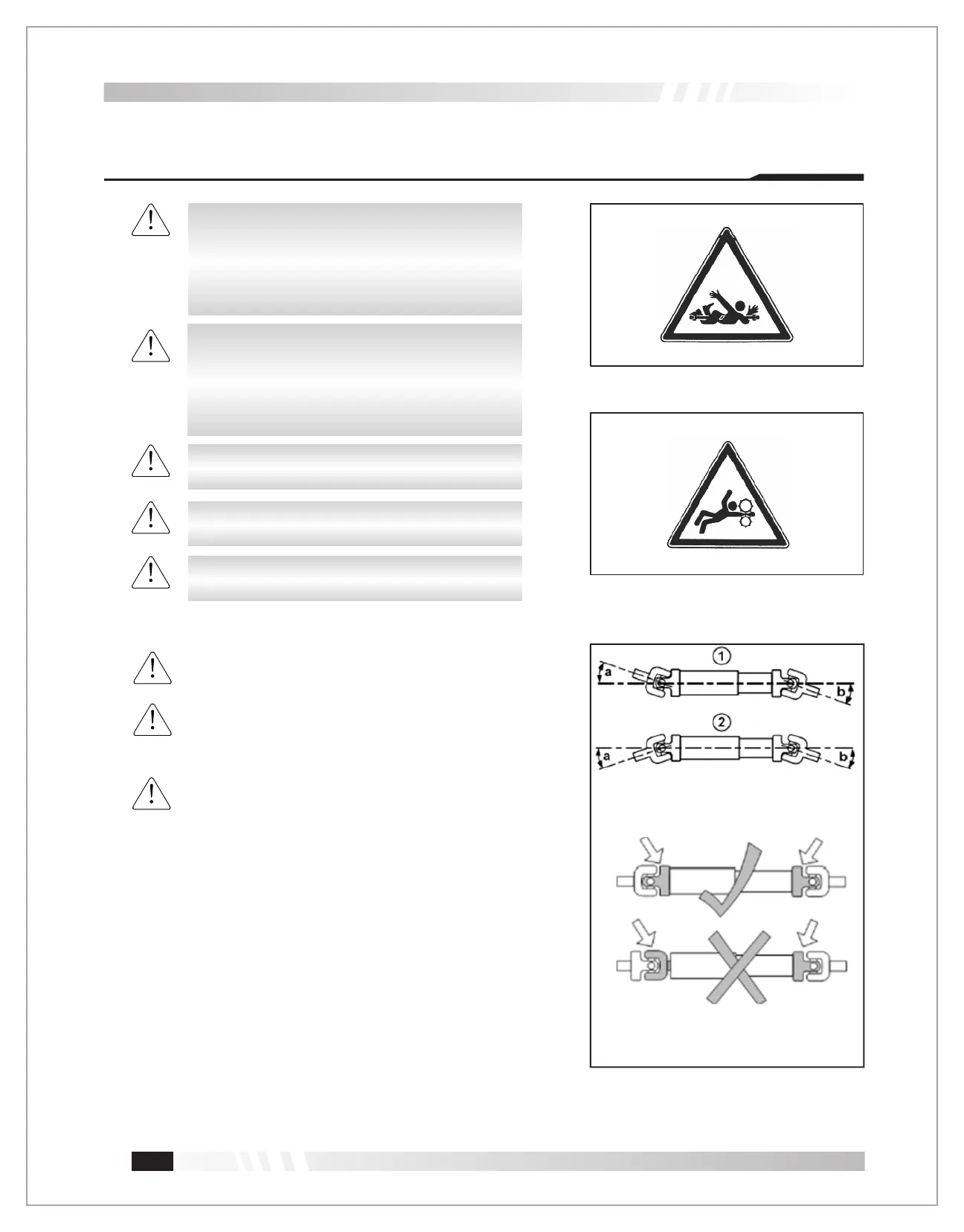

Articulation on Telescoping Driveline
Align Forks Correctly
1 - Z-shaped layout
2 - W-shaped layout
Before using the PTO, the maximum permissible
angle of articulation on the telescoping driveline
must be ascertained. During operation, there
must be no contact between the PTO guard and
the telescoping driveline. This is particularly
important when turning corners.
Always put a guard (B) on the telescoping
driveline and take action to prevent it from turning
with the shaft. Do not operate the telescoping
driveline unless a guard is installed that covers
the PTO shaft completely and does not turn with
the shaft.
WARNING
WARNING
WARNING
WARNING
WARNING
Stay clear from the area of the three-point
linkage when controlling it.
The mounted machinery must be lowered on the
ground before leaving the tractor.
Stay clear from the area between tractor and
trailed vehicle.
Warning: Do not open or remove
safety shield when engine is running.
CAUTION
CAUTION
CAUTION
Warning: Stay Clear of rotating
machine parts.
