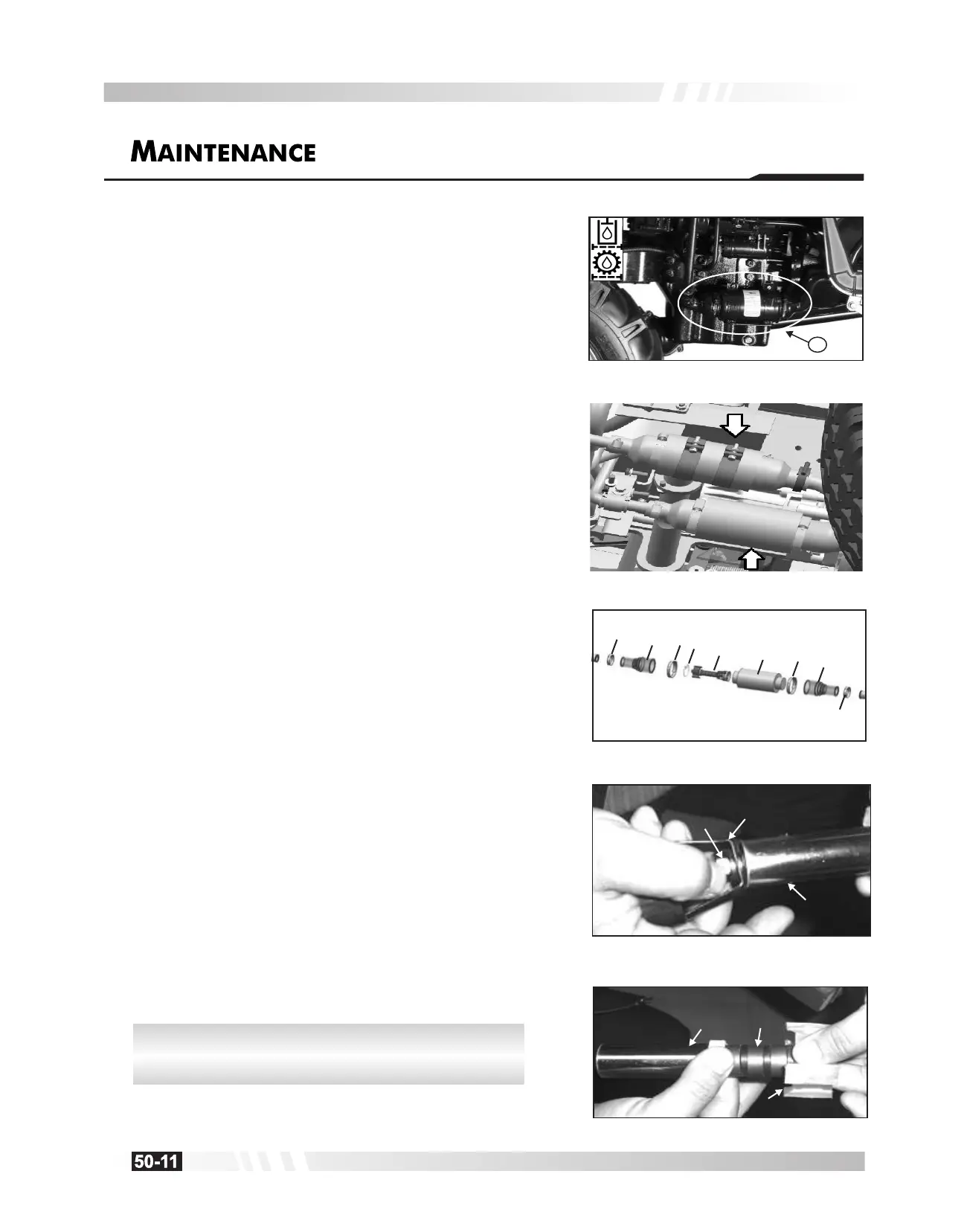

Summit TX25H - Page 78

Hydraulic Suction Strainer
At each service, thoroughly clean suction strainer/strainers
by washing with light oil
Failure to observe this will result in extensive shortening
life of hydraulic system.
Cleaning Procedure :
Replacement: Replace the magnetic strainer at every 750
Hours.
(1) Remove all hose clamps (1).
(8) Fix the hose pipes and tighten the hose clamps.
(2) Separate the hose pipes (2) from strainer assy.
(3) Hold the strainer assembly in left hand & remove the wire
clip (5) & magnetic strainer (4) from the housing (3) with
the help of right hand fingers.
(6) Assemble the supporting cup & tighten the nut.
(4) Unscrew the nut (6) & remove supporting cup (7). After
dis-assembling supporting cup remove the sheath (8)
having ferrous dust by sliding it with the help of plastic
support (10).
(5) Clean the sheath from ferrous dust with the help of soft
cloth and refit the same.
(7) Assemble magnetic strainer in strainer housing and lock
it with the wire clip.
IMPORTANT: Do not dismantle the magnets (9) as these
are assembled in polarity sequence and it should not be
disturbed .
2
1
4
5
1
1
2
1
3
7
6
8
8
9
10
A
For HST transmission, double suction filters are used
which are located left-hand side below the platform.
