4 Sun StorageTek 2500 Series Array Hardware Installation Guide • March 2007

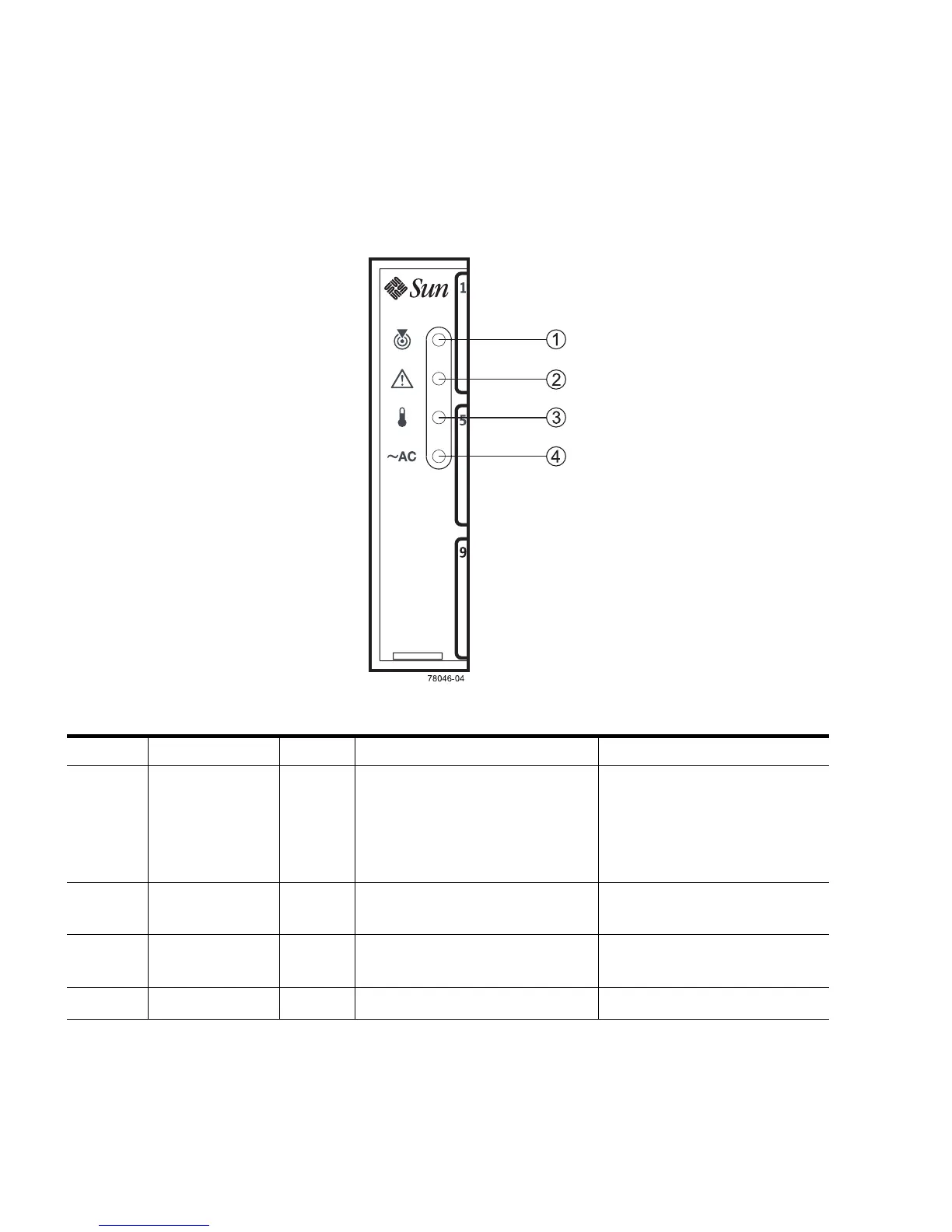

FIGURE 1-3 Location of the LEDs on the Front of the Trays
TABLE 1-1 Description of the LEDs on the Front of the Trays
Location LED Color On Off
1 Locate White Indicates a failed component on
this tray. The locate light is
turned on manually by CAM to
help you find the tray that
requires attention.
Normal condition
2 Service Action
Required (Fault)
Amber A component within the tray
requires attention.
The components in the tray are
operating normally.
3Over
Temperature
Amber The tray temperature has
reached an unsafe level.
The tray temperature is within
operational range.
4 Power Green Power is present. Power is not present.
