50 Sun StorageTek 2500 Series Array Hardware Installation Guide • March 2007

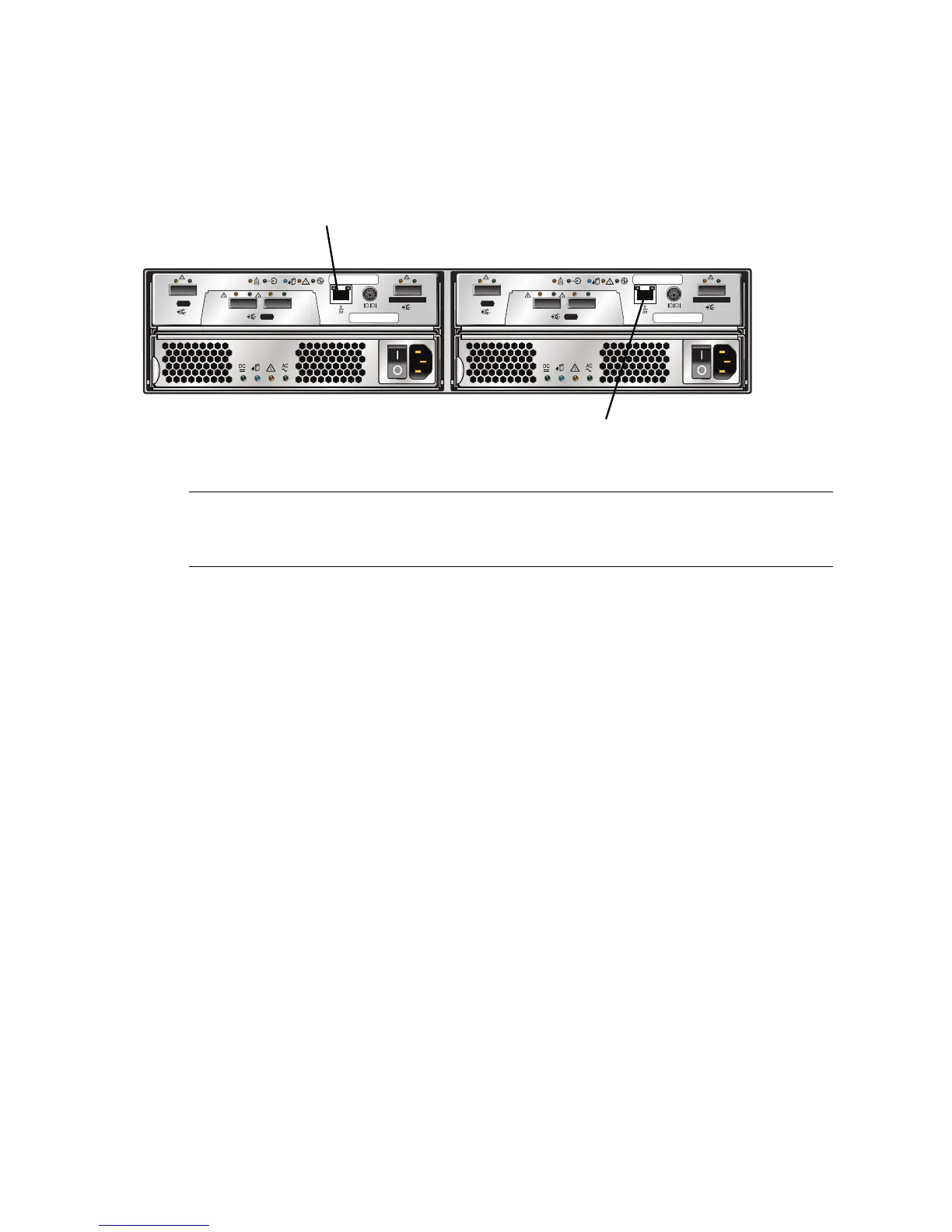

FIGURE 3-1 Ethernet Ports for Controller A and Controller B
Note – Before you begin, ensure that the tworequired Ethernet cables are available.
These requirements are outlined in the StorageTek 2500 Series Array Site Preparation
Guide.
There are three ways to establish a connection between the management host and
Ethernet port 1 of an array controller:
■ “Attaching the Ethernet Ports to the LAN of the Management Host” on page 50
■ “Attaching the Ethernet Ports to the Management Host Using an Ethernet Hub”
on page 51
■ “Attaching the Ethernet Ports Directly to the Management Host With a Cross-
Over Cable” on page 51
Attaching the Ethernet Ports to the LAN of the
Management Host
To attach the Ethernet ports to the local area network (LAN) of the management host:
1. Locate the Ethernet port for Controller A and Controller B at the back of the
controller tray (
FIGURE 3-1).
2. Connect Ethernet cables to the Ethernet ports of each controller.
3. Connect the other end of each Ethernet cable to the LAN on which your
management host resides (preferably on the same subnet).
Link Link
HOST
1
S
A
S
LinkLink LinkLink
HOST
23
S
A
S
Link Link
DRIVE EXPANSION
S
A
S
Link Link
HOST
1
S
A
S
LinkLink LinkLink
HOST
23
S
A
S
Link Link
DRIVE EXPANSION
S
A
S
Controller B
Controller A
Ethernet port
Ethernet port
