Chapter 2 Installing Trays 25

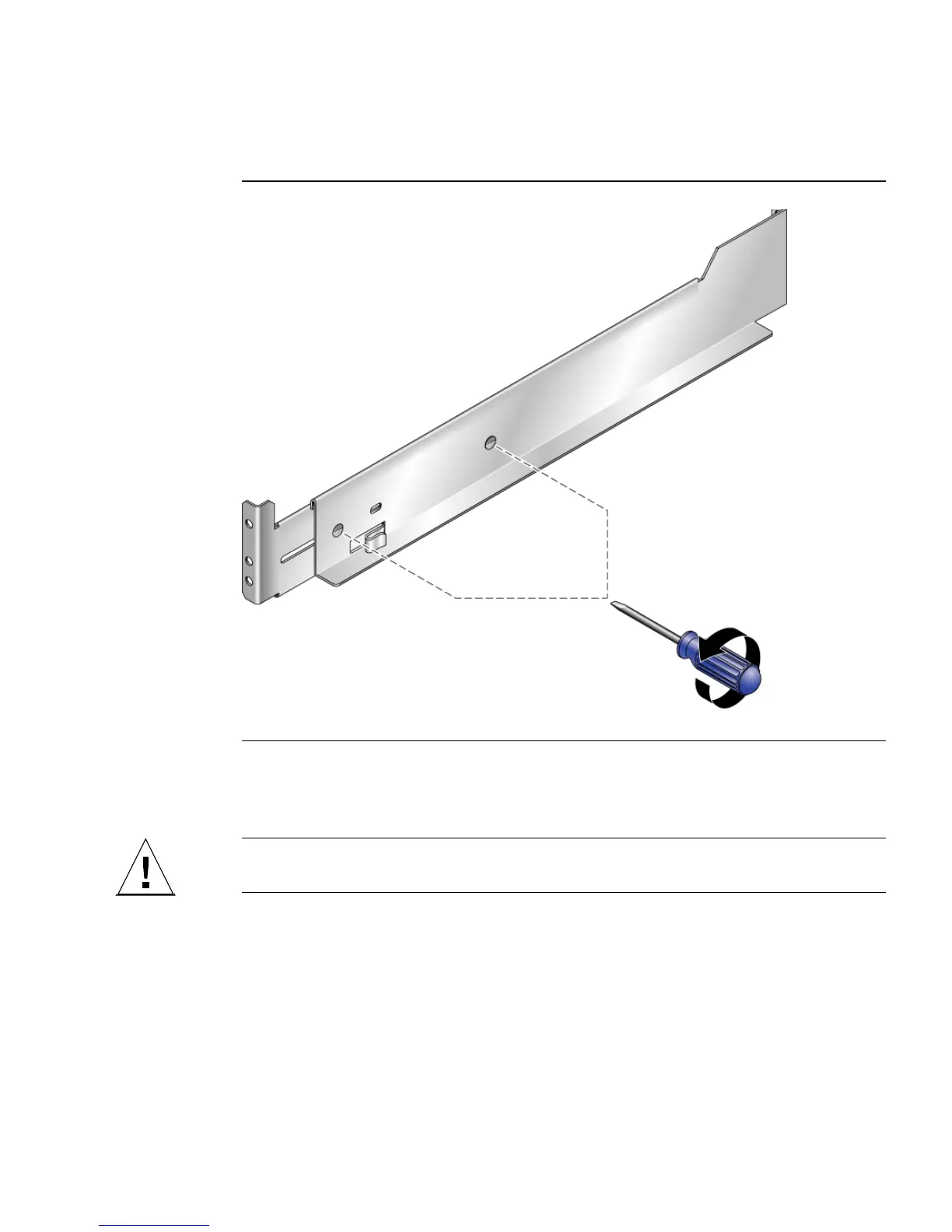

FIGURE 2-1 Loosening the Rail Screws to Adjust the Rail Length
Note – The rails are preconfigured to adjust to cabinet rail depths of between 24
inches (609.6 mm) and 34 inches (863.6 mm).
Preparing the Tray
Caution – Two people are needed to lift and move the tray. Use care to avoid injury.
A traycan weigh up to 54.3 pounds (24.6 kg).
1. Unpack the tray.
2. Check the contents of the box for the following items:
■ Sun StorageTek 2500 Series Arraytrays (controller or expansion)
■ Ship kit for the controller tray
■ One pair left and right end caps (plastic bezels)
■ Four 4 Gbps FC SFPs (2 per FC Controller module)
