4 Mechanical Installation
4.1 Installation Location Selection
Environment Requirements
• The Data Logger has an IP20 protection rating and should only be installed indoors.
• Ambient temperature: –30°C to +60°C. Ambient relative humidity: 0% to 95% (no
condensation). Excessive humidity may cause damage to internal components.
• Pay attention to moisture prevention and ensure that the installation environment is free
from flammable, explosive, and chemically corrosive substances.
Clearance Requirements
• Before installing the Data Logger, ensure that there is sufficient space around the
installation location.
• Ensure that the Data Logger is oriented correctly, with the wiring terminals positioned
at the bottom. This helps prevent dust, particles, and other airborne substances from
entering the equipment over time, which could potentially impact its service life.

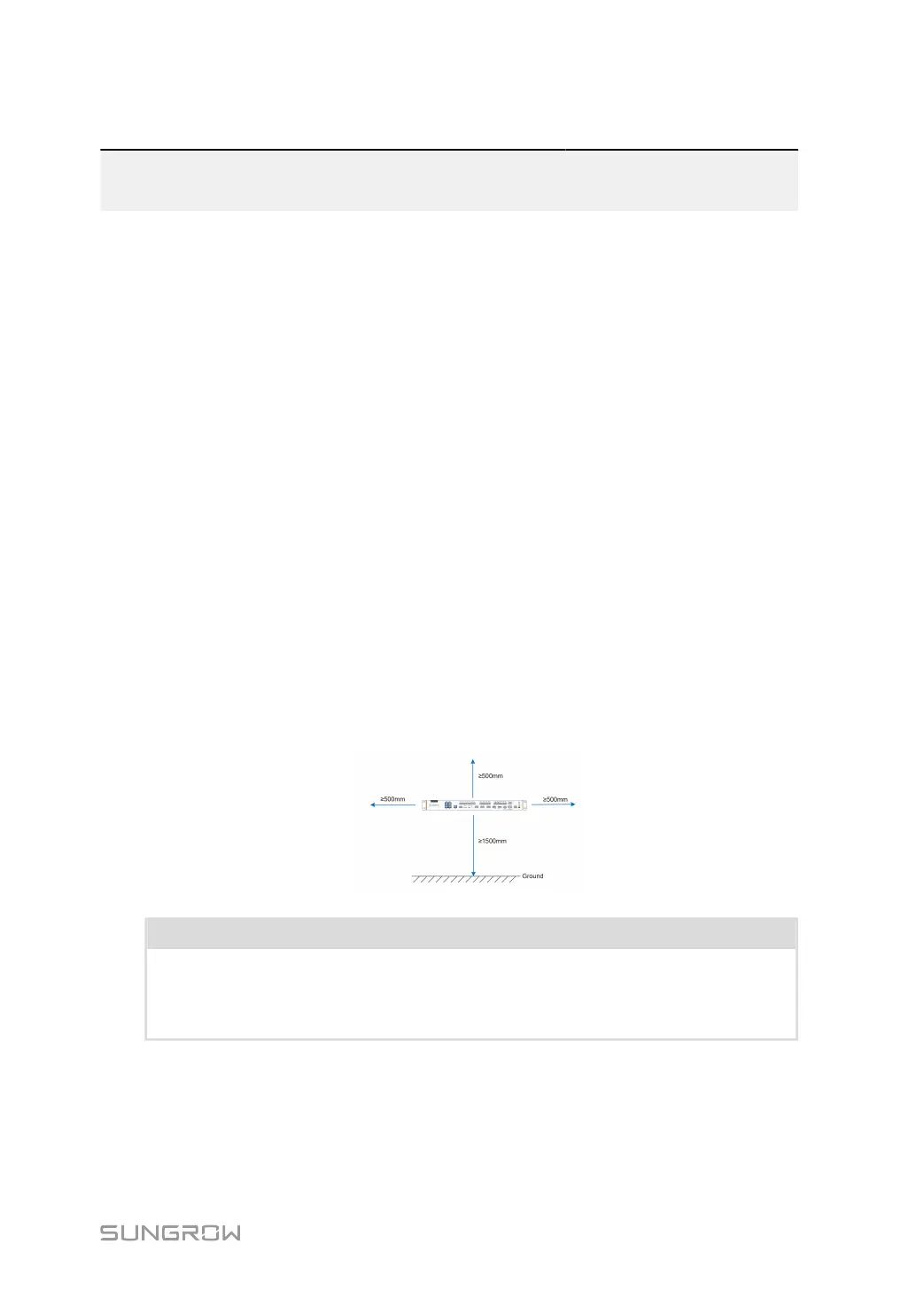

• Keep the Data Logger at least 1,500mm above the ground surface. Reserve a clearance
of at least 500mm for convenient maintenance and servicing. The following figure shows
the required minimum spacing.
NOTICE
When connecting outdoor equipment, such as a Meteo Station, to the Data Logger,
install a Surge Protection Device (SPD) to protect the communication system.
Choose the right SPD based on the site conditions and requirements.
4.2 Installation Tools
Installation tools include, but are not limited to, the following recommended ones. If
necessary, use other auxiliary tools on site.
