User Manual 4 Mechanical Installation
4.3.1 Wall-Mounted Installation
Prerequisites
DANGER
Avoid drilling holes in the utility pipes and/or cables attached to back of the wall!
When holes are punched on the mounting surface, it is recommended to turn
on a vacuuming device and wear goggles and a dust mask to prevent dust from
entering the eyes or being inhaled into the body.
Installed parts
• Marker, not included in the scope of supply
• Hammer drill, not included in the scope of supply
• Bottom supporter, included in the scope of delivery
• Mounting ear, included in the scope of delivery
• Expansion bolt, included in the scope of delivery
• Tapping screw, included in the scope of delivery
• Screwdriver, not included in the scope of delivery

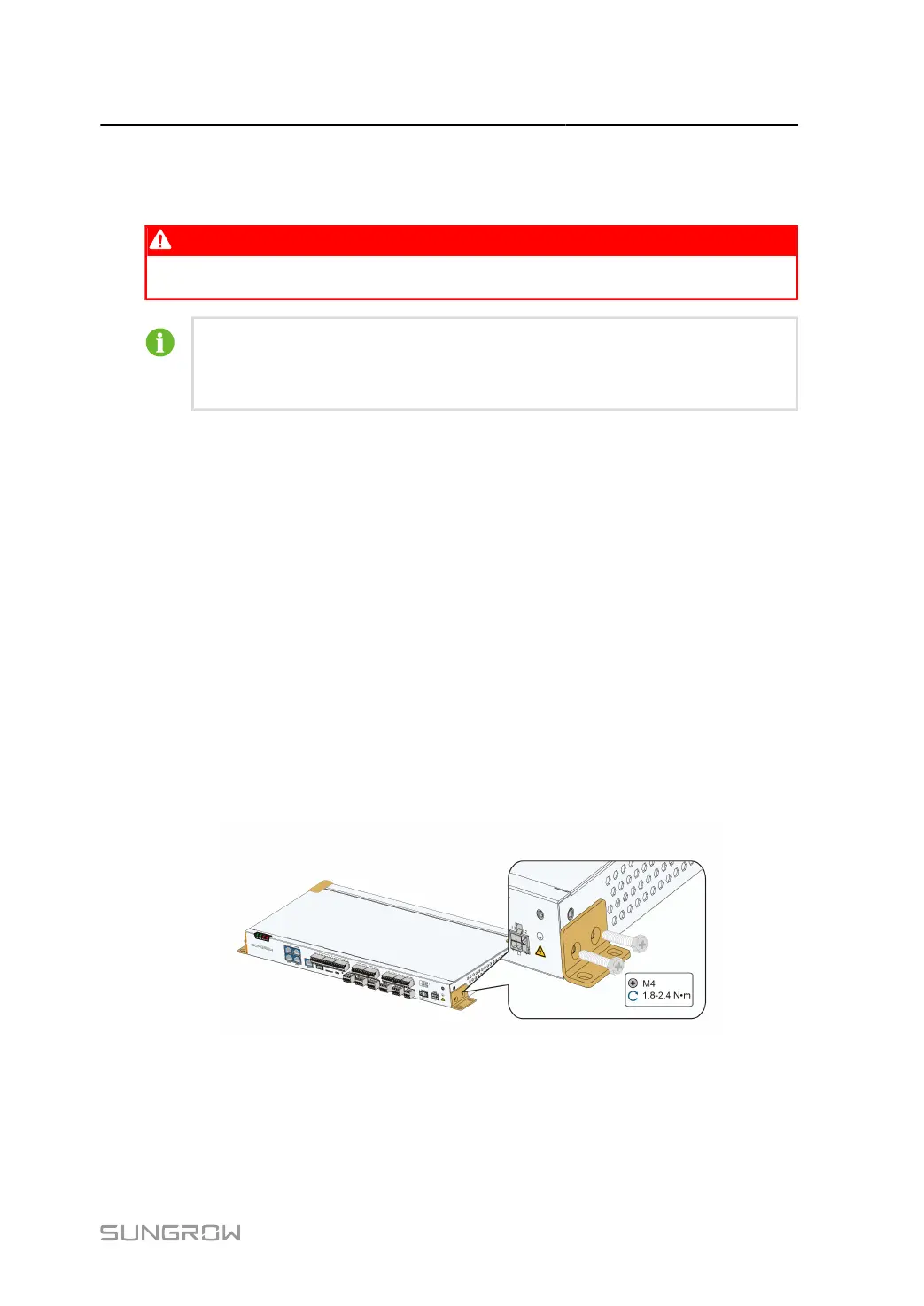

Install Mounting Ears and Bottom Supporters
Anchor the mounting ears and bottom supporters to the Data Logger with supplied M4x8
cross recessed countersunk head screws. The fastening torque is 1.8-2.4N·m, and the
anchoring method is as follows:
15
To Next Page
