User Manual 4 Mechanical Installation
• 1U standard rack, not included in the scope of delivery
• Screwdriver, not included in the scope of delivery
• Screw, not included in the scope of delivery
• Nut, not included in the scope of delivery

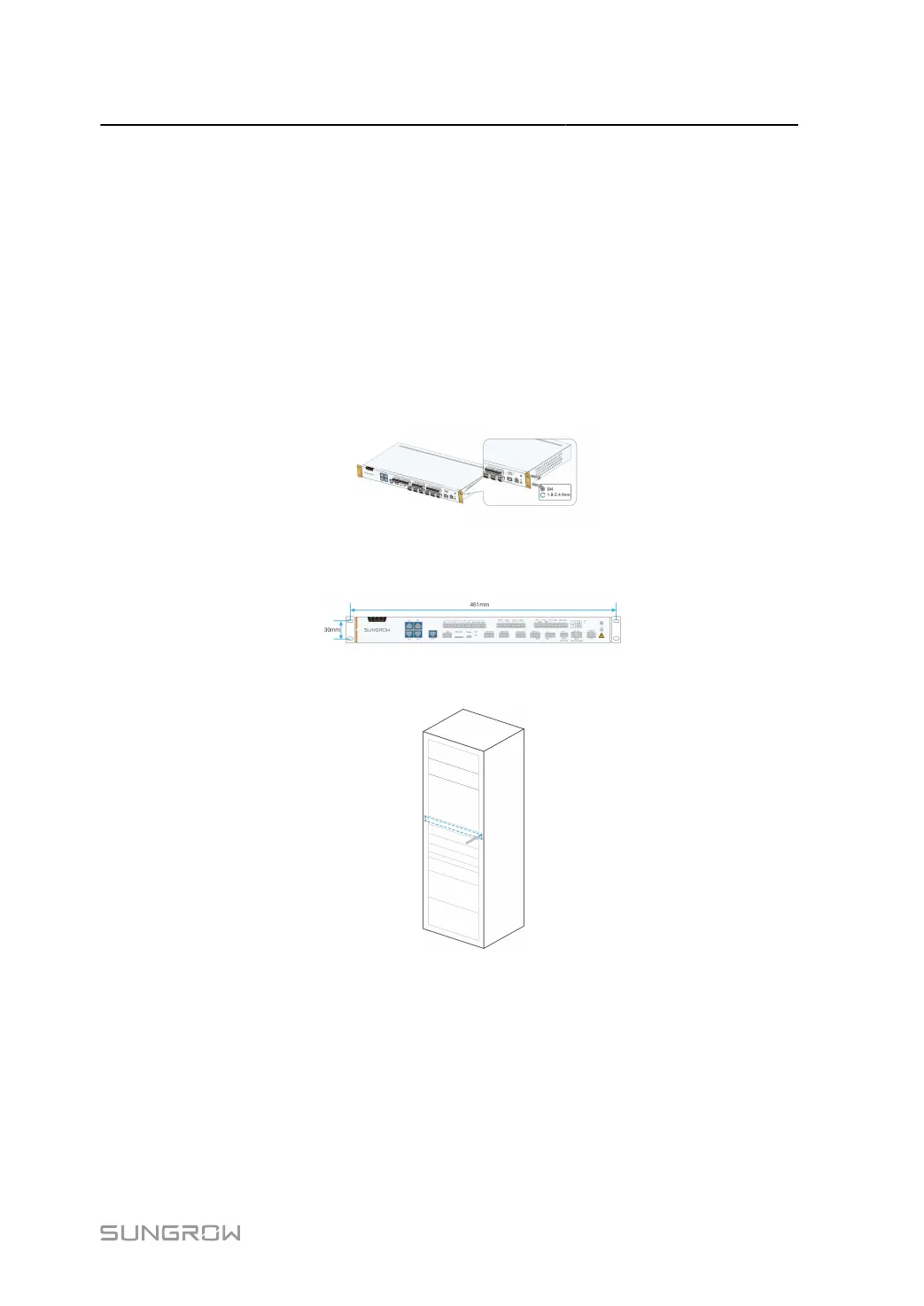

Install mounting ears
Anchor the mounting ears to the Data Logger with supplied M4x8 cross recessed
countersunk head screws. The fastening torque is 1.8-2.4N·m, and the anchoring method is
as follows:
step 1 Mark positions on the rack according to dimensions of the Data Logger.
step 2
Drill holes on the rack with a hammer drill of φ6mm.
